HPR1 Series
Manufacturer: Murata Power Solutions Inc.
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Type | Efficiency | Mounting Type | Voltage - Output 1 | Number of Outputs | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Power Solutions Inc. | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 13.2 V | 150 mA | 10.8 V | ITE (Commercial) | 100 °C | -40 °C | 7-SIP Module 5 Leads | Isolated Module | 69 % | Through Hole | 5 V | 1 | ||||
 Murata Power Solutions Inc. | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 1000 V | 26.4 V | 21.6 V | ITE (Commercial) | 65 °C | -25 °C | 7-SIP Module 5 Leads | Isolated Module | 72 % | Through Hole | 15 V | 2 | 34 mA | -15 V | |||
 Murata Power Solutions Inc. | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 16.5 V | 150 mA | 13.5 V | ITE (Commercial) | 100 °C | -40 °C | 7-SIP Module 5 Leads | Isolated Module | 69 % | Through Hole | 5 V | 1 | ||||
 Murata Power Solutions Inc. | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 5.5 V | 50 mA | 4.5 V | ITE (Commercial) | 85 °C | -25 °C | 6-SIP Module 5 Leads | Isolated Module | 71 % | Through Hole | 15 V | 1 | ||||
 Murata Power Solutions Inc. | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 13.2 V | 10.8 V | ITE (Commercial) | 100 °C | -40 °C | 7-SIP Module 5 Leads | Isolated Module | 74 % | Through Hole | 12 V | 2 | -12 V | 30 mA | 30 mA | ||

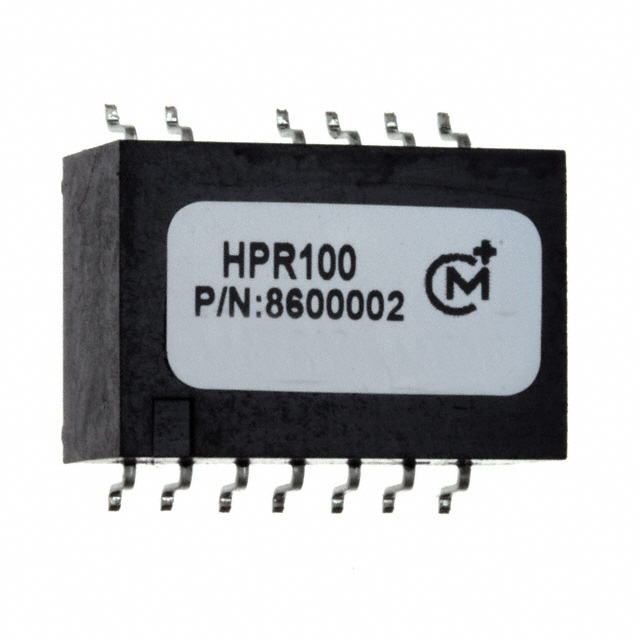

 Murata Power Solutions Inc. | 20.1 mm | 13.5 mm | 0.38 in | 0.79 in | 9.7 mm | 0.53 in | 750 V | 5.5 V | 150 mA | 4.5 V | ITE (Commercial) | 100 °C | -40 °C | 14-SMD Module | Isolated Module | 69 % | Surface Mount | 5 V | 1 | ||||
 Murata Power Solutions Inc. | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 1000 V | 5.5 V | 200 mA | 4.5 V | ITE (Commercial) | 65 °C | -25 °C | 7-SIP Module 5 Leads | Isolated Module | 68 % | Through Hole | 5 V | 1 | ||||
 Murata Power Solutions Inc. | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 5.5 V | 4.5 V | ITE (Commercial) | 100 °C | -40 °C | 7-SIP Module 5 Leads | Isolated Module | 68 % | Through Hole | 12 V | 2 | -12 V | 30 mA | 30 mA |
