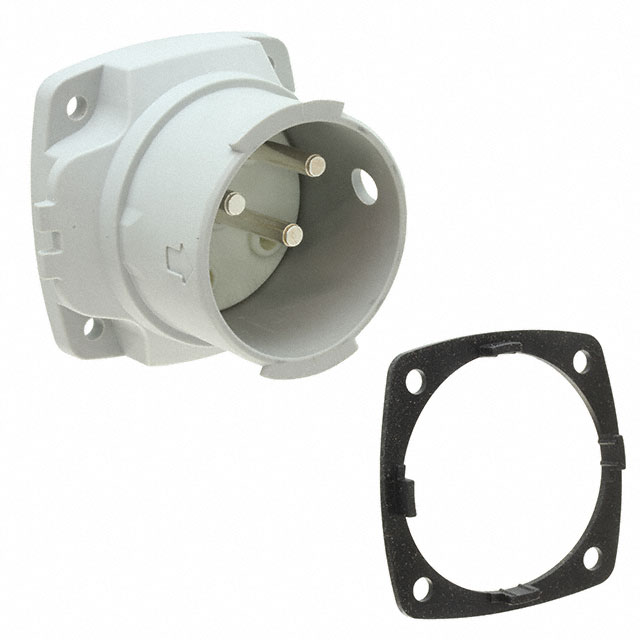

112219 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT FMALE 3POS SCREW
| Part | Mounting Feature | Connector Type | Ingress Protection | Features | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Termination | Voltage Rating | Orientation | Mounting Type | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Flange | Receptacle Female Sockets | IP69K - Dust Tight High Temp Water Jets Waterproof | Cap (Cover) | 2 | 3 | 1 | Screw | 277 VAC/DC | 4 | Panel Mount | 70 ° | 30 A | -25 °C | 60 °C | Push-Twist | |
 Molex | Flange | Male Pins Plug | IP69K - Dust Tight High Temp Water Jets Waterproof | Screw | 14 | Panel Mount | 70 ° | 30 A | -25 °C | 60 °C | Push-Twist | 5 | |||||
 Molex | Flange | Receptacle Female Sockets | IP69K - Dust Tight High Temp Water Jets Waterproof | Cap (Cover) | 2 | 3 | 1 | Screw | 208 VAC | 16 | Panel Mount | 70 ° | 30 A | -25 °C | 60 °C | Push-Twist | |
 Molex | Flange | Receptacle Female Sockets | IP69K - Dust Tight High Temp Water Jets Waterproof | Cap (Cover) | Screw | 14 | 30 A | -40 °C | 60 °C | Push-Twist | 5 | ||||||
 Molex | Flange | Male Pins Plug | IP69K - Dust Tight High Temp Water Jets Waterproof | 2 | 3 | 1 | Screw | 480 VAC | 4 | 30 A | -40 °C | 60 °C | Push-Twist | ||||
 Molex | Flange | Male Pins Plug | IP69K - Dust Tight High Temp Water Jets Waterproof | 2 | 3 | 1 | Screw | 480 VAC | 4 | Panel Mount | 70 ° | 30 A | -25 °C | 60 °C | Push-Twist | ||
 Molex | Receptacle Female Sockets | IP69K - Dust Tight High Temp Water Jets Waterproof | Backshell Cap (Cover) | 2 | 3 | 1 | Screw | 208 VAC | 16 | Free Hanging (In-Line) | 30 A | -25 °C | 60 °C | Push-Twist | |||
 Molex | Male Pins Plug | IP69K - Dust Tight High Temp Water Jets Waterproof | Backshell Dust Cap | Screw | 4 | Free Hanging (In-Line) | 30 A | -25 °C | 60 °C | Push-Twist | 5 | ||||||
 Molex | Flange | Receptacle Female Sockets | IP69K - Dust Tight High Temp Water Jets Waterproof | Cap (Cover) | 2 | 3 | 1 | Screw | 125 VAC | 7 | 30 A | -40 °C | 60 °C | Push-Twist | |||
 Molex | Flange | Male Pins Plug | IP69K - Dust Tight High Temp Water Jets Waterproof | Screw | 16 | 30 A | -40 °C | 60 °C | Push-Twist | 5 |
