MC-07-116 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER PIEZO 35.81MM PNL MNT
| Part | Input Type | Sound Pressure Level (SPL) | Termination | Termination | Termination | Port Location | Frequency | Voltage Range [Min] | Voltage Range [Max] | Approval Agency | Current - Supply [Min] | Current - Supply [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Operating Mode | Ingress Protection | Size / Dimension [diameter] | Size / Dimension [diameter] | Technology | Driver Circuitry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

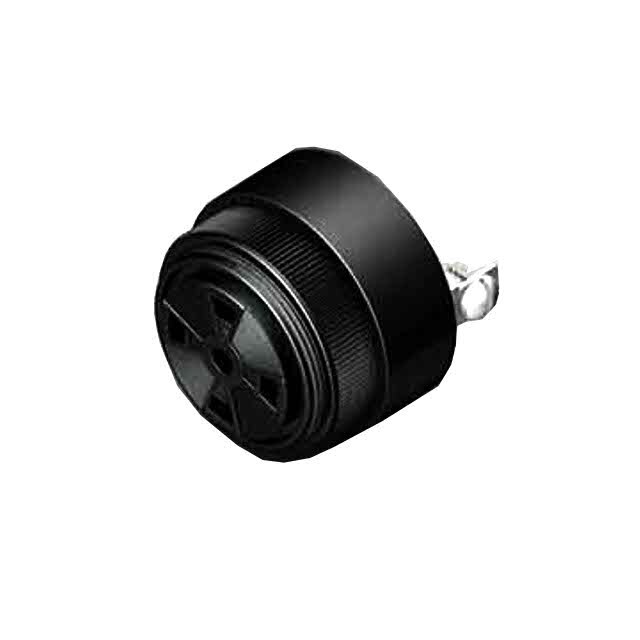

 Floyd Bell Inc | DC | 93 dB | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Top | 2.9 kHz | 3 V | 16 V | UL UR | 3 mA | 20 mA | 0.99 in | 25.15 mm | Panel Mount | Single Tone | IP68 - Dust Tight Waterproof | 1.41 in | 35.81 mm | Piezo | Indicator Internally Driven |

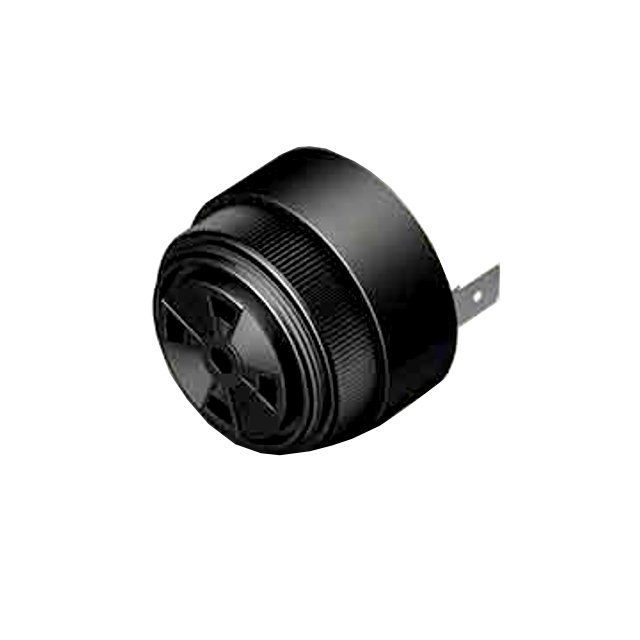

 Floyd Bell Inc | DC | 93 dB | 0.25 " | Quick Connect Tab | 6.35 mm | Top | 2.9 kHz | 3 V | 16 V | UL UR | 3 mA | 20 mA | 0.99 in | 25.15 mm | Panel Mount | Single Tone | IP68 - Dust Tight Waterproof | 1.41 in | 35.81 mm | Piezo | Indicator Internally Driven |

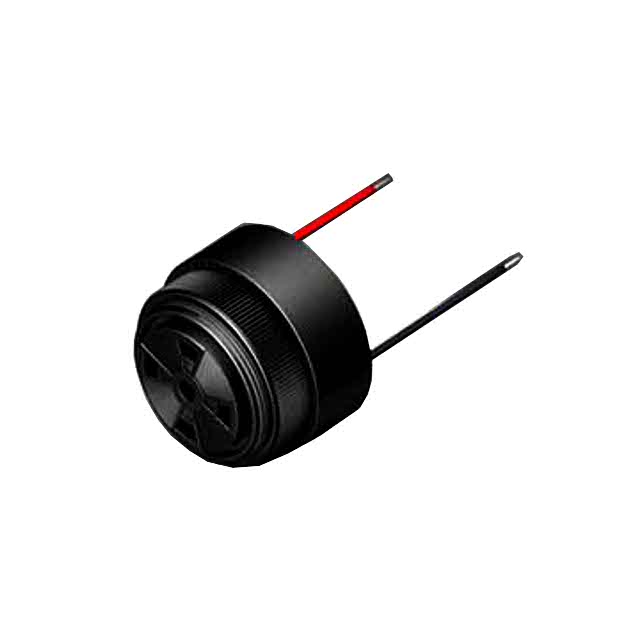

 Floyd Bell Inc | DC | 93 dB | Wire Leads | Top | 2.9 kHz | 3 V | 16 V | UL UR | 3 mA | 20 mA | 0.99 in | 25.15 mm | Panel Mount | Single Tone | IP68 - Dust Tight Waterproof | 1.41 in | 35.81 mm | Piezo | Indicator Internally Driven |
