TR9CI3750 Series

Catalog

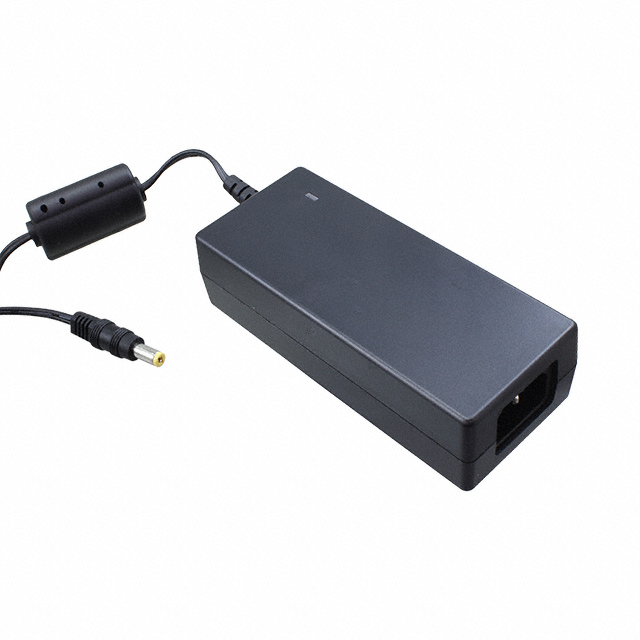

AC/DC DESKTOP ADAPTER 24V 90W

Part	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [x]	Output Connector [diameter]	Output Connector	Input Connector	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Form	Region Utilized	Standard Number	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	No Load Power Consumption	Approval Agency	Cord Length	Cord Length	Efficiency	Power (Watts)	Polarization	Output Connector [z]
GlobTek, Inc. TR9CI3750CCP-IM(R6B)	24 V	264 VAC	90 VAC	11 mm	2.1 mm 5.5 mm	Barrel Plug	IEC 320-C14	Household Appliances ITE (Commercial) Medical	34 mm	1.34 "	5.88 "	149.3 mm	2.47 "	62.8 mm	Desktop (Class I)	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Cord (Sold Separately)	50 °C	0 °C	3.75 A	150 mW	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	1.2 m	47.2 in	Level VI	90 W	Positive Center

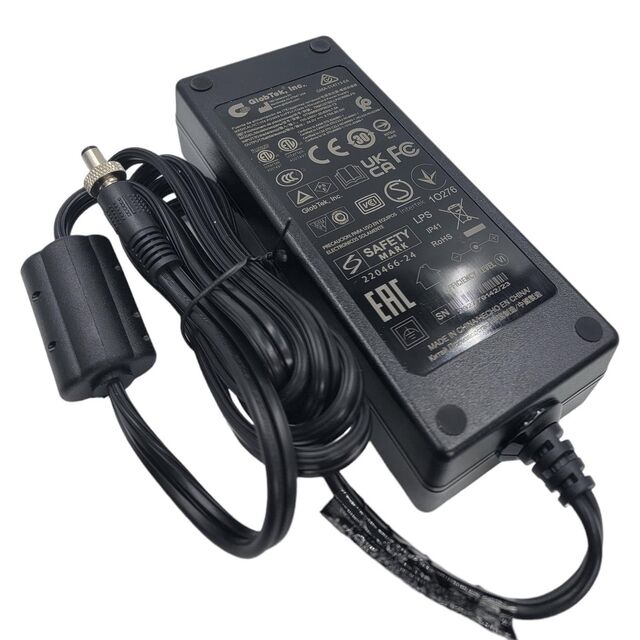

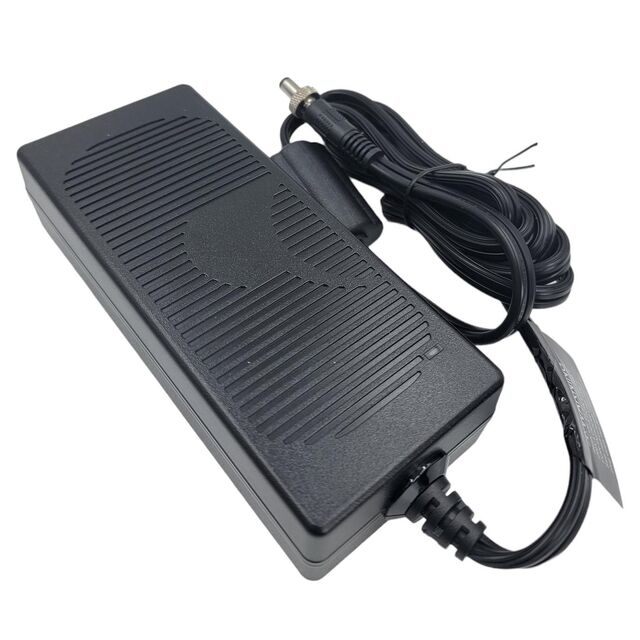

GlobTek, Inc. TR9CI3750LLP4CR6BLPS	24 V	264 VAC	90 VAC		2.5 mm 5.5 mm	Barrel Plug	IEC 320-C14	Household Appliances ITE (Commercial) Medical	34 mm	1.34 "	5.88 "	149.3 mm	2.47 "	62.8 mm	Desktop (Class I)	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Cord (Sold Separately)	50 °C	0 °C	3.75 A	150 mW	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	1.53 m	60.2 in	CoC Tier 2 Level VI	90 W	Positive Center	13.8 mm
