71701 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

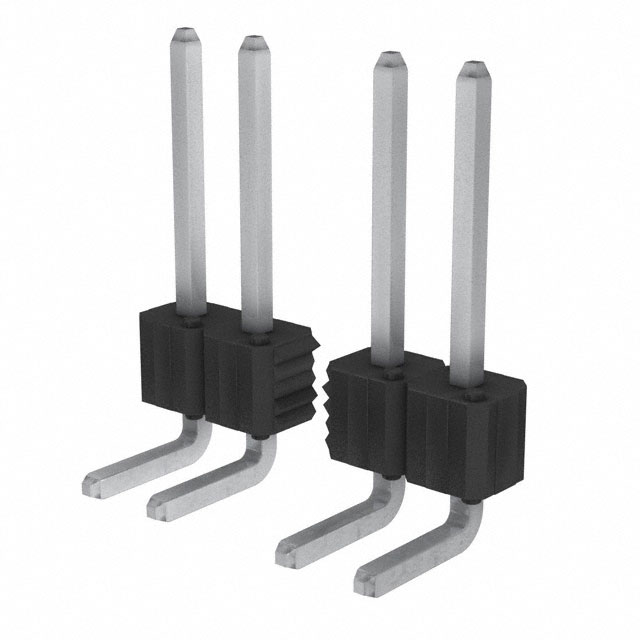

CONN HEADER R/A 8POS 2.54MM
| Part | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Type | Contact Finish - Post | Current Rating (Amps) | Number of Rows | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Material Flammability Rating | Termination | Contact Material | Fastening Type | Insulation Height [z] | Insulation Height [z] | Contact Length - Mating [x] | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Unshrouded | 125 °C | -65 ░C | Black | 8 | 2.54 çm | 100 çin | Square | 0.1 in | 2.54 mm | All | Male Pin | Tin | 3 A | 1 | Header | 0.12 in | 3.05 mm | Through Hole Right Angle | UL94 V-0 | Solder | Phosphor Bronze | Push-Pull | 0.095 in | 2.41 mm | 0.318 " | 8.08 mm |
