18 Series

Catalog

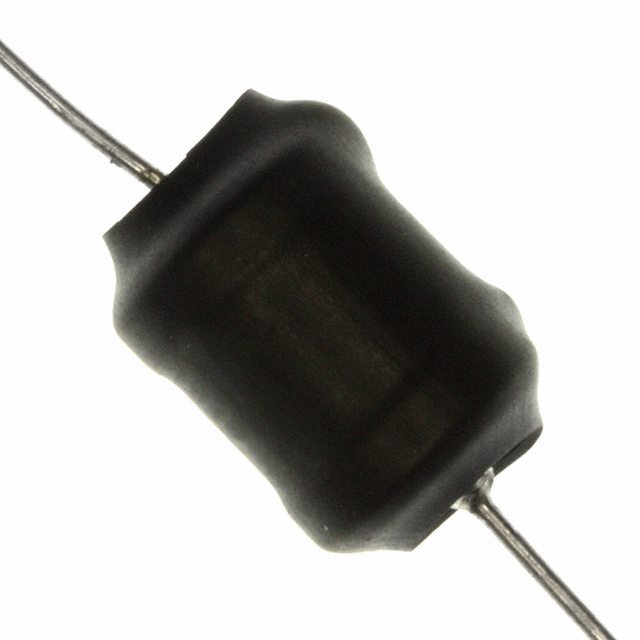

FIXED IND 33UH 2A 40 MOHM TH

Part	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	Tolerance	Shielding	Operating Temperature [Max]	Inductance Frequency - Test	DC Resistance (DCR)	Inductance	Package / Case	Size / Dimension [z]	Size / Dimension [diameter]	Current Rating (Amps)	Type	Mounting Type	DC Resistance (DCR) [Max]	Q @ Freq	Q @ Freq [custom]	Q @ Freq [custom]
Murata Electronics 18333C	11.5 MHz	48	500 kHz	10 %	Unshielded	70 °C	1 kHz	40 mOhm	33 µH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	2 A	Wirewound	Through Hole
Murata Electronics 18154C	4.4 MHz			10 %	Unshielded	70 °C	1 kHz		150 µH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	1.1 A	Wirewound	Through Hole	165 mOhm	47 100 kHz
Murata Electronics 18685C	600 kHz			10 %	Unshielded	70 °C	1 kHz			Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	150 mA	Wirewound	Through Hole		144
Murata Electronics 18103C	19 MHz			10 %	Unshielded	70 °C	500 kHz		10 µH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	3.45 A	Wirewound	Through Hole	15 mOhm	64
Murata Electronics 18684C	2 MHz			10 %	Unshielded	70 °C	1 kHz		680 µH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	0.53 A	Wirewound	Through Hole	630 mOhm	55 100 kHz
Murata Electronics 18223C	11.8 MHz	59	500 kHz	10 %	Unshielded	70 °C	500 kHz		22 µH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	2.42 A	Wirewound	Through Hole	25 mOhm
Murata Electronics 18155C	1.3 MHz	107		10 %	Unshielded	70 °C	1 kHz		1.5 mH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	0.33 A	Wirewound	Through Hole	1.5 Ohm		50 kHz
Murata Electronics 18225C	1.1 MHz		50 kHz	10 %	Unshielded	70 °C	1 kHz		2.2 mH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	0.3 A	Wirewound	Through Hole	2.2 Ohm			108
Murata Electronics 18474C	2.2 MHz	56	100 kHz	10 %	Unshielded	70 °C	1 kHz		470 µH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	600 mA	Wirewound	Through Hole	465 mOhm
Murata Electronics 18105C	1.6 MHz			10 %	Unshielded	70 °C	50 kHz		1 mH	Axial	0.719 in 18.25 mm	0.539 in 13.7 mm	0.44 A	Wirewound	Through Hole	1 Ohm	50 kHz 94
