SDR1005 Series

Catalog

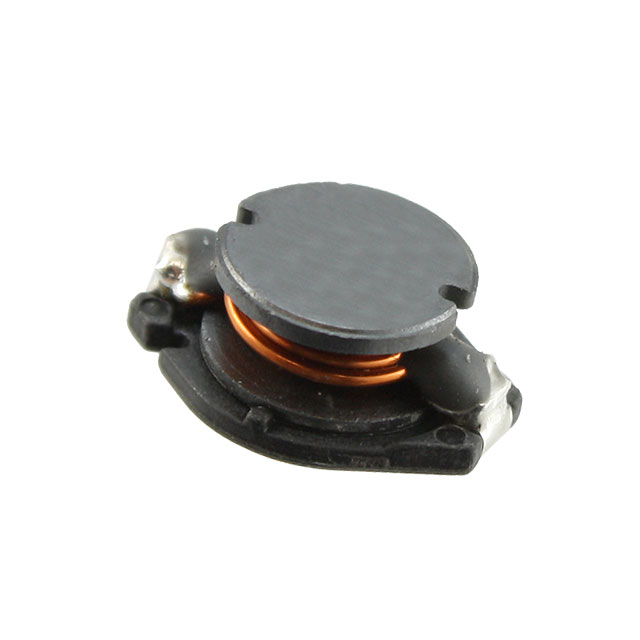

POWER INDUCTOR (SMD), 1.5 ΜH, 6.5 A, UNSHIELDED, 8 A, SDR1005 SERIES

Part	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Shielding	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Q @ Freq	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Saturation (Isat)	Package / Case	Type	Tolerance	Mounting Type	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. SDR1005-1R5ML	6.5 A	0.197 in	5 mm	Ferrite	9 mOhm	1 kHz	Unshielded	95 MHz	125 °C	-40 C	1.5 µH	3 MHz 50	0.5 "	12.7 mm	10 mm	0.394 in	8 A	Nonstandard	Drum Core Wirewound	20 %	Surface Mount
Bourns Inc. SDR1005-332KL	160 mA	0.197 in	5 mm	Ferrite	14 Ohm	1 kHz	Unshielded	1 MHz	125 °C	-40 C	3300 µH		0.5 "	12.7 mm	10 mm	0.394 in	180 mA	Nonstandard	Drum Core Wirewound	10 %	Surface Mount	106	128 kHz
Bourns Inc. SDR1005-103KL	100 mA	0.197 in	5 mm	Ferrite	39 Ohm	1 kHz	Unshielded	1 MHz	125 °C	-40 C	10 mH		0.5 "	12.7 mm	10 mm	0.394 in	110 mA	Nonstandard	Drum Core Wirewound	10 %	Surface Mount	102	138 kHz
Bourns Inc. SDR1005-6R8ML	3.4 A	0.197 in	5 mm	Ferrite	30 mOhm	1 kHz	Unshielded	31 MHz	125 °C	-40 C	6.8 µH		0.5 "	12.7 mm	10 mm	0.394 in	4.5 A	Nonstandard	Drum Core Wirewound	20 %	Surface Mount	56	2 MHz
Bourns Inc. SDR1005-103K	100 mA	0.197 in	5 mm	Ferrite	39 Ohm	1 kHz	Unshielded	1 MHz	125 °C	-40 C	10 mH		0.5 "	12.7 mm	10 mm	0.394 in	110 mA	Nonstandard	Drum Core Wirewound	10 %	Surface Mount	102	138 kHz
Bourns Inc. SDR1005-222J	0.2 A	0.197 in	5 mm	Ferrite	8.2 Ohm	1 kHz	Unshielded	2 MHz	125 °C	-40 C	2.2 mH	85	0.5 "	12.7 mm	10 mm	0.394 in	240 mA	Nonstandard	Drum Core Wirewound	5 %	Surface Mount		128 kHz
Bourns Inc. SDR1005-470KL	1.4 A	0.197 in	5 mm	Ferrite	190 mOhm	1 kHz	Unshielded	12 MHz	125 °C	-40 C	47 µH		0.5 "	12.7 mm	10 mm	0.394 in	1.6 A	Nonstandard	Drum Core Wirewound	10 %	Surface Mount	30	2.2 MHz
Bourns Inc. SDR1005-152KL	0.25 A	0.197 in	5 mm	Ferrite		1 kHz	Unshielded	2 MHz	125 °C	-40 C	1.5 mH	97 131 kHz	0.5 "	12.7 mm	10 mm	0.394 in	300 mA	Nonstandard	Drum Core Wirewound	10 %	Surface Mount			6.3 Ohm
Bourns Inc. SDR1005-2R5ML	5.5 Amps	0.197 in	5 mm	Ferrite	12 mOhm	1 kHz	Unshielded	56 MHz	125 °C	-40 C	2.5 µH	3 MHz 49	0.5 "	12.7 mm	10 mm	0.394 in	7 A	Nonstandard	Drum Core Wirewound	20 %	Surface Mount
Bourns Inc. SDR1005-152JL	0.25 A	0.197 in	5 mm	Ferrite		1 kHz	Unshielded	2 MHz	125 °C	-40 C	1.5 mH	97 131 kHz	0.5 "	12.7 mm	10 mm	0.394 in	300 mA	Nonstandard	Drum Core Wirewound	5 %	Surface Mount			6.3 Ohm
