OQ081 Series
Manufacturer: Amphenol Anytek
Beta
⌘K

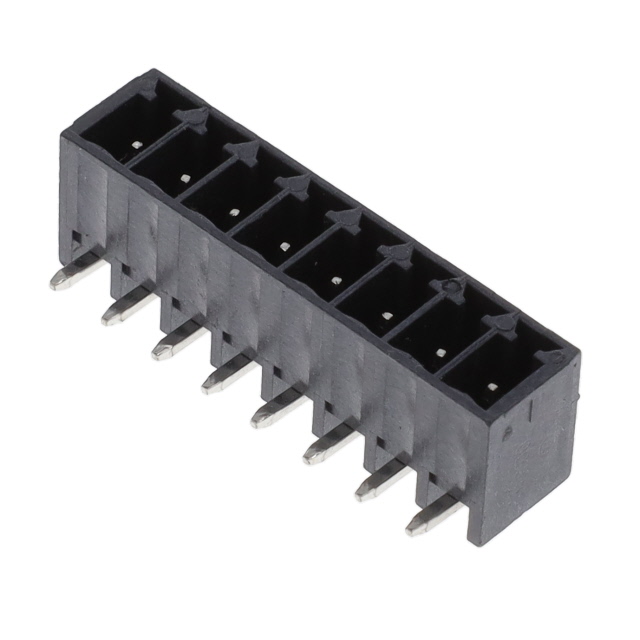

OQ - 3.5- 8P BLACK, LCP THR , PI
| Part | Voltage - UL | Number of Positions | Contact Mating Finish | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Pitch [x] | Pitch [x] | Header Orientation | Positions Per Level | Termination Style | Type | Color | Contact Tail Length | Contact Tail Length | Current - UL | Material Flammability Rating | Number of Levels | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Anytek | 300 V | 8 | Tin | Through Hole | Copper | -45 °C | 130 °C | Liquid Crystal Polymer (LCP) | 3.5 mm | 0.138 in | 90° Right Angle | 8 | Solder | Header Male Pins Shrouded (4 Side) | Black | 0.102 in | 2.6 mm | 10 A | UL94 V-0 | 1 | 0.362 in | 9.2 mm |
