MPC Series
Manufacturer: KEMET
Beta
⌘K
POWER INDUCTORS - SMD 0.36UH 20% 30A DCR=1.05MOHMS
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current Rating (Amps) | Tolerance | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | DC Resistance (DCR) [Max] | Mounting Type | Material - Core | Inductance Frequency - Test | Current - Saturation (Isat) | Height - Seated (Max) | Height - Seated (Max) [Max] | Package / Case | DC Resistance (DCR) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 10 mm | 11.5 mm | 0.453 " | 0.394 in | 25.5 A | 20 % | Shielded | 120 °C | -20 ░C | 360 nH | 1.05 mOhm | Surface Mount | Ferrite | 100 kHz | 30 A | 4 mm | 0.157 in | 2-SMD J-Lead | ||

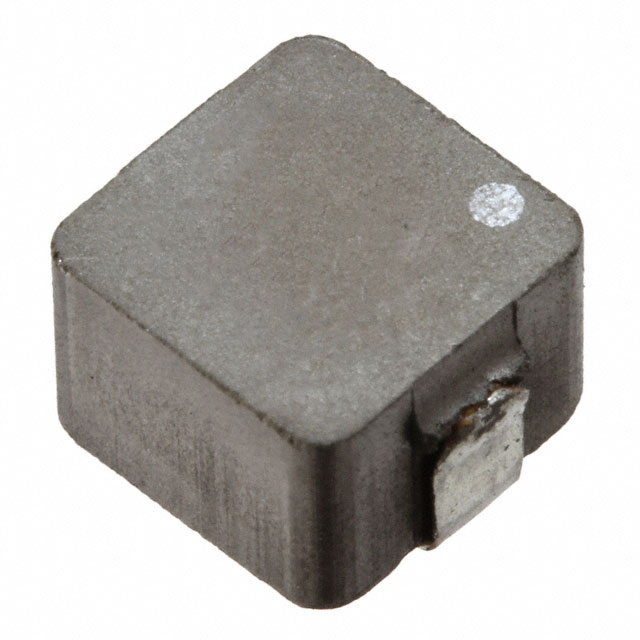

 KEMET | 6.7 mm | 8 mm | 0.315 in | 0.264 " | 17 A | 20 % | Shielded | 120 °C | -20 ░C | 600 nH | Surface Mount | Ferrite | 100 kHz | 19 A | 0.197 in | 2-SMD J-Lead | 2.3 mOhm | 5 mm | ||

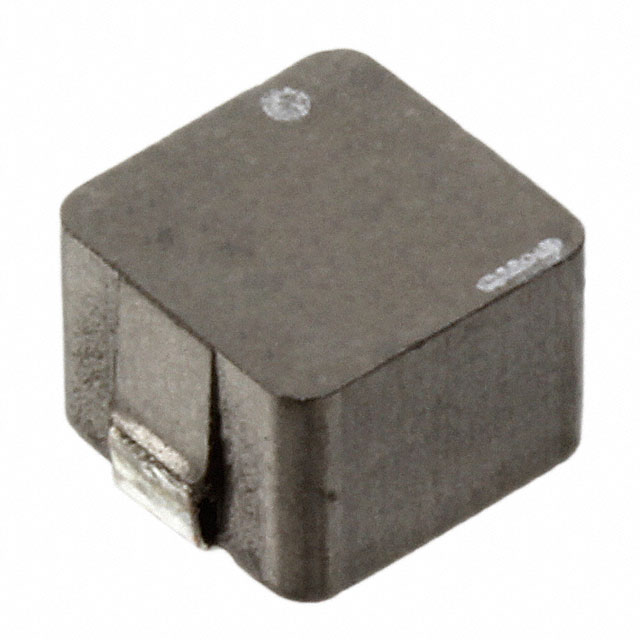

 KEMET | 6.7 mm | 8 mm | 0.315 in | 0.264 " | 18 A | 20 % | Shielded | 120 °C | -20 ░C | 0.68 µH | 2.2 mOhm | Surface Mount | Ferrite | 100 kHz | 16 A | 0.197 in | 2-SMD J-Lead | 5 mm |
