203558 Series

Manufacturer: Molex

Catalog

1.00MM PITCH, PICO-CLASP PCB HEADER, SINGLE ROW, RIGHT-ANGLE, SURFACE MOUNT, 0.38ΜM GOLD PLATED, INNER POSITIVE LOCK, 8 CIRCUITS, NATURAL

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Style	Number of Positions	Insulation Color	Material Flammability Rating	Contact Finish - Mating	Connector Type	Fastening Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Type	Termination	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Features	Mounting Type	Voltage Rating	Shrouding	Contact Material	Number of Rows	Insulation Height

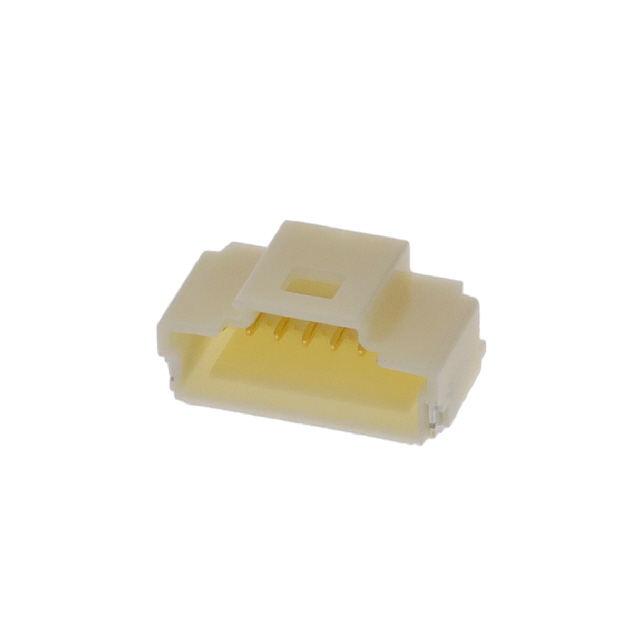

Molex 2035580807	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	8	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.185 in	4.7 mm	Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1
Molex 2035580207	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	2	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.126 "		Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1	3.2 mm
Molex 2035581107	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	11	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.185 in	4.7 mm	Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1
Molex 2035580607				-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	6	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.185 in	4.7 mm	Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1
Molex 2035581307	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	13	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.185 in	4.7 mm	Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1
Molex 2035580707	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	7	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.185 in	4.7 mm	Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1
Molex 2035580407	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	4	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.126 "		Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1	3.2 mm
Molex 2035581207	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	12	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.185 in	4.7 mm	Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1
Molex 2035580507	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	5	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.126 "		Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1	3.2 mm
Molex 2035581507	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	-40 C	105 ░C	Nylon Polyamide (PA)	Rectangular	1 mm	0.039 in	Board to Cable/Wire	15	Natural	UL94 V-0	Gold	Header	Friction Lock	Gold	0.38 µm	15 µin	All	Male Pin	Solder	0.185 in	4.7 mm	Varies by Wire Gauge	Pick and Place Solder Retention	Right Angle Surface Mount	50 V	Shrouded - 4 Wall	Phosphor Bronze	1
