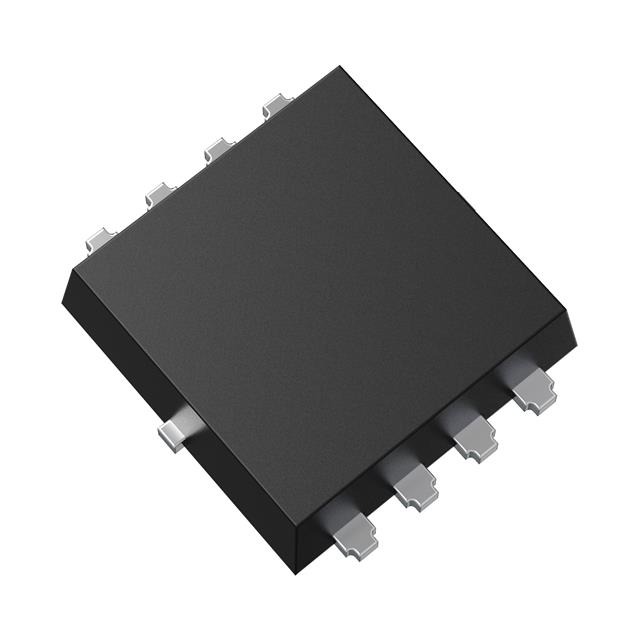

XPN3R804NC Series
12V - 300V MOSFETs, N-ch MOSFET, 40 V, 40 A, 0.0038 Ω@10V, TSON Advance(WF)
Manufacturer: Toshiba Semiconductor and Storage
Catalog
12V - 300V MOSFETs, N-ch MOSFET, 40 V, 40 A, 0.0038 Ω@10V, TSON Advance(WF)
Beta
⌘K
12V - 300V MOSFETs, N-ch MOSFET, 40 V, 40 A, 0.0038 Ω@10V, TSON Advance(WF)
12V - 300V MOSFETs, N-ch MOSFET, 40 V, 40 A, 0.0038 Ω@10V, TSON Advance(WF)
12V - 300V MOSFETs, N-ch MOSFET, 40 V, 40 A, 0.0038 Ω@10V, TSON Advance(WF)
| Part | Input Capacitance (Ciss) (Max) @ Vds [Max] | Technology | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs [Max] | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Grade | Mounting Type | Power Dissipation (Max) | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Vgs (Max) | Operating Temperature | Drain to Source Voltage (Vdss) | Package / Case | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 2230 pF | MOSFET (Metal Oxide) | 2.5 V | 3.8 mOhm | 40 A | 35 nC | 8-TSON Advance-WF | 3.1 | 3.1 | Automotive | Surface Mount | 840 mW | 100 W | 4.5 V 10 V | N-Channel | 20 V | 175 °C | 40 V | 8-PowerVDFN | AEC-Q101 |
