96573 Series

Manufacturer: Pflitsch

Catalog

CABLE FEEDTHROUGH 16-20.07MM M25

Part	Operating Temperature [Min]	Operating Temperature [Max]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Thread Size	Includes	Ingress Protection	Type	Thread Length	Thread Length	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]

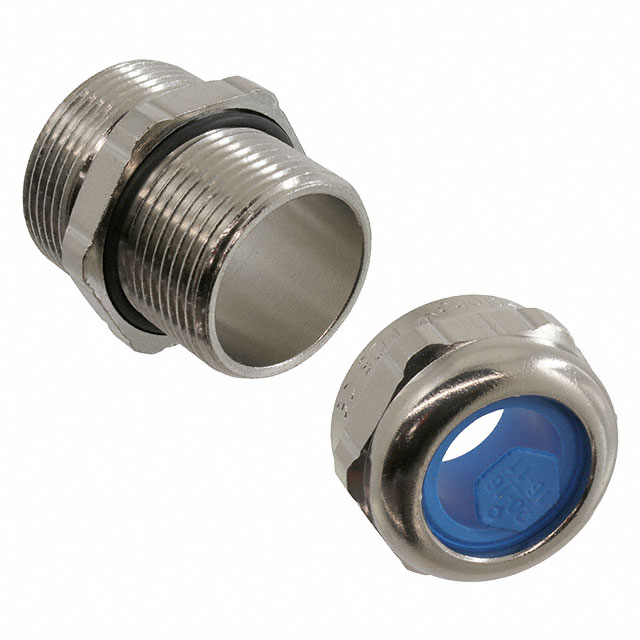

Pflitsch 96573.6/15	-40 C	300 °C	0.98 in	24.9 mm	0.63 in	16 mm	Brass Nickel Plated	0.79 in	20.07 mm	Silver	M25x1.5	Sealing Ring	IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough

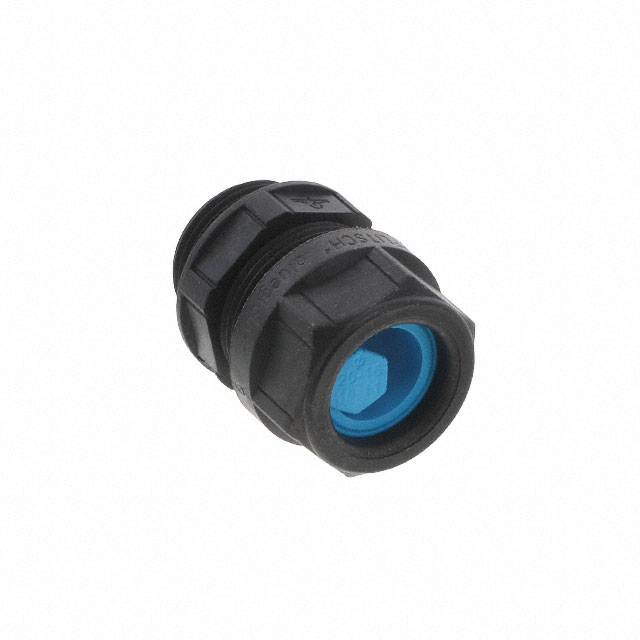

Pflitsch 96573.1	-20 ░C	100 °C	0.98 in	24.9 mm	0.63 in	16 mm	Polyamide (PA) Nylon	0.79 in	20.07 mm	Black	M25x1.5		IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	0.3 "	7.62 mm
Pflitsch 96573.7.1/15							Stainless Steel			Silver	M25x1.5			Cable Feedthrough
Pflitsch 96573.7/15	-60 °C	500 °C	0.984 in	25 mm	0.433 in		Stainless Steel			Silver	M25x1.5	Sealing Ring		Cable Feedthrough			11 mm	0.787 in	20 mm

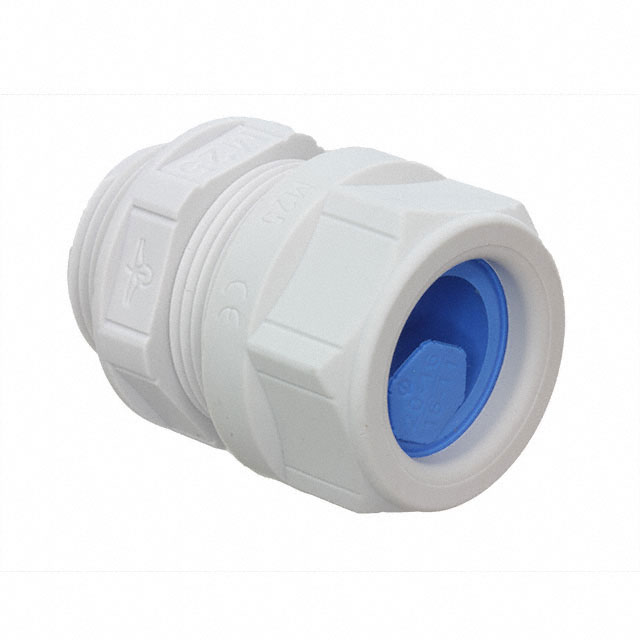

Pflitsch 96573.0	-20 ░C	100 °C	0.98 in	24.9 mm	0.63 in	16 mm	Polyamide (PA) Nylon	0.79 in	20.07 mm	Light Gray	M25x1.5		IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	0.3 "	7.62 mm

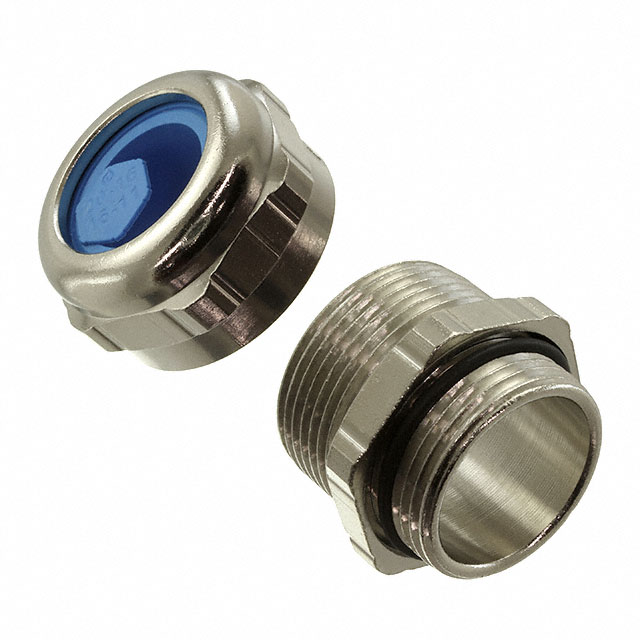

Pflitsch 96573.6	-40 C	300 °C	0.98 in	24.9 mm	0.63 in	16 mm	Brass Nickel Plated	0.79 in	20.07 mm	Silver	M25x1.5	Sealing Ring	IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	0.3 "	7.62 mm

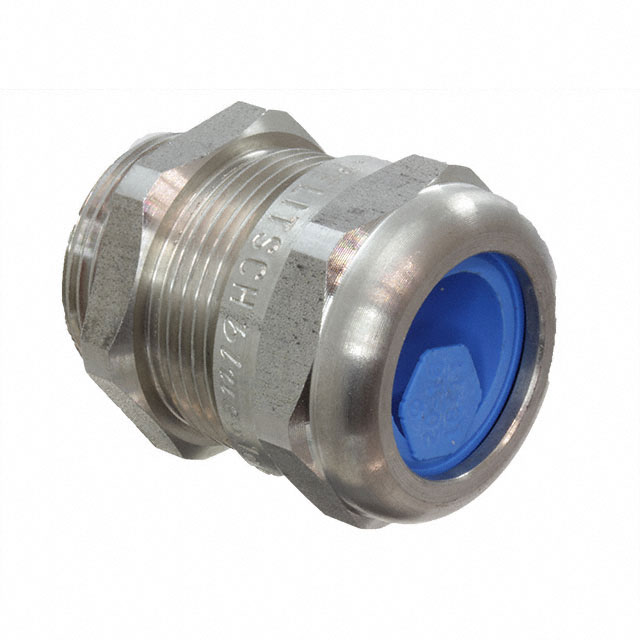

Pflitsch 96573.7	-60 °C	500 °C	0.98 in	24.9 mm	0.63 in	16 mm	Stainless Steel	0.79 in	20.07 mm	Silver	M25x1.5	Sealing Ring	IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	0.3 "	7.62 mm
