D40Z-1 Series

Catalog

INTERLOCK MAGNETIC SPST

Part	Circuit	Current Rating (Amps)	Ingress Protection	Must Operate	Voltage Rating	Actuator Type	Voltage - Supply	Termination Style	Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Must Release
Omron Automation and Safety D40Z-1C2-S	SPST-NO	10 mA	IP67 - Dust Tight Waterproof	5 mm	24 VDC	Non-Contact	24 V	Cable Leads	Magnetic	CE cULus TUV	65 °C	-10 °C	15 mm

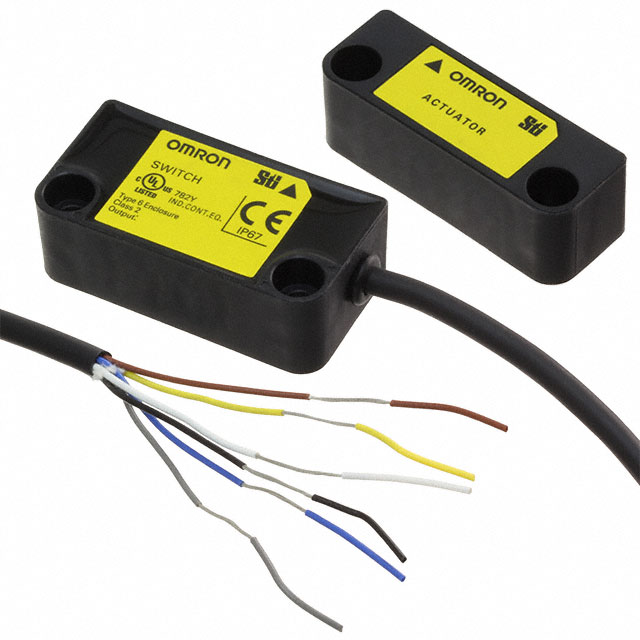

Omron Automation and Safety D40Z-1C5	SPST-NO	10 mA	IP67 - Dust Tight Waterproof	5 mm	24 VDC	Non-Contact	24 V	Cable Leads	Magnetic	CE cULus TUV	65 °C	-10 °C	15 mm
Omron Automation and Safety D40Z-1C5-S	SPST-NO	10 mA	IP67 - Dust Tight Waterproof	5 mm	24 VDC	Non-Contact	24 V	Cable Leads	Magnetic	CE cULus TUV	65 °C	-10 °C	15 mm

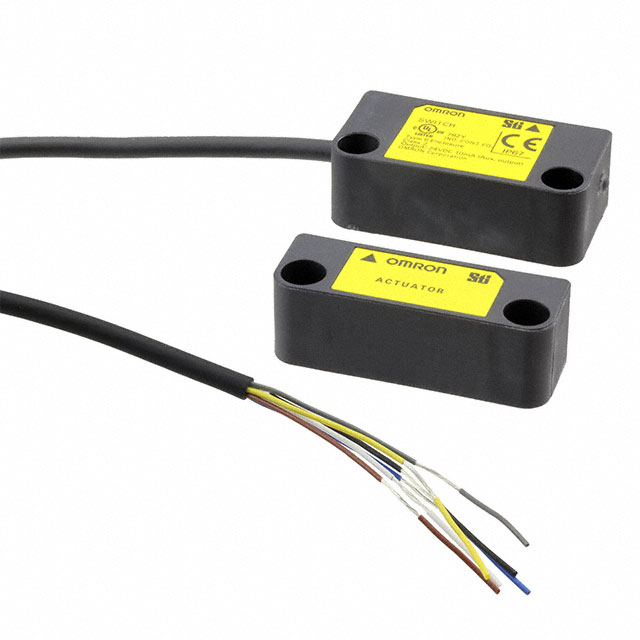

Omron Automation and Safety D40Z-1C2	SPST-NO	10 mA	IP67 - Dust Tight Waterproof	5 mm	24 VDC	Non-Contact	24 V	Cable Leads	Magnetic	CE cULus TUV	65 °C	-10 °C	15 mm
