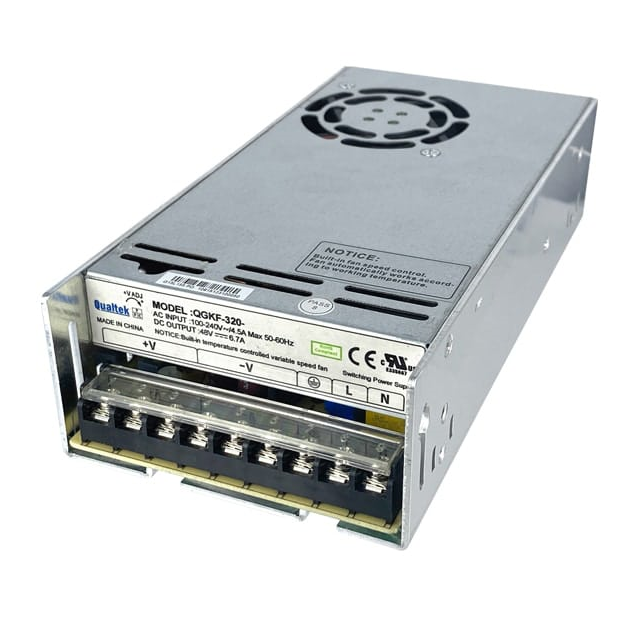

QGKF-320 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 5V 320W
| Part | Voltage - Isolation | Efficiency | Current - Output 1 | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Voltage - Output 1 | Applications | Power (Watts) | Number of Outputs | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 3000 V | 79 % | 55 A | Adjustable Output DC Input Capable Universal Input | Chassis Mount | 70 °C | -25 °C | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | CB CE cURus | 5 V | ITE (Commercial) | 320 W | 1 | Enclosed |
 Qualtek | 3000 V | 84.5 % | 25 A | Adjustable Output DC Input Capable PFC Universal Input | Chassis Mount | 70 °C | -25 °C | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | CB CE cURus | 12 V | ITE (Commercial) | 320 W | 1 | Enclosed |
Qualtek | 3000 V | 87 % | 13 A | Adjustable Output DC Input Capable PFC Universal Input | Chassis Mount | 70 °C | -25 °C | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | CB CE cURus | 24 V | ITE (Commercial) | 320 W | 1 | Enclosed |
