807-054 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 54POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Features	Number of Positions/Bay/Row	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Color	Mounting Type	Number of Positions	Card Type	Contact Finish	Contact Type	Pitch	Pitch

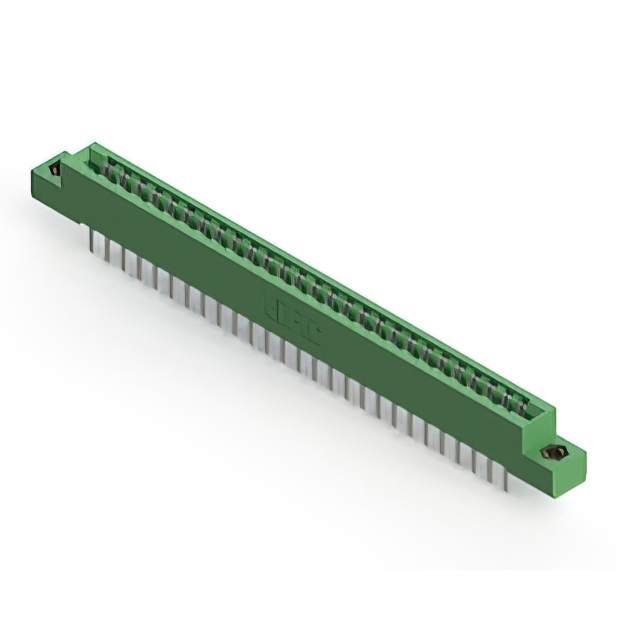

EDAC Inc. 807-054-560-212	Diallyl Phthalate (DAP)	2	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.25 Ám	10 Áin	Copper Alloy	Solder	Card Extender	27	Female	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Board Edge Straddle Mount	54	Non Specified - Dual Edge	Gold	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-520-207	Diallyl Phthalate (DAP)	2	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	Copper Alloy	Solder		27	Female	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Through Hole	54	Non Specified - Dual Edge	Gold	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-455-204	Diallyl Phthalate (DAP)	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm			Copper Alloy	Solder	Card Extender	27	Female	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Board Edge Straddle Mount	54	Non Specified - Dual Edge	Tin	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-459-204	Diallyl Phthalate (DAP)	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm			Copper Alloy	Solder		27	Female	125 °C	-40 C	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Right Angle Through Hole	54	Non Specified - Dual Edge	Tin	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-456-204	Diallyl Phthalate (DAP)	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm			Copper Alloy	Solder	Card Extender	27	Female	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Board Edge Straddle Mount	54	Non Specified - Dual Edge	Tin	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-458-207	Diallyl Phthalate (DAP)	2	Flush Mount M3 Threaded Insert Top Opening					Copper Alloy	Solder		27	Female	125 °C	-40 C	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Right Angle Through Hole	54	Non Specified - Dual Edge	Tin	Semi Bellows	3.96 mm	0.156 in

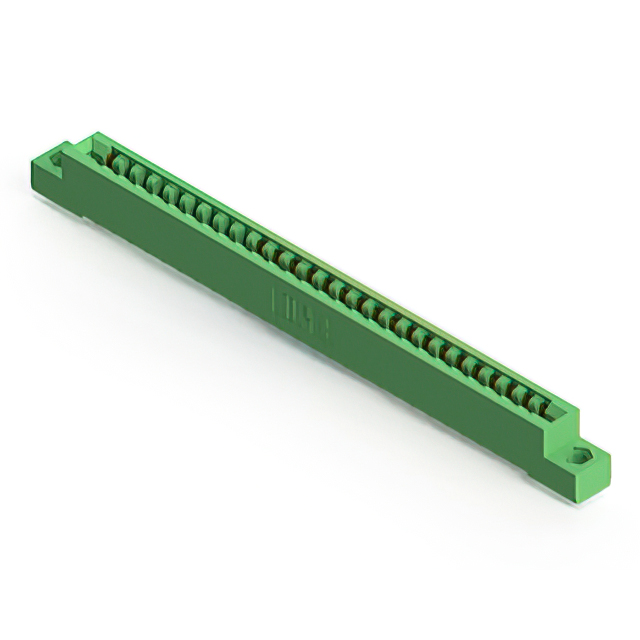

EDAC Inc. 807-054-556-204	Diallyl Phthalate (DAP)	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.25 Ám	10 Áin	Copper Alloy	Solder	Card Extender	27	Female	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Board Edge Straddle Mount	54	Non Specified - Dual Edge	Gold	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-442-203	Diallyl Phthalate (DAP)	2	Floating Bobbin Flush Mount	0.116 "	2.95 mm			Copper Alloy	Wire Wrap		27	Female	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Through Hole	54	Non Specified - Dual Edge	Tin	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-459-201	Diallyl Phthalate (DAP)	2						Copper Alloy	Solder		27	Female	125 °C	-40 C	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Right Angle Through Hole	54	Non Specified - Dual Edge	Tin	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 807-054-522-203	Diallyl Phthalate (DAP)	2	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.25 Ám	10 Áin	Copper Alloy	Solder		27	Female	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	Through Hole	54	Non Specified - Dual Edge	Gold	Semi Bellows	3.96 mm	0.156 in
