FI-TD44 Series

Catalog

CONN RCPT 44POS 0.05 GOLD SMD

Part	Insulation Material	Applications	Contact Material	Contact Type	Features	Material Flammability Rating	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Termination	Insulation Color	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Number of Positions	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Style	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height

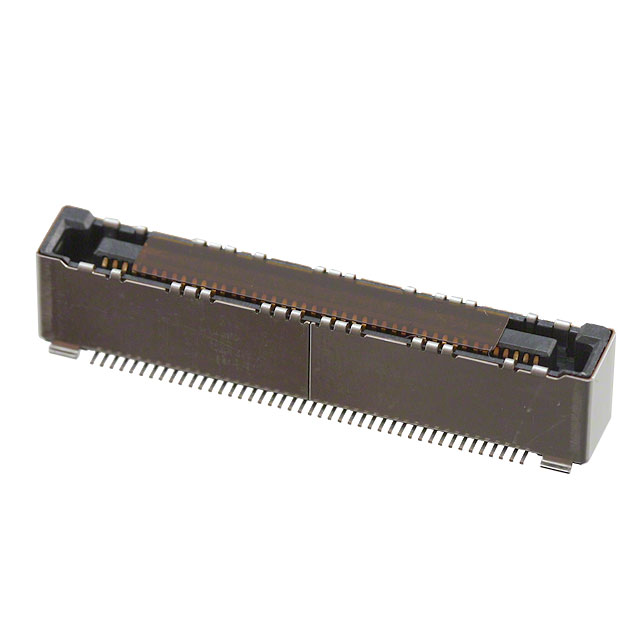

JAE Electronics FI-TD44SB-E-R750	Thermoplastic	General Purpose	Copper Alloy	Center Strip Contact	Board Guide Pick and Place Solder Retention	UL94 V-0	7.35 mm	0.76 Ám	30 Áin	Surface Mount	500 mA	Solder	Black	Tin	Gold	1	44	All	85 °C	-40 C	Latch Holder	Receptacle	Board to Cable/Wire	0.5 mm	0.02 in	5.65 mm	0.222 in
JAE Electronics FI-TD44SB-LE-R1500	Thermoplastic	General Purpose	Copper Alloy	Center Strip Contact	Board Guide Pick and Place Solder Retention	UL94 V-0	4.4 mm	0.76 Ám	30 Áin	Surface Mount	500 mA	Solder	Black	Tin	Gold	1	44	All	85 °C	-40 C	Latch Holder	Receptacle	Board to Cable/Wire	0.5 mm	0.02 in	2.7 mm	0.106 in
