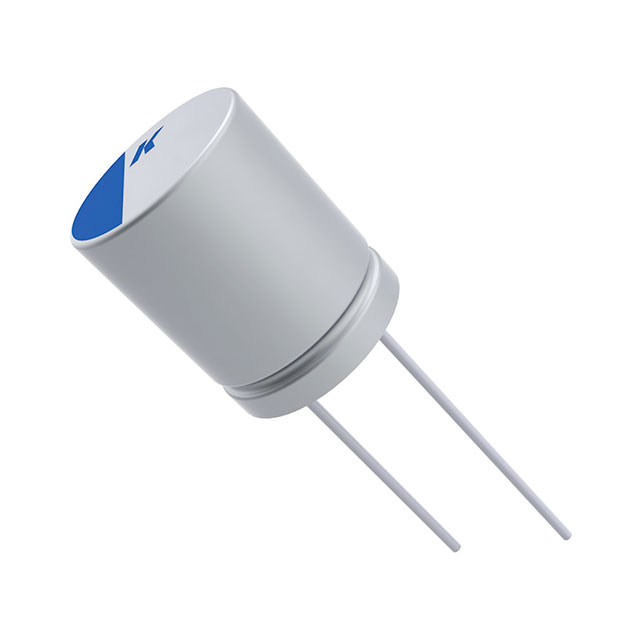

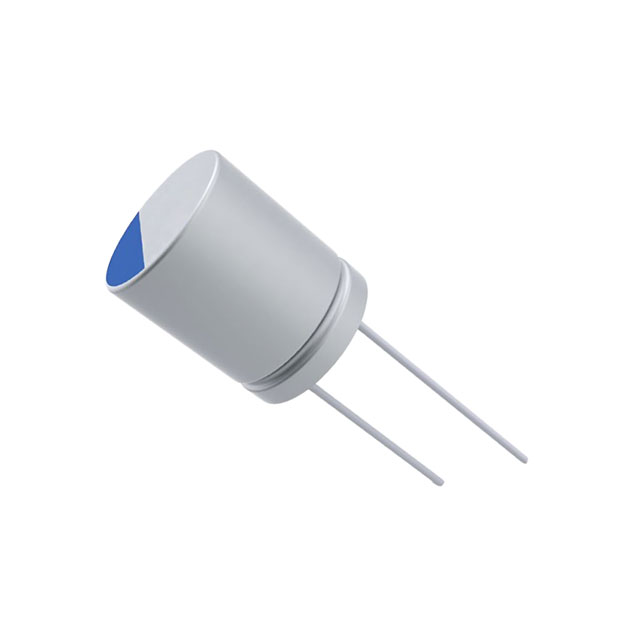

A750EK Series

Manufacturer: KEMET

Catalog

CAP ALUM POLY 100UF 20% 16V TH

Part	Voltage - Rated	Type	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	ESR (Equivalent Series Resistance)
KEMET EA750EK107M1CAA	16 V	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	145 mA	-55 C	105 ░C	2.9 A	100 µF	9 mm	0.354 in	General Purpose
KEMET A750EK567M0GAAE018	4 V	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	155 mA	-55 C	105 ░C	3.1 A	560 µF	9 mm	0.354 in	General Purpose
KEMET A750EK277M1AAAE010	10 V	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	234 mA	-55 C	105 ░C	4.68 A	270 µF	9 mm	0.354 in	General Purpose	10 mOhm
KEMET A750EK827M0EAAE007	2.5 V	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	280 mA	-55 C	105 ░C	5.6 A	820 µF	9 mm	0.354 in	General Purpose	7 mOhms
KEMET A750EK477M0EAAE007	2.5 V	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	280 mA	-55 C	105 ░C	5.6 A	470 µF	9 mm	0.354 in	General Purpose	7 mOhms
KEMET EA750EK227M1AAA	10 V	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	155 mA	-55 C	105 ░C	3.1 A	220 µF	9 mm	0.354 in	General Purpose
KEMET A750EK687M0JAAE008	6.3 VDC	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	250 mA	-55 C	105 ░C		680 µF	9 mm	0.354 in	General Purpose	8 mOhms
KEMET A750EK337M0EAAE007	2.5 V	Polymer	Through Hole	2.5 mm	0.098 in	0.248 "	6.3 mm	20 %	2000 Hrs	Can Radial	280 mA	-55 C	105 ░C	5.6 A	330 µF	9 mm	0.354 in	General Purpose	7 mOhms
