RL110 Series

Catalog

FIXED IND 180UH 1.3A 310 MOHM TH

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Frequency - Self Resonant	Tolerance	Type	Inductance Frequency - Test	Material - Core	Mounting Type	Package / Case	Shielding	DC Resistance (DCR) [Max]	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RL110-181K-RC	0.413 "	10.5 mm	180 µH	3.9 MHz	10 %	Drum Core Wirewound	1 kHz	Ferrite	Through Hole	4 Leads (Open) Radial Vertical Cylinder	Unshielded	310 mOhm	1.3 A	0.394 in	10 mm	-40 C	105 ░C	25 796 kHz
Bourns Inc. RL110-330K-RC	0.413 "	10.5 mm	33 µH	6 MHz	10 %	Drum Core Wirewound	2.52 MHz	Ferrite	Through Hole	4 Leads (Open) Radial Vertical Cylinder	Unshielded	55 mOhm	2.9 A	0.394 in	10 mm	-40 C	105 ░C	2.52 MHz 20
Bourns Inc. RL110-271K-RC	0.413 "	10.5 mm	270 µH	3.4 MHz	10 %	Drum Core Wirewound	1 kHz	Ferrite	Through Hole	4 Leads (Open) Radial Vertical Cylinder	Unshielded	400 mOhm	1 A	0.394 in	10 mm	-40 C	105 ░C		20	796 kHz
Bourns Inc. RL110-470K-RC	0.413 "	10.5 mm	47 µH	8.1 MHz	10 %	Drum Core Wirewound	2.52 MHz	Ferrite	Through Hole	4 Leads (Open) Radial Vertical Cylinder	Unshielded	83 mOhm	2.5 A	0.394 in	10 mm	-40 C	105 ░C	2.52 MHz 25

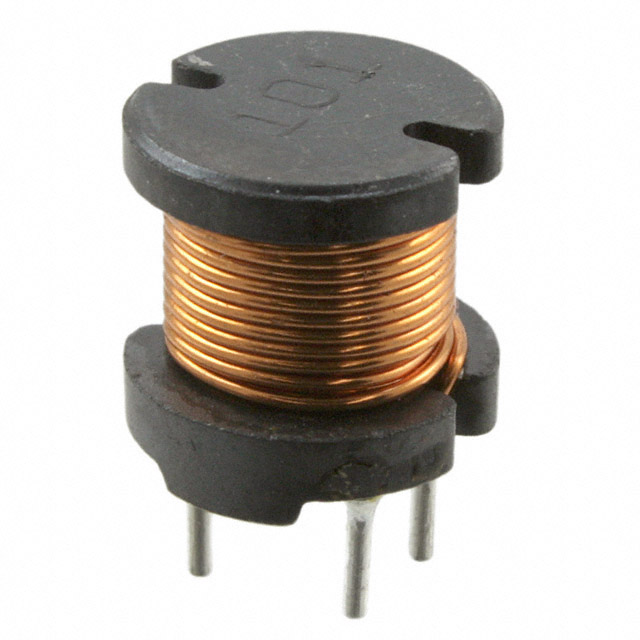

Bourns Inc. RL110-101K-RC	0.413 "	10.5 mm	100 µH	5.7 MHz	10 %	Drum Core Wirewound	1 kHz	Ferrite	Through Hole	4 Leads (Open) Radial Vertical Cylinder	Unshielded	160 mOhm	1.7 A	0.394 in	10 mm	-40 C	105 ░C	25 796 kHz
Bourns Inc. RL110-471K-RC	0.413 "	10.5 mm	470 µH	2.5 MHz	10 %	Drum Core Wirewound	1 kHz	Ferrite	Through Hole	4 Leads (Open) Radial Vertical Cylinder	Unshielded	710 mOhm	780 mA	0.394 in	10 mm	-40 C	105 ░C		20	796 kHz
