2385346 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

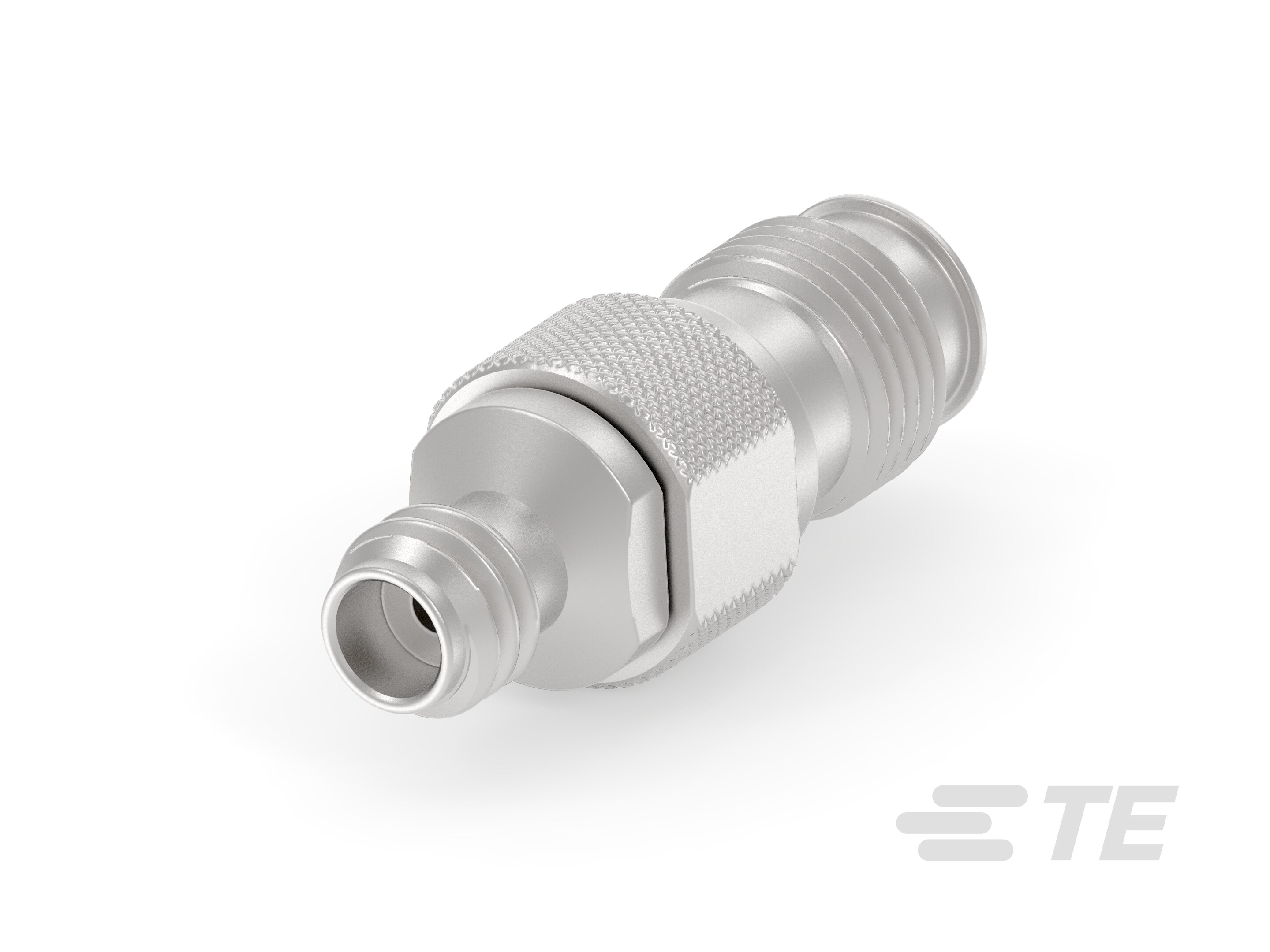

1.35MM FEMALE TO 1.0MM FEMALE ADAPTOR
| Part | Mounting Type | Frequency - Max [Max] | Center Contact Plating | Mating Cycles | Style | Body Material | Convert From (Adapter End) | Convert From (Adapter End) | Center Contact Material | Impedance | Center Gender | Conversion Type | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Dielectric Material | Adapter Series [Min] | Adapter Series [Max] | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 90 GHz | Gold | 500 | Straight | Stainless Steel | 1 mm | Female Socket | Beryllium Copper | 50 Ohms | Female to Female | Between Series | -55 °C | 125 °C | 1.35mm Jack Female Socket | Polyetheretherketone (PEEK) | 1 mm | 1.35 mm | Jack to Jack |
