EN3P3M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT MALE 3POS GOLD SOLDER
| Part | Primary Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Applications | Ingress Protection | Contact Material | Insert Material | Termination | Contact Finish - Mating | Shielding | Color | Current Rating (Amps) | Mounting Feature | Material Flammability Rating | Connector Type | Fastening Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

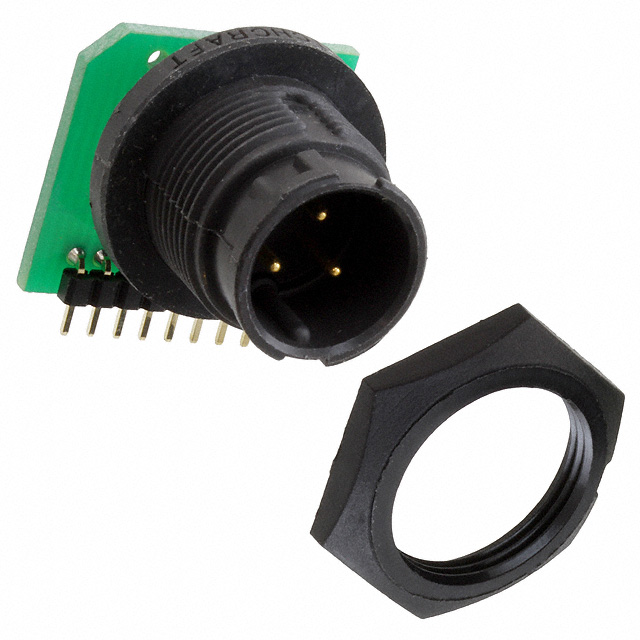

 Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Circuit Board Solder | Gold | Unshielded | Black | 5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | Panel Mount Right Angle Through Hole |
Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Crimp | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | |
Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | ||
Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Crimp | Gold | Unshielded | Black | 7.5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | |
Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Solder | Gold | Unshielded | Black | 7.5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | Panel Mount Through Hole |
Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Crimp | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | |
 Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Gold | Unshielded | Black | 7.5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | ||

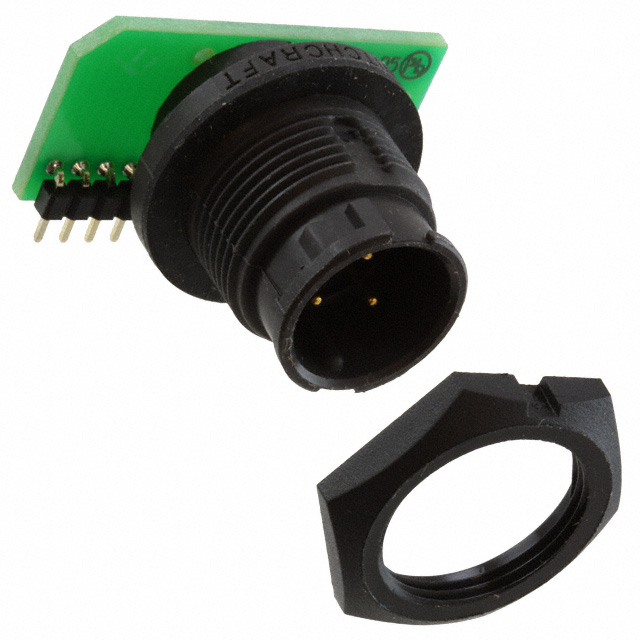

 Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Circuit Board Solder | Gold | Unshielded | Black | 5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | Panel Mount Right Angle Through Hole |
 Switchcraft Inc. | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose Instrumentation Marine Medical | IP66/IP68 | Copper Alloy | Elastomer | Solder | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins Receptacle | Bayonet Lock | Panel Mount Through Hole |
