MPM6010 Series

Catalog

LED DRIVER, 1 OUTPUT, SYNCHRONOUS BUCK, 4 V TO 36 V INPUT, 2.2 MHZ, 1.5 A OUTPUT, QFN-17

Part	Grade	Dimming	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Qualification	Features	Mounting Type	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Topology

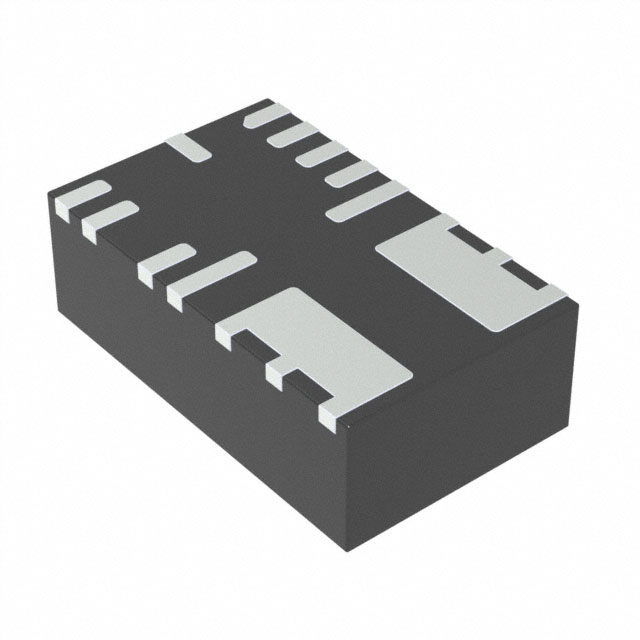

Monolithic Power Systems Inc. MPM6010GQV-AEC1-P	Automotive	PWM	0.12 inches	5 mm	0.2 in	1.7 mm	0.06 "	3 mm	Constant Current	125 °C	-40 C	1	1.5 A	AEC-Q100	OCP OTP SCP UVLO	Surface Mount	17-PowerLQFN Module	4 V	36 V	Buck
Monolithic Power Systems Inc. MPM6010GQV-AEC1-Z	Automotive	PWM	0.12 inches	5 mm	0.2 in	1.7 mm	0.06 "	3 mm	Constant Current	125 °C	-40 C	1	1.5 A	AEC-Q100	OCP OTP SCP UVLO	Surface Mount	17-PowerLQFN Module	4 V	36 V	Buck

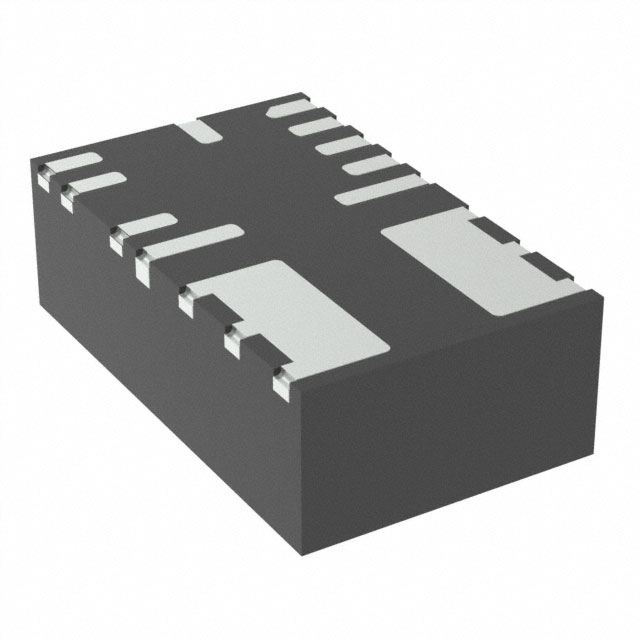

Monolithic Power Systems Inc. MPM6010GQVE-AEC1-Z	Automotive	PWM	0.12 inches	5 mm	0.2 in	1.7 mm	0.06 "	3 mm	Constant Current	125 °C	-40 C	1	1.5 A	AEC-Q100	OCP OTP SCP UVLO	Surface Mount Wettable Flank	17-PowerLQFN Module	4 V	36 V	Buck
Monolithic Power Systems Inc. MPM6010GQV-P		PWM	0.12 inches	5 mm	0.2 in	1.7 mm	0.06 "	3 mm	Constant Current	125 °C	-40 C	1	1.5 A		OCP OTP SCP UVLO	Surface Mount	17-PowerLQFN Module	4 V	36 V	Buck
