2823408 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

20P,2MM,MTE HDR,DRVT,2.8,0.76AU,

Part	Shrouding	Fastening Type	Voltage Rating	Contact Material	Style	Contact Shape	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish - Post	Number of Rows	Mounting Type	Material Flammability Rating	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Type

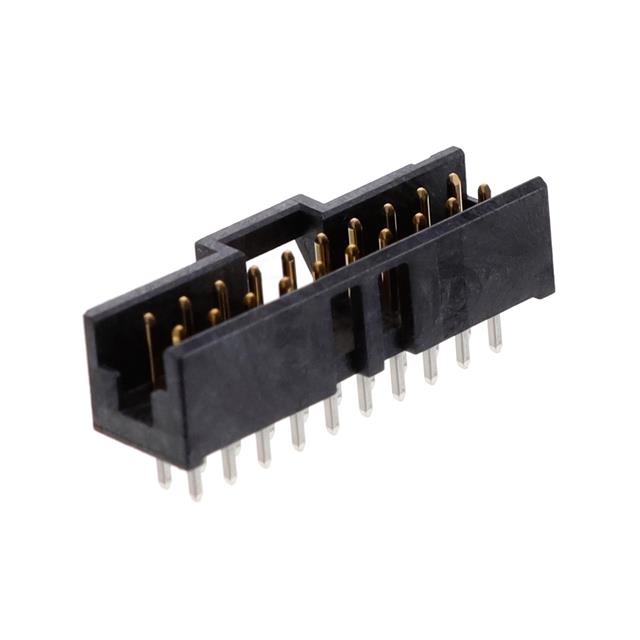

TE Connectivity Raychem Cable Protection 2-2823408-0	Shrouded - 4 Wall	Latch Holder	125 VAC	Phosphor Bronze	Board to Cable/Wire	Square	4 mm	0.157 in	2 A	Header	157.5 Áin	4 Ám	Thermoplastic	125 °C	-40 °C	Black	Tin	2	Through Hole	UL94 V-0	Solder	0.11 in	2.8 mm	0.217 "	5.5 mm	30 Áin	0.76 Ám	Gold	0.079 in	2 mm	Pick and Place	All	0.079 in	2 mm	20	Male Pin

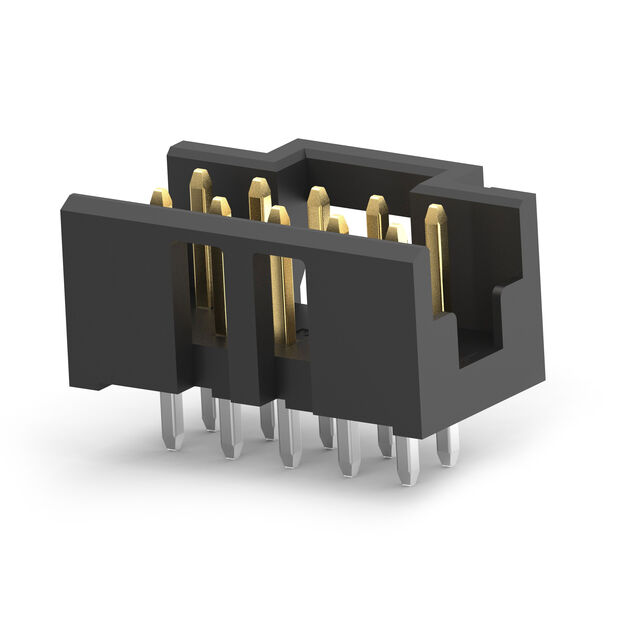

TE Connectivity Raychem Cable Protection 1-2823408-0	Shrouded - 4 Wall	Latch Holder	125 VAC	Phosphor Bronze	Board to Cable/Wire	Square	4 mm	0.157 in	2 A	Header	157.5 Áin	4 Ám	Thermoplastic	125 °C	-40 °C	Black	Tin	2	Through Hole	UL94 V-0	Solder	0.11 in	2.8 mm	0.217 "	5.5 mm	30 Áin	0.76 Ám	Gold	0.079 in	2 mm	Pick and Place	All	0.079 in	2 mm	10	Male Pin
TE Connectivity Raychem Cable Protection 3-2823408-2	Shrouded - 4 Wall	Latch Holder	125 VAC	Phosphor Bronze	Board to Cable/Wire	Square	4 mm	0.157 in	2 A	Header	157.5 Áin	4 Ám	Thermoplastic	125 °C	-40 °C	Black	Tin	2	Through Hole	UL94 V-0	Solder	0.11 in	2.8 mm	0.217 "	5.5 mm	30 Áin	0.76 Ám	Gold	0.079 in	2 mm	Pick and Place	All	0.079 in	2 mm		Male Pin
TE Connectivity Raychem Cable Protection 1-2823408-2	Shrouded - 4 Wall	Latch Holder	125 VAC	Phosphor Bronze	Board to Cable/Wire	Square	4 mm	0.157 in	2 A	Header	157.5 Áin	4 Ám	Thermoplastic	125 °C	-40 °C	Black	Tin	2	Through Hole	UL94 V-0	Solder	0.11 in	2.8 mm	0.217 "	5.5 mm	30 Áin	0.76 Ám	Gold	0.079 in	2 mm	Pick and Place	All	0.079 in	2 mm	12	Male Pin

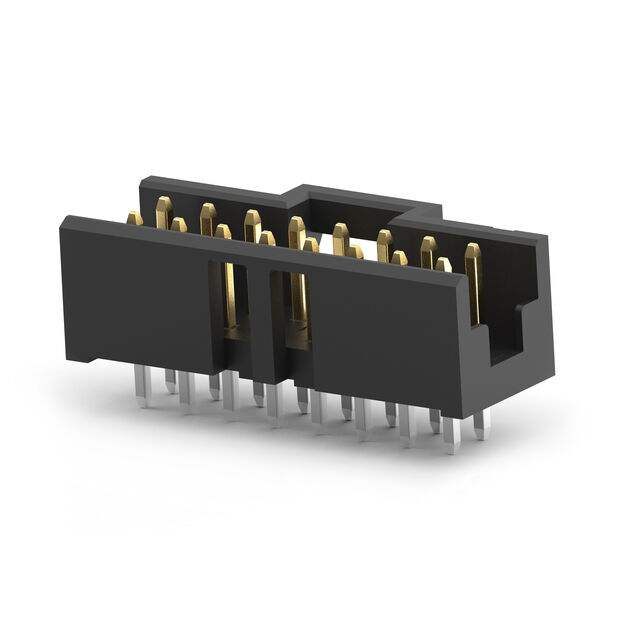

TE Connectivity Raychem Cable Protection 2-2823408-4	Shrouded - 4 Wall	Latch Holder	125 VAC	Phosphor Bronze	Board to Cable/Wire	Square	4 mm	0.157 in	2 A	Header	157.5 Áin	4 Ám	Thermoplastic	125 °C	-40 °C	Black	Tin	2	Through Hole	UL94 V-0	Solder	0.11 in	2.8 mm	0.217 "	5.5 mm	30 Áin	0.76 Ám	Gold	0.079 in	2 mm	Pick and Place	All	0.079 in	2 mm	24	Male Pin
