044150 Series
Manufacturer: Molex
Beta
⌘K
CONN MOD JACK 8P8C R/A UNSHLD
| Part | Termination | Orientation | Tab Direction | LED Color | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Type | Number of Ports | Shielding | Contact Finish | Number of Positions/Contacts | Housing Material | Contact Material | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 2 | Unshielded | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
 Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 4 | Shielded EMI Finger | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 4 | Unshielded | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 8 | Shielded EMI Finger | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 8 | Shielded EMI Finger | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
 Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 8 | Shielded EMI Finger | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |

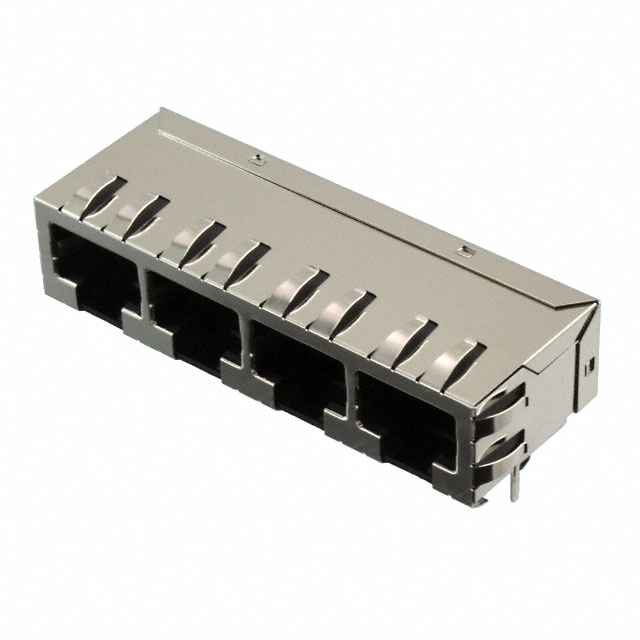

Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 4 | Shielded EMI Finger | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 4 | Unshielded | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 6 | Shielded EMI Finger | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |

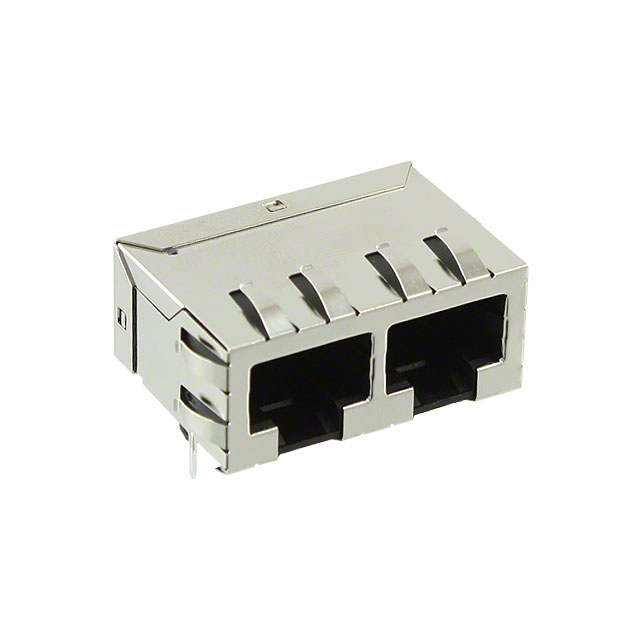

 Molex | Solder | 90 ° | Down | Does Not Contain LED | Cat5 | 85 °C | -40 °C | Jack | Through Hole | 2 | Shielded EMI Finger | Gold | 8p8c (RJ45 Ethernet) | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | 1 | 50 µin | 1.27 µm |
