046010 Series

Manufacturer: Molex

Catalog

CONN RCPT 10POS 0.165 GOLD PCB

Part	Voltage Rating	Insulation Material	Contact Type	Mated Stacking Heights	Termination	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Fastening Type	Style	Number of Positions	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)

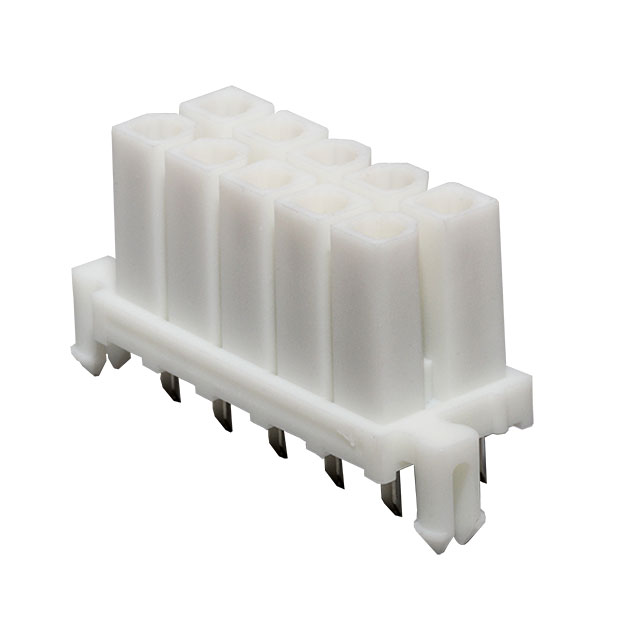

Molex 0460101022	600 VAC	Polyamide (PA66) Nylon 6/6	Female Socket	10.9 mm 15.24 mm 15.82 mm	Solder	Receptacle	Gold	30 Áin	0.76 Ám	Copper Alloy	4.2 mm	0.165 in	Tin	Natural	Square	UL94 V-0	All	3.5 mm	0.138 in	Push-Pull	Board to Board Cable	10	Through Hole	2.54 µm	100 µin	-40 °C	105 ░C	2	4.2 mm	0.165 in	0.446 in	11.33 mm

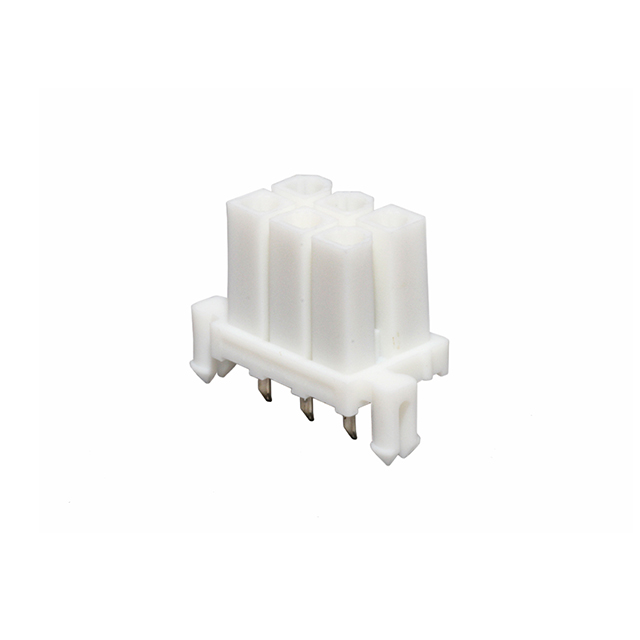

Molex 0460100621	600 VAC	Polyamide (PA66) Nylon 6/6	Female Socket	10.9 mm 15.24 mm 15.82 mm	Solder	Receptacle		100 çin	2.54 çm	Copper Alloy	4.2 mm	0.165 in	Tin	Natural	Square	UL94 V-0	All	3.5 mm	0.138 in	Push-Pull	Board to Board Cable	6	Through Hole	1.27 µm	50 µin	-40 °C	105 ░C	2	4.2 mm	0.165 in	0.446 in	11.33 mm
Molex 0460102422	600 VAC	Polyamide (PA66) Nylon 6/6	Female Socket	10.9 mm 15.24 mm 15.82 mm	Solder	Receptacle	Gold	30 Áin	0.76 Ám	Copper Alloy	4.2 mm	0.165 in	Tin	Natural	Square	UL94 V-0	All	3.5 mm	0.138 in	Push-Pull	Board to Board Cable	24	Through Hole	2.54 µm	100 µin	-40 °C	105 ░C	2	4.2 mm	0.165 in	0.446 in	11.33 mm
Molex 0460101411	600 V	Polyamide (PA66) Nylon 6/6	Female Socket		Solder	Receptacle		100 çin	2.54 çm	Copper Alloy	4.2 mm	0.165 in	Tin	Natural	Square	UL94 V-2	All			Push-Pull	Board to Board Cable	14	Through Hole	1.27 µm	50 µin	-40 °C	105 ░C	2	4.2 mm	0.165 in	0.446 in	11.33 mm	3.56 mm	0.14 in	Varies by Wire Gauge
Molex 0460100612	600 VAC	Polyamide (PA66) Nylon 6/6	Female Socket	10.9 mm 15.24 mm 15.82 mm	Solder	Receptacle	Gold	30 Áin	0.76 Ám	Copper Alloy	4.2 mm	0.165 in	Tin	Natural	Square	UL94 V-2	All	3.5 mm	0.138 in	Push-Pull	Board to Board Cable	6	Through Hole	2.54 µm	100 µin	-40 °C	105 ░C	2	4.2 mm	0.165 in	0.446 in	11.33 mm

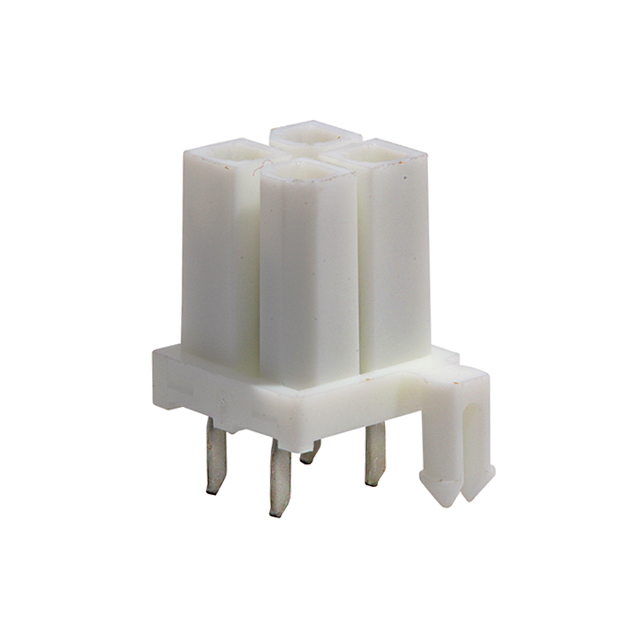

Molex 0460100421	600 VAC	Polyamide (PA66) Nylon 6/6	Female Socket	10.9 mm 15.24 mm 15.82 mm	Solder	Receptacle		100 çin	2.54 çm	Copper Alloy	4.2 mm	0.165 in	Tin	Natural	Square	UL94 V-0	All	3.5 mm	0.138 in	Push-Pull	Board to Board Cable	4	Through Hole	1.27 µm	50 µin	-40 °C	105 ░C	2	4.2 mm	0.165 in	0.446 in	11.33 mm
Molex 0460101821	600 VAC	Polyamide (PA66) Nylon 6/6	Female Socket	10.9 mm 15.24 mm 15.82 mm	Solder	Receptacle		100 çin	2.54 çm	Copper Alloy	4.2 mm	0.165 in	Tin	Natural	Square	UL94 V-0	All	3.5 mm	0.138 in	Push-Pull	Board to Board Cable	18	Through Hole	1.27 µm	50 µin	-40 °C	105 ░C	2	4.2 mm	0.165 in	0.446 in	11.33 mm
