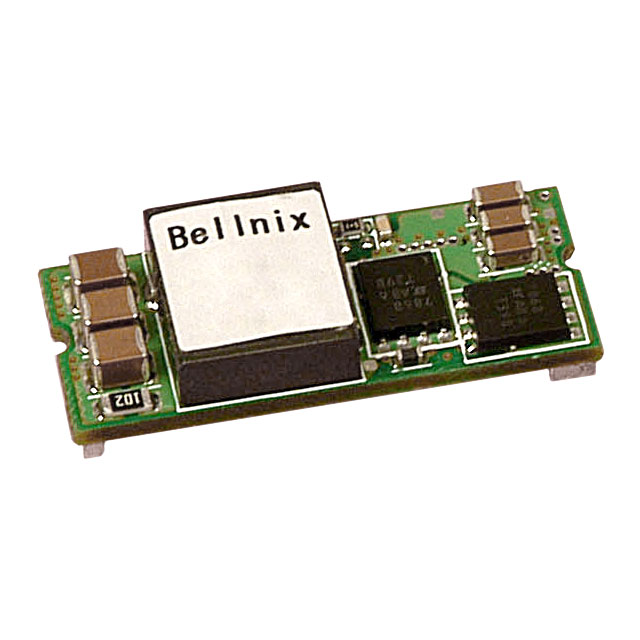

BST12 Series

Catalog

DC DC CONVERTER 0.75-5V

Part	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Features	Control Features	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency
Bellnix Co., Ltd. BST12-0.7S06PCM	ITE (Commercial)	1	0.45 in	7.1 mm	27.9 mm	1.1 in	0.28 "	11.4 mm	Non-Isolated PoL Module	Adjustable Output Remote On/Off	Active High Enable	6-SMD Module	0.75 V	5 V	Surface Mount	6 A	-40 °C	85 °C	10 VDC	14 V	91.5 %
Bellnix Co., Ltd. BST12-0.7S10PCM	ITE (Commercial)	1	0.53 in	9.7 mm	33 mm	1.3 in	0.38 in	13.5 mm	Non-Isolated PoL Module	Adjustable Output Remote On/Off	Active High Enable	7-SMD Module	0.75 V	5 V	Surface Mount	10 A	-40 °C	85 °C	10 VDC	14 V	94.5 %
Bellnix Co., Ltd. BST12-0.7S16PCM	ITE (Commercial)	1	0.53 in	9.7 mm	33 mm	1.3 in	0.38 in	13.5 mm	Non-Isolated PoL Module	Adjustable Output Remote On/Off	Active High Enable	7-SMD Module	0.75 V	5 V	Surface Mount	16 A	-40 °C	85 °C	10 VDC	14 V	93.5 %
