8138 Series

Catalog

MULTI-PAIR 16COND 28AWG

Part	Shield Coverage	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Type	Usage	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Ratings	Conductor Material	Cable Type	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]

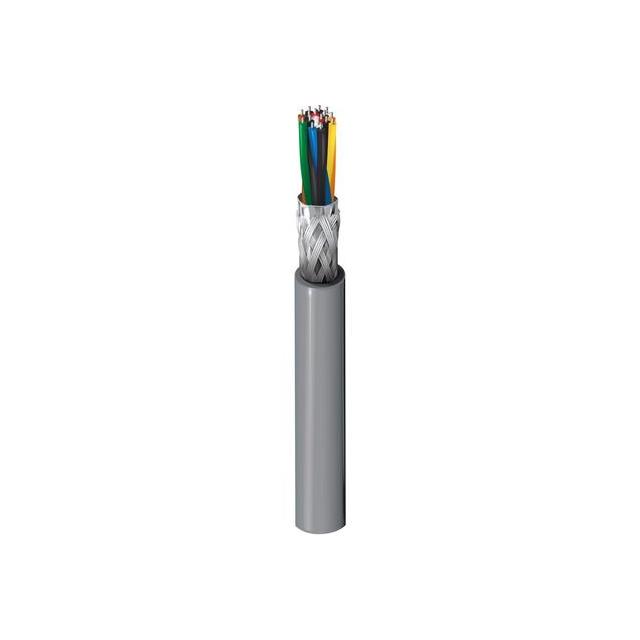

Belden Inc. 8138 0601000	65 % 100 %	Aluminum Copper Tinned	0.33 in	8.38 mm	Foam Polyethylene (FPE)	Braid Foil	Computer	304.8 m	1000 ft	80 °C	-30 ░C	7	36 AWG	Drain Wire	UL Style 2919	Copper Tinned	Multi-Pair	16	Poly-Vinyl Chloride (PVC)	28 AWG	Chrome	0.991 mm	0.039 "

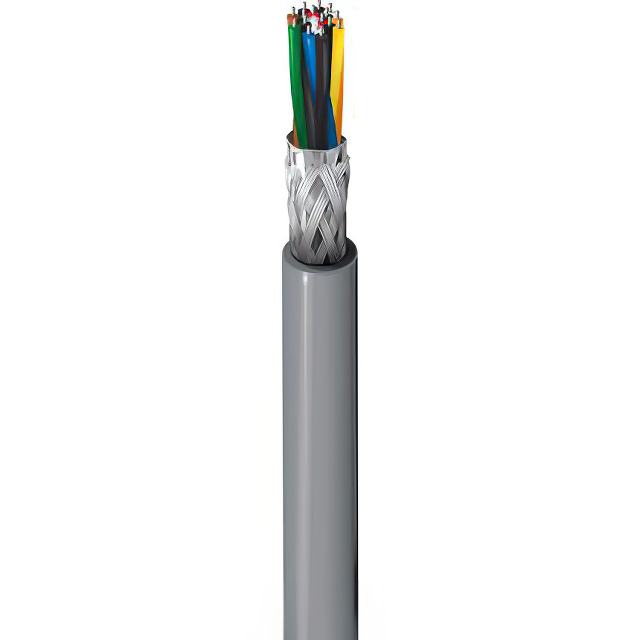

Belden Inc. 8138 060100	65 % 100 %	Aluminum Copper Tinned	0.33 in	8.38 mm	Foam Polyethylene (FPE)	Braid Foil	Computer			80 °C	-30 ░C	7	36 AWG		UL Style 2919	Copper Tinned	Multi-Pair	16	Poly-Vinyl Chloride (PVC)	28 AWG	Chrome	0.991 mm	0.039 "	100 ft	30.5 m
Belden Inc. 8138 060500	65 % 100 %	Aluminum Copper Tinned	0.33 in	8.38 mm	Foam Polyethylene (FPE)	Braid Foil	Computer	152.4 m	500 ft	80 °C	-30 ░C	7	36 AWG	Drain Wire	UL Style 2919	Copper Tinned	Multi-Pair	16	Poly-Vinyl Chloride (PVC)	28 AWG	Chrome	0.991 mm	0.039 "
