307-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K

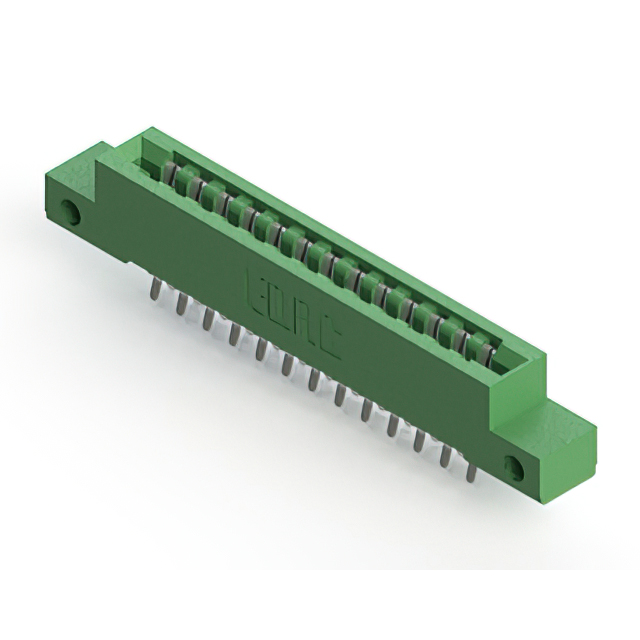

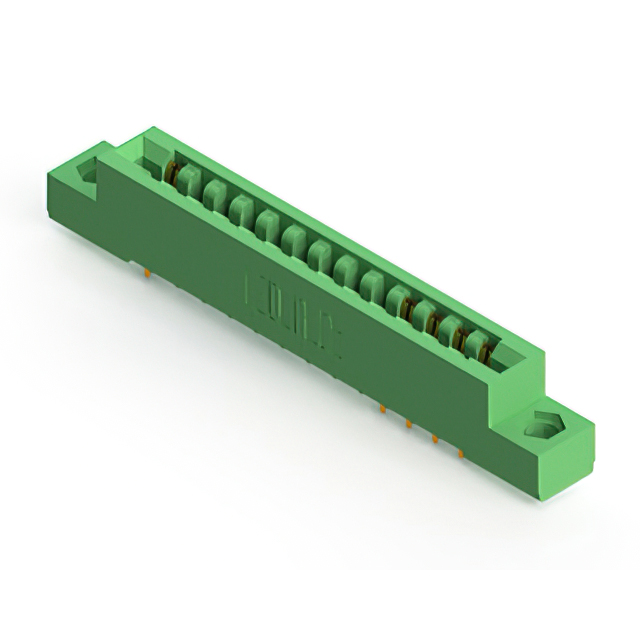

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Features | Contact Material | Pitch | Pitch | Color | Gender | Number of Positions | Termination | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Read Out | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

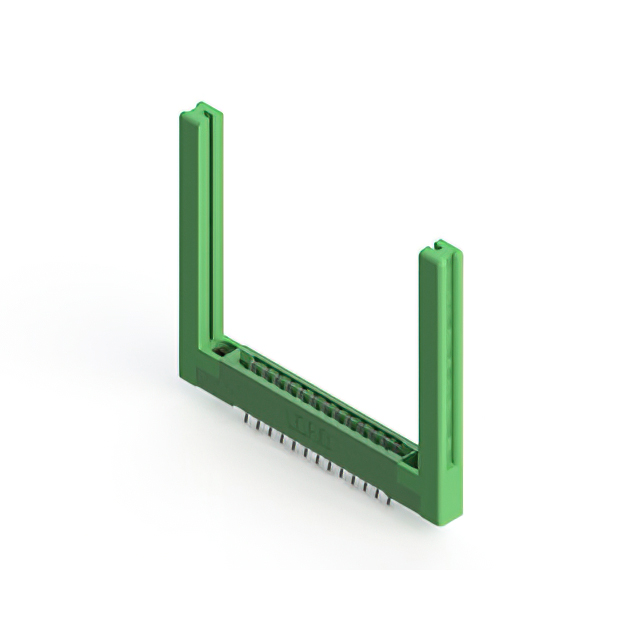

 EDAC Inc. | 2 | Polyester Thermoplastic | Card Extender | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Solder Eyelet(s) | Semi Bellows | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | 2 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Non Specified - Dual Edge | -40 C | 105 ░C | Board Edge Straddle Mount | Gold | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Wire Wrap | Semi Bellows | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 2 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Non Specified - Dual Edge | -40 C | 105 ░C | Through Hole | Tin | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Solder | Semi Bellows | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | Tin | 1 | 1 | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Solder | Semi Bellows | 2 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Non Specified - Dual Edge | -40 C | 105 ░C | Through Hole | Tin | ||||||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Solder | Semi Bellows | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Non Specified - Dual Edge | -40 C | 105 ░C | Board Edge Straddle Mount | Tin | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 52 | Wire Wrap | Semi Bellows | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | 2 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Non Specified - Dual Edge | -40 C | 105 ░C | Through Hole | Gold | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Solder | Semi Bellows | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 0.25 Ám | 10 Áin | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Non Specified - Single Edge | -40 C | 105 ░C | Right Angle Through Hole | Gold | 1 | 1 | |||

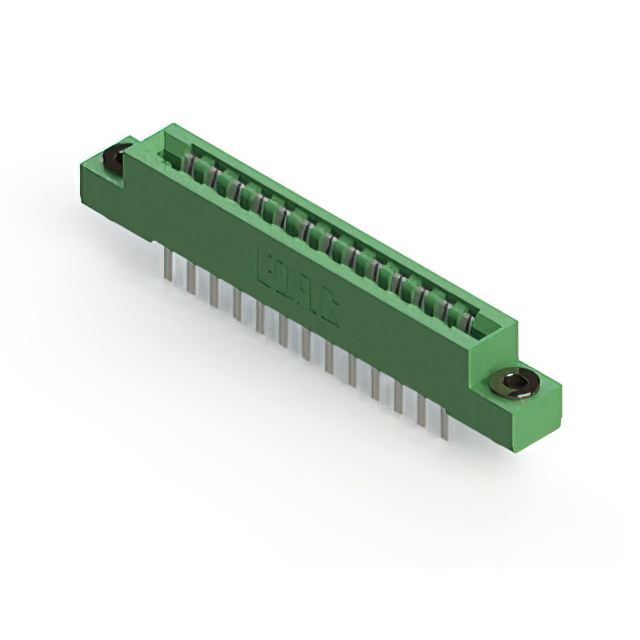

 EDAC Inc. | 2 | Polyester Thermoplastic | Card Guides | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Solder | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 2 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Non Specified - Dual Edge | -40 C | 105 ░C | Through Hole | Gold | ||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 26 | Wire Wrap | Semi Bellows | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | Tin | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Green | Female | 52 | Wire Wrap | Semi Bellows | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Non Specified - Dual Edge | -40 C | 105 ░C | Through Hole | Tin | 1 |
