ASB03512 Series

Catalog

DC AXIAL FAN, 12 V, SQUARE, 35 MM, 15 MM, SLEEVE BEARING, 9.507 CFM

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	RPM	Power (Watts)	Voltage - Rated	Weight	Weight	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Fan Type	Noise	Bearing Type	Features	Static Pressure	Static Pressure
Delta Electronics ASB03512HB-F00	Plastic	Plastic	110 mA	30000 Hrs	5 VDC	13.8 VDC	CE cURus TUV	11000 RPM	1.32 W	12 VDC	14.06 g	0.031 lb	15 mm	70 °C	-10 °C	3 Wire Leads	0.266 m³/min	9.5 CFM	35 mm	Square	35 mm	Tubeaxial	37 dB	Sleeve	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics ASB03512HA-AF00	Plastic	Plastic	60 mA	20000 Hrs	7 V	13.8 VDC	CE cURus VDE	7000 RPM	720 mW	12 VDC	10.43 g	0.023 lb	10 mm	70 °C	-10 °C	3 Wire Leads	0.154 mł/min	5.5 CFM	35 mm	Square	35 mm	Tubeaxial	22 dB(A)	Sleeve	Locked Rotor Protection Speed Sensor (Tach)	27 Pa	0.108 in H2O

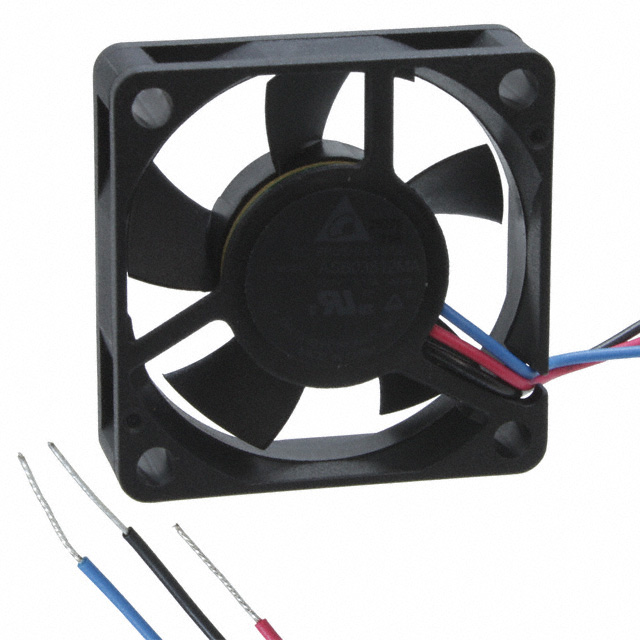

Delta Electronics ASB03512MA-AF00	Plastic	Plastic	50 mA	20000 Hrs	7 V	13.8 VDC	CE cURus TUV	5800 RPM	600 mW	12 VDC	9.98 g	0.022 lb	10 mm	70 °C	-10 °C	3 Wire Leads	0.126 m³/min	4.5 CFM	35 mm	Square	35 mm	Tubeaxial	18.5 dB(A)	Sleeve	Locked Rotor Protection Speed Sensor (Tach)	19.6 Pa	0.079 in H2O
Delta Electronics ASB03512MA-A	Plastic	Plastic	50 mA	20000 Hrs	7 V	13.8 VDC	CE cURus TUV	5800 RPM	600 mW	12 VDC	9.98 g	0.022 lb	10 mm	70 °C	-10 °C	2 Wire Leads	0.126 m³/min	4.5 CFM	35 mm	Square	35 mm	Tubeaxial	18.5 dB(A)	Sleeve		19.6 Pa	0.079 in H2O
