NCS20091 Series

Operational Amplifier, 5.5V Rail-to-Rail Input and Output, 350 kHz, Single

Catalog

Operational Amplifier, 5.5V Rail-to-Rail Input and Output, 350 kHz, Single

Part	Voltage - Input Offset	Mounting Type	Voltage - Supply Span (Max) [Max]	Current - Supply	Package / Case	Current - Output / Channel	Output Type	Voltage - Supply Span (Min) [Min]	Slew Rate	Gain Bandwidth Product	Amplifier Type	Number of Circuits	Supplier Device Package	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Qualification	Supplier Device Package	Supplier Device Package	Supplier Device Package
ON Semiconductor NCS20091SN3T1G	500 çV	Surface Mount	5.5 V	23 µA	SOT-23-5 Thin TSOT-23-5	8.5 mA	Rail-to-Rail	1.8 V	0.15 V/µs	350 kHz	General Purpose	1	5-TSOP	1 pA	125 °C	-40 °C
ON Semiconductor NCV20091SN3T1G	500 çV	Surface Mount	5.5 V	23 µA	SOT-23-5 Thin TSOT-23-5	8.5 mA	Rail-to-Rail	1.8 V	0.15 V/µs	350 kHz	General Purpose	1	5-TSOP	1 pA	125 °C	-40 °C	Automotive	AEC-Q100

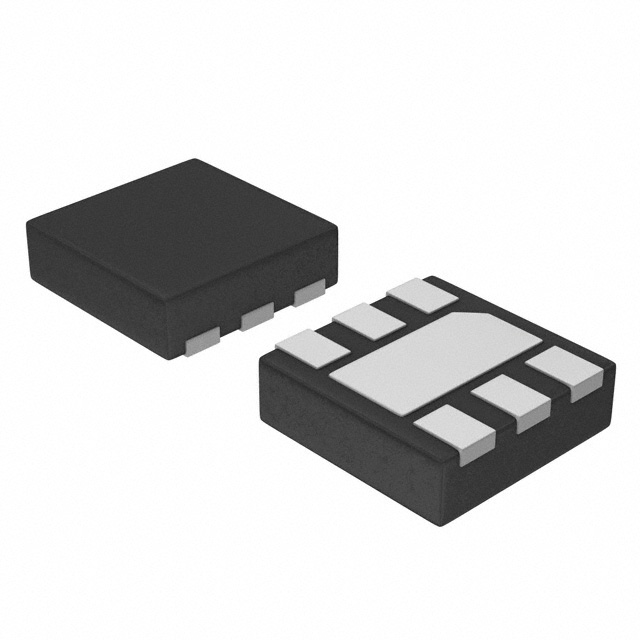

ON Semiconductor NCS20091MUTAG	500 çV	Surface Mount	5.5 V	23 µA	6-UFDFN Exposed Pad	8.5 mA	Rail-to-Rail	1.8 V	0.15 V/µs	350 kHz	General Purpose	1	6-UDFN (1.6x1.6)	1 pA	125 °C	-40 °C	Automotive	AEC-Q100
ON Semiconductor NCS20091SQ3T2G	500 çV	Surface Mount	5.5 V	23 µA	5-TSSOP SC-70-5 SOT-353	8.5 mA	Rail-to-Rail	1.8 V	0.15 V/µs	350 kHz	General Purpose	1		1 pA	125 °C	-40 °C			SC-88A	SOT-353	SC-70-5
ON Semiconductor NCS20091SN2T1G	500 çV	Surface Mount	5.5 V	23 µA	SOT-23-5 Thin TSOT-23-5	8.5 mA	Rail-to-Rail	1.8 V	0.15 V/µs	350 kHz	General Purpose	1	5-TSOP	1 pA	125 °C	-40 °C

Catalog

Operational Amplifier, 5.5V Rail-to-Rail Input and Output, 350 kHz, Single

Key Features

• Rail−to−Rail Input and Output

• Wide Supply Range: 1.8 to 5.5 V

• Wide Bandwidth: 350 kHz

• High Slew Rate: 0.15 V/µs at V= 1.8 V

• Low Supply Current: 20 µA per Channel at VS= 1.8 V

• Low Input Bias Current: 1 pA Typical

• Wide Temperature Range: −40 to 125°C

• Available in a Variety of Packages

• NCV Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements; AEC−Q100Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant

Description

The NCS2009x series operational amplifiers provide rail−to−rail input and output operation, 350 kHz bandwidth, and are available in single, dual, and quad configurations. Rail−to−rail operation gives designers use of the entire supply voltage range while taking advantage of the 350 kHz bandwidth. The NCS2009x can operate on supply voltages from 1.8 to 5.5 V over a temperature range from −40 to 125°C. At a 1.8 V supply, this device has a slew rate of 0.15 V/µs while consuming only 20 µA of quiescent current per channel. Since this is a CMOS device, high input impedance and low bias currents make it ideal for interfacing to a wide variety of signal sensors. The NCS2009x devices are available in a variety of compact packages.Product Family:
