FGU.1M Series
Manufacturer: LEMO
Beta
⌘K

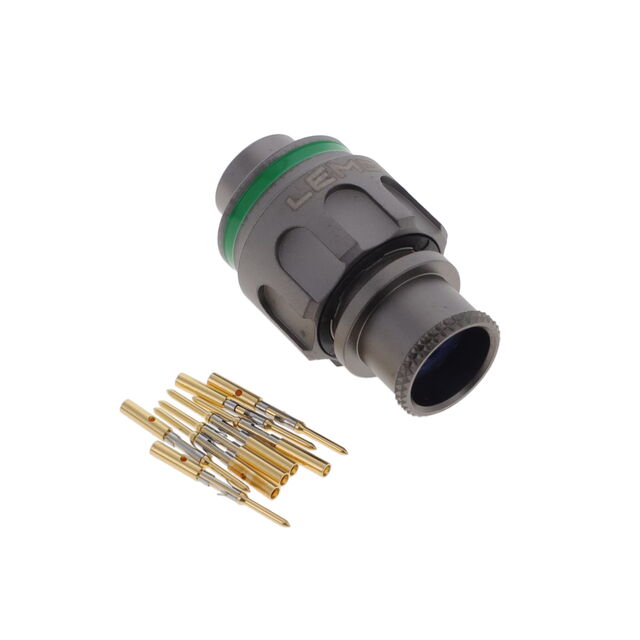

CONN PLUG MALE 8POS GOLD CRIMP
| Part | Current Rating (Amps) | Orientation | Shell Finish | Color | Cable Opening | Cable Opening | Primary Material | Number of Positions | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Shielding | Fastening Type | Shell Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Connector Type | Ingress Protection | Contact Finish - Mating | Features | Termination | Contact Material | Insert Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 5 A | U | Nickel | Gray | 0.382 in | 9.7 mm | Metal | 8 | Aerospace Automotive Aviation Military | 200 °C | -55 C | 308 | Shielded | Threaded | Aluminum Alloy | 39.4 µin | 1 µm | Plug Male Pins | IP68 - Dust Tight Waterproof | Gold | Coupling Nut | Crimp | Brass | Polyetheretherketone (PEEK) | Free Hanging (In-Line) |
