M80-583 Series

Catalog

13+13 POS. MALE DIL 24-28AWG CABLE CONN. KIT, REVERSE FIX ROHS COMPLIANT: YES

Part	Pitch [x]	Pitch [x]	Cable Termination	Contact Finish	Features	Color	Wire Type	Row Spacing	Row Spacing	Number of Positions	Connector Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type
Harwin Inc. M80-5832605	0.079 in	2 mm	Crimp	Gold	Jackscrews Polarizing Key	Black	Discrete	2 mm	0.079 in	26	Header	2	0.25 Ám	10 Áin	Free Hanging (In-Line)	24 AWG	28 AWG	Male Pin
Harwin Inc. M80-5832005	0.079 in	2 mm	Crimp	Gold	Jackscrews Polarizing Key	Black	Discrete	2 mm	0.079 in	20	Header	2	0.25 Ám	10 Áin	Free Hanging (In-Line)	24 AWG	28 AWG	Male Pin
Harwin Inc. M80-5830405	0.079 in	2 mm	Crimp	Gold	Jackscrews Polarizing Key	Black	Discrete	2 mm	0.079 in	4	Header	2	0.25 Ám	10 Áin	Free Hanging (In-Line)	24 AWG	28 AWG	Male Pin

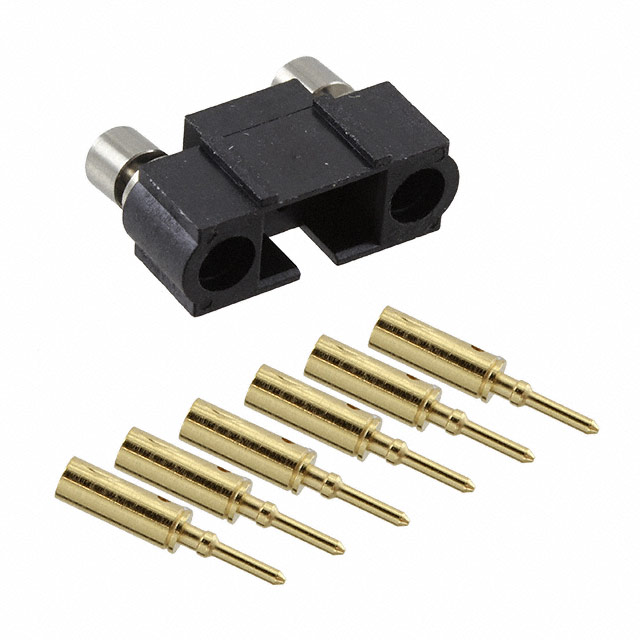

Harwin Inc. M80-5830605	0.079 in	2 mm	Crimp	Gold	Polarizing Key	Black	Discrete	2 mm	0.079 in	6	Header	2	0.25 Ám	10 Áin	Free Hanging (In-Line)	24 AWG	28 AWG	Male Pin
Harwin Inc. M80-5835005	0.079 in	2 mm	Crimp	Gold	Jackscrews Polarizing Key	Black	Discrete	2 mm	0.079 in	50	Header	2	0.25 Ám	10 Áin	Free Hanging (In-Line)	24 AWG	28 AWG	Male Pin
