115-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

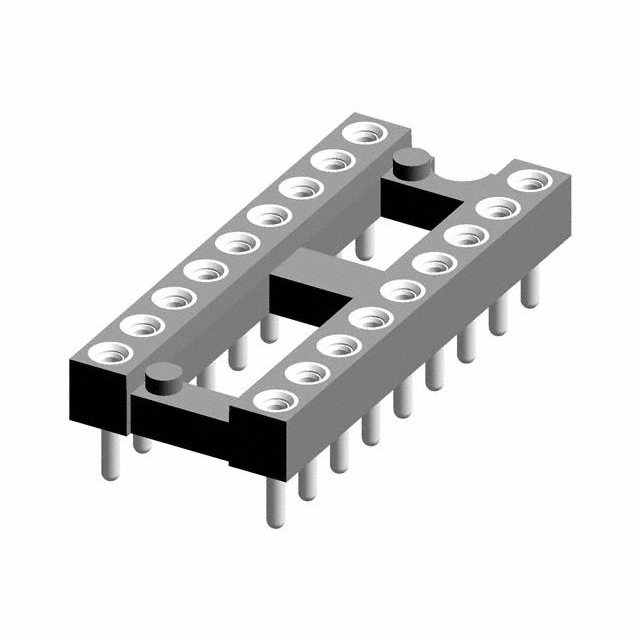

CONN IC DIP SOCKET 18POS GOLD
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Contact Material - Mating | Termination | Housing Material | Contact Material - Post [custom] | Features | Contact Finish - Mating | Number of Positions or Pins (Grid) | Operating Temperature [Min] | Operating Temperature [Max] | Type | Type | Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Mounting Type | Contact Finish Thickness - Mating | Type [custom] | Type [custom] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 18 | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | ||||

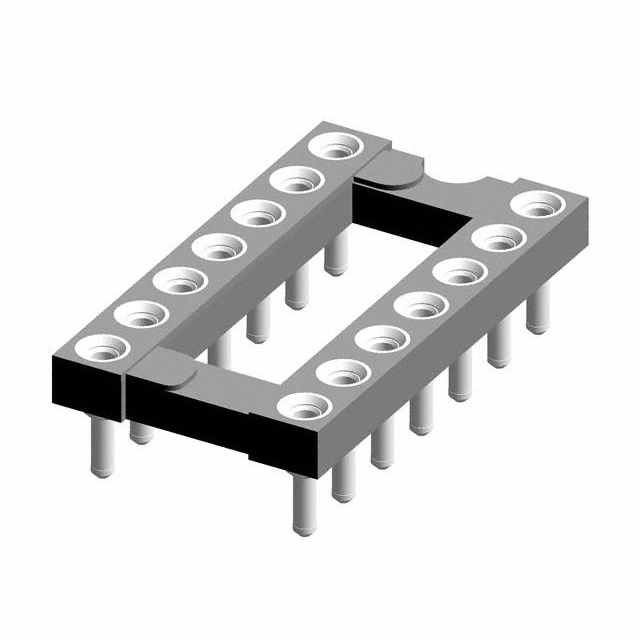

 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 14 | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | ||||

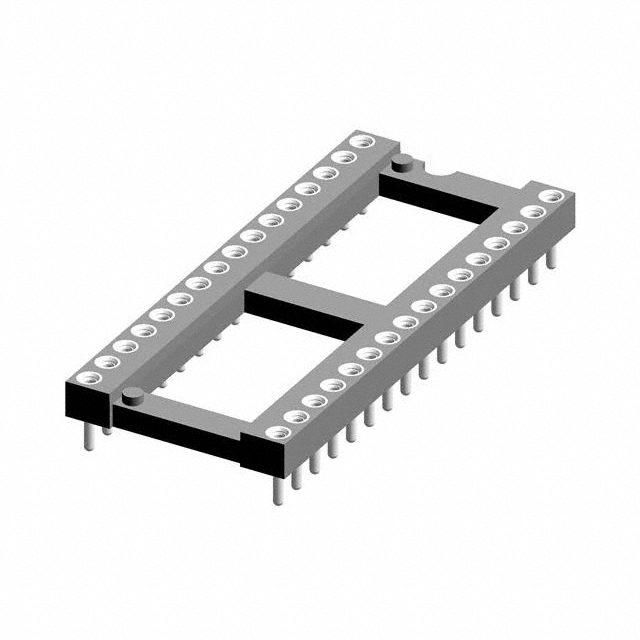

 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 32 | -55 C | 125 °C | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | 15.24 mm | 0.6 in | ||||

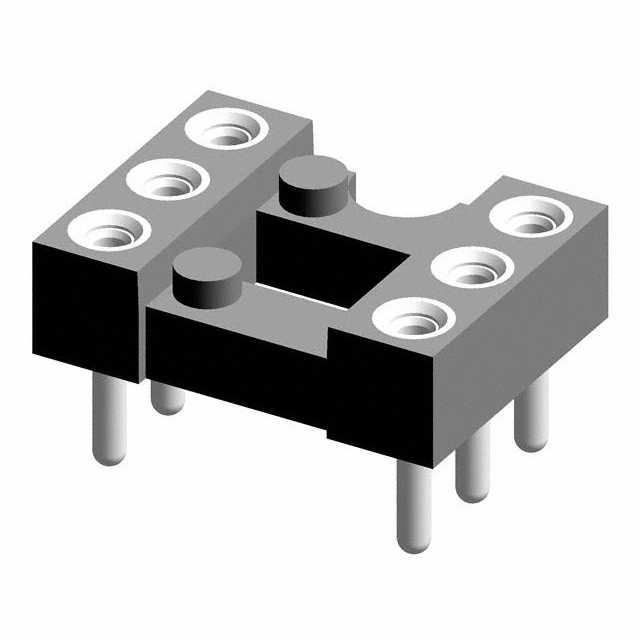

 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 6 | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | 3 positions or pins | 2 | ||

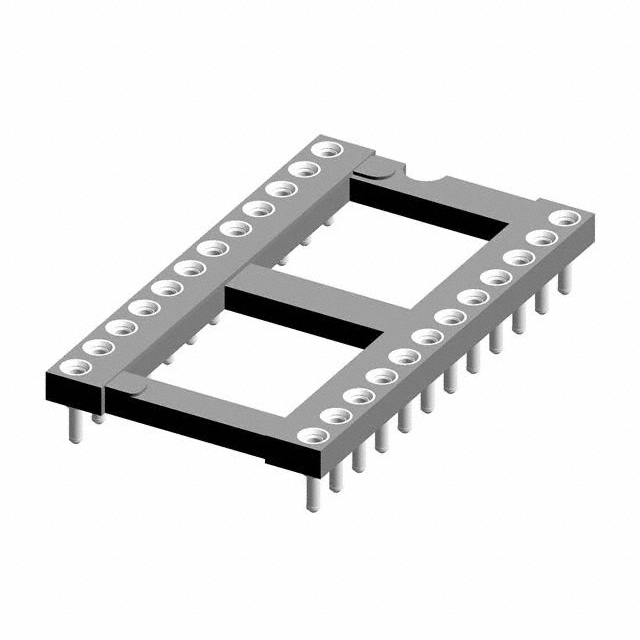

 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 24 | -55 C | 125 °C | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | 15.24 mm | 0.6 in | 2 | 12 | ||
 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 10 | -55 C | 125 °C | 5.08 mm | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | 5 | 2 | |||

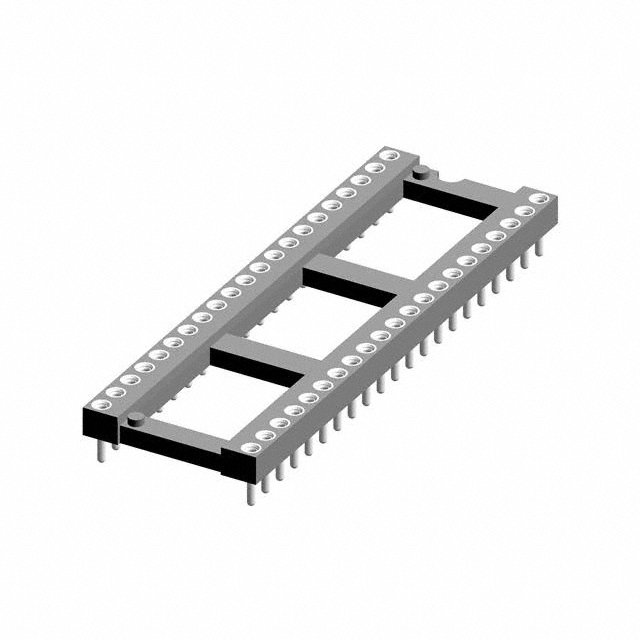

 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 42 | -55 C | 125 °C | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | 15.24 mm | 0.6 in | ||||

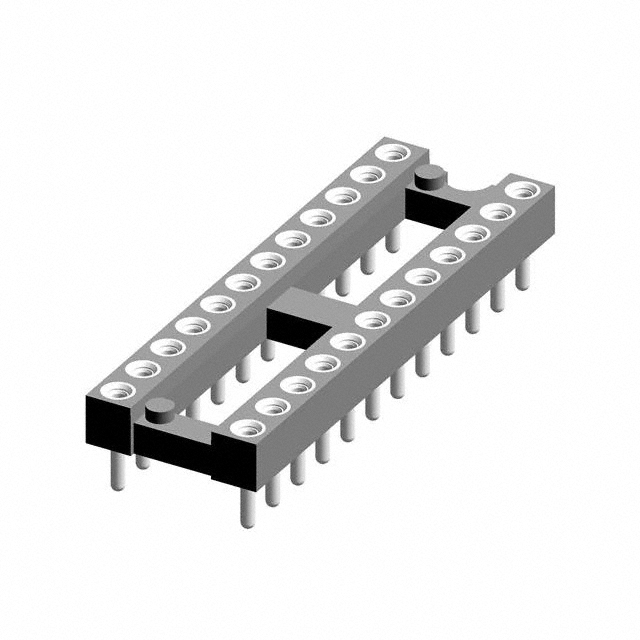

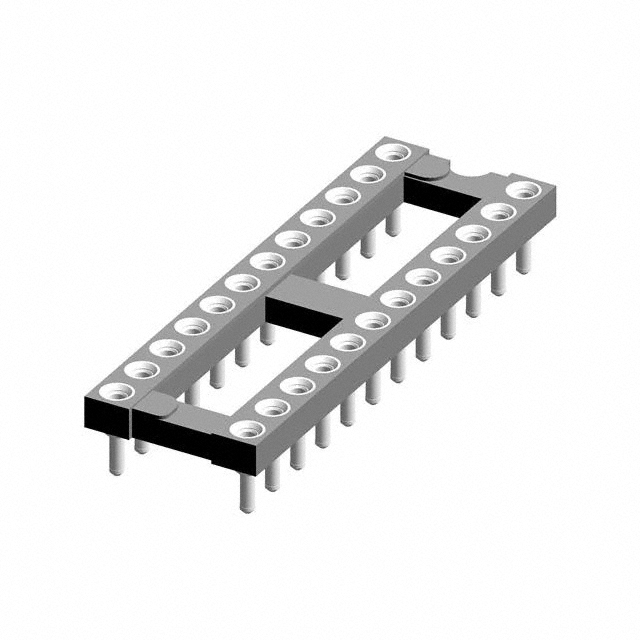

 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 24 | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | 2 | 12 | ||
 Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 8 | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash | 4 | 2 | ||
Preci-Dip | 0.095 " | 2.41 mm | UL94 V-0 | 10 mOhm | 1 A | Beryllium Copper | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | Open Frame | Gold | 32 | -55 C | 125 °C | 0.4 in | DIP | Tin | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | Flash |
