796691 Series

Catalog

TERM BLK 6POS SIDE ENTRY 5MM PCB

Part	Screw Material - Plating	Screw Thread	Contact Material - Plating	Torque - Screw	Torque - Screw	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Pitch	Pitch	Number of Levels	Mating Orientation	Mounting Type	Features	Wire Gauge [Max]	Wire Gauge [Min]	Voltage	Color	Wire Termination	Current	Positions Per Level
TE Connectivity AMP Connectors 796691-6	Brass - Nickel Plated	M3	Brass - Tin Plated	7 Lb-In	0.79 Nm	Brass	Tin Plated	0.197 in	5 mm	2	Horizontal with Board	Through Hole	Interlocking (Side)	30 AWG	12 AWG	300 VDC	Blue	Screw - Rising Cage Clamp	17.5 A	6

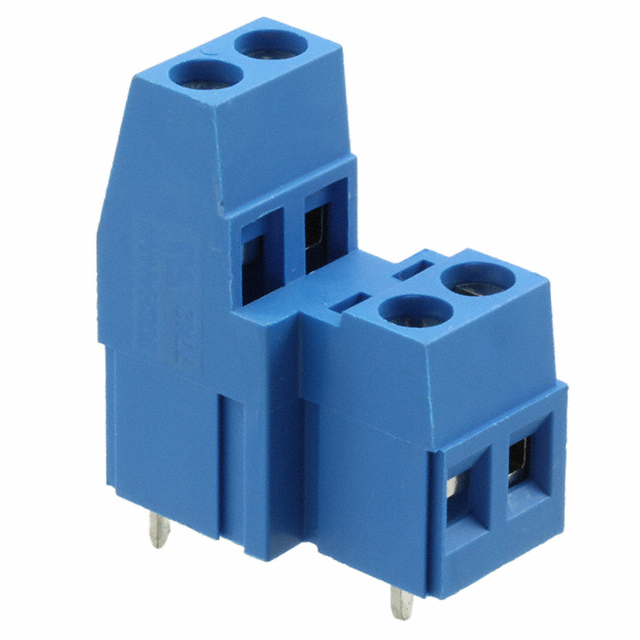

TE Connectivity AMP Connectors 796691-2	Brass - Nickel Plated	M3	Brass - Tin Plated	7 Lb-In	0.79 Nm	Brass	Tin Plated	0.197 in	5 mm	2	Horizontal with Board	Through Hole	Interlocking (Side)	30 AWG	12 AWG	300 VDC	Blue	Screw - Rising Cage Clamp	17.5 A	2
TE Connectivity AMP Connectors 796691-8	Brass - Nickel Plated	M3	Brass - Tin Plated	7 Lb-In	0.79 Nm	Brass	Tin Plated	0.197 in	5 mm	2	Horizontal with Board	Through Hole	Interlocking (Side)	30 AWG	12 AWG	300 VDC	Blue	Screw - Rising Cage Clamp	17.5 A	8
