ACSL-6410 Series

Catalog

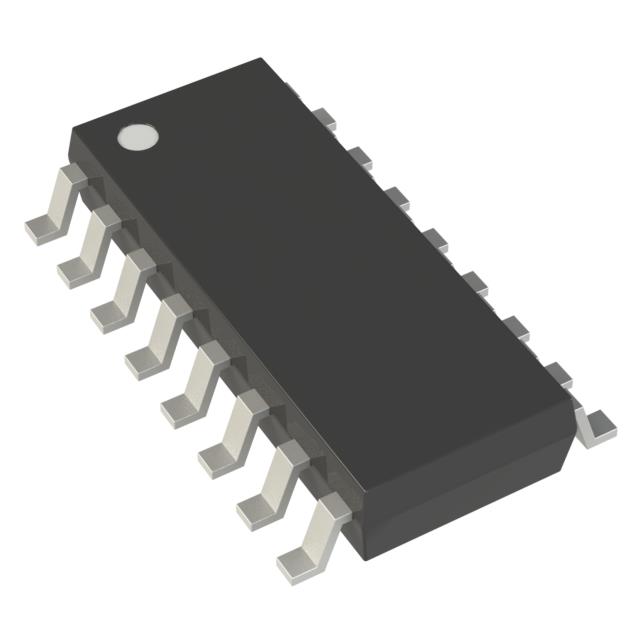

OPTOISO 2.5KV 4CH OPEN COLL 16SO

Part	Common Mode Transient Immunity (Min) [Min]	Data Rate	Supplier Device Package	Output Type	Voltage - Forward (Vf) (Typ)	Propagation Delay tpLH / tpHL (Max) [Max]	Mounting Type	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Package / Case	Package / Case	Input Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Current - Output / Channel
Broadcom Limited ACSL-6410-06TE	10 kV/µs	15 Mbps	16-SOIC	Open Collector Schottky Clamped	1.52 V	100 ns	Surface Mount	2500 Vrms	12 ns	30 ns	3	1	16-SOIC	0.154 in 3.9 mm	DC	5.5 V	3 V	4	-40 C	100 °C	15 mA	50 mA
Broadcom Limited ACSL-6410-00TE	10 kV/µs	15 Mbps	16-SOIC	Open Collector Schottky Clamped	1.52 V	100 ns	Surface Mount	2500 Vrms	12 ns	30 ns	3	1	16-SOIC	0.154 in 3.9 mm	DC	5.5 V	3 V	4	-40 C	100 °C	15 mA	50 mA
