8422 Series
Manufacturer: Belden Inc.
Beta
⌘K

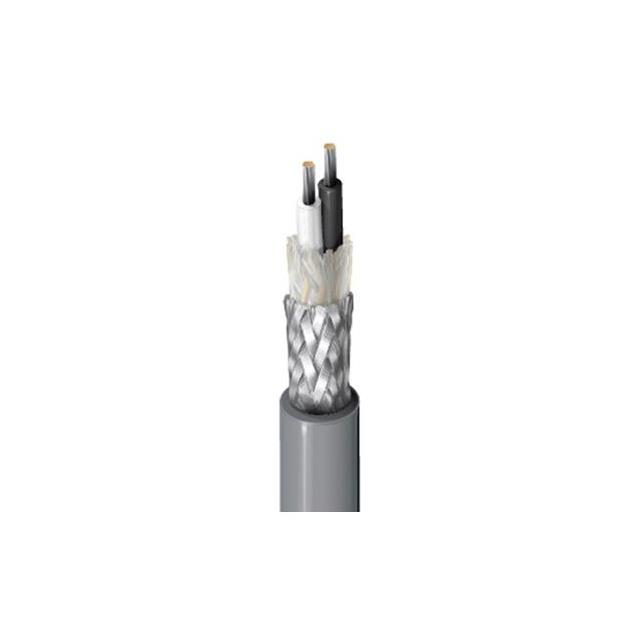

2 #22 PE CBRD BRD PVC
| Part | Shield Material | Shield Coverage | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Conductor Insulation | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Shield Type | Jacket Color | Jacket (Insulation) Material | Number of Conductors | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned Cotton | 85 % | Copper Tinned | 80 °C | -40 C | 152.4 m | 500 ft | Polyethylene (PE) | Audio | 5.87 mm | 0.231 in | 22 AWG | 0.029 in | 0.737 mm | 16 | 34 AWG | 1 kV | Double Braid | Chrome | Poly-Vinyl Chloride (PVC) | 2 | Microphone |
 Belden Inc. | Copper Tinned Cotton | 85 % | Copper Tinned | 80 °C | -40 C | 304.8 m | 1000 ft | Polyethylene (PE) | Audio | 5.87 mm | 0.231 in | 22 AWG | 0.029 in | 0.737 mm | 16 | 34 AWG | 1 kV | Double Braid | Chrome | Poly-Vinyl Chloride (PVC) | 2 | Microphone |
