NCN4555 Series

SIM Card Power Supply and Level Translator

Catalog

SIM Card Power Supply and Level Translator

Part	Contents	Type	Function	Utilized IC / Part	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Translator Type	Channel Type	Voltage - VCCA [Min]	Voltage - VCCA [Max]	Package / Case	Channels per Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package	Number of Circuits	Features	Mounting Type

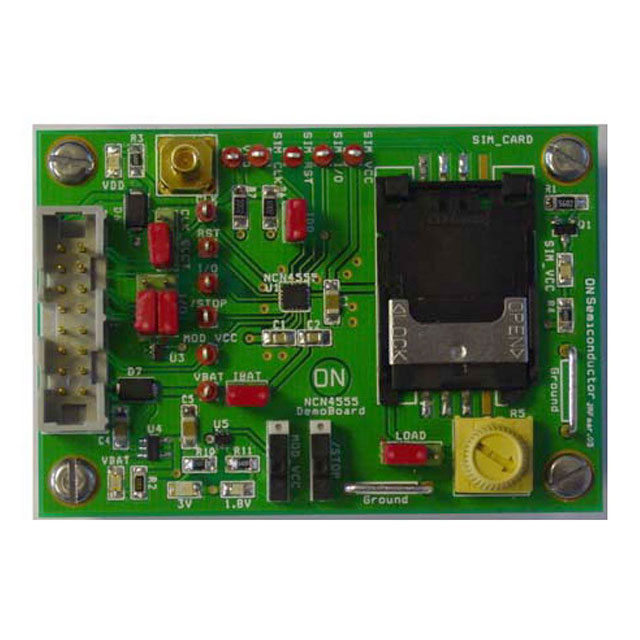

ON Semiconductor NCN4555EVB	Board(s)	Interface	SIM Card	NCN4555
ON Semiconductor NCN4555MNR2					5.5 V	2.7 V	Voltage Level	Bidirectional	1.6 V	5.5 V	16-VFQFN Exposed Pad	1	85 °C	-40 °C	Non-Inverted	16-QFN (3x3)	1	SIM Card Interface	Surface Mount
ON Semiconductor NCN4555MNR2G					5.5 V	2.7 V	Voltage Level	Bidirectional	1.6 V	5.5 V	16-WFQFN Exposed Pad	1	85 °C	-40 °C	Non-Inverted	16-QFN (3x3)	1	SIM Card Interface	Surface Mount

Catalog

SIM Card Power Supply and Level Translator

Key Features

• Supports 1.8V or 3.0V Operating SIM Card

• The LDO is able to supply more than 50mA under 1.8V and 3.0V

• Built-in pullup resistor for I/O pin in both directions.

• All pins are fully ESD protected according to ISO-7816 Specifications - ESD Protection on SIM pins in excess of 7kV (Human Body Model)

• Supports more than 5MHz clock

Description

The NCN4555 is a level shifter analog circuit designed to translate the voltages between a SIM Card and an external microcontroller or MPU. A built-in LDO-type DC/DC converter makes the NCN4555 useable to drive 1.8 V and 3.0 V SIM card. The device fulfills the ISO7816-3 smart card interface standard as well as GSM 11.11 and related (11.12 and 11.18) and 3G mobile requirements (IMT-2000/3G TS 31.101).
