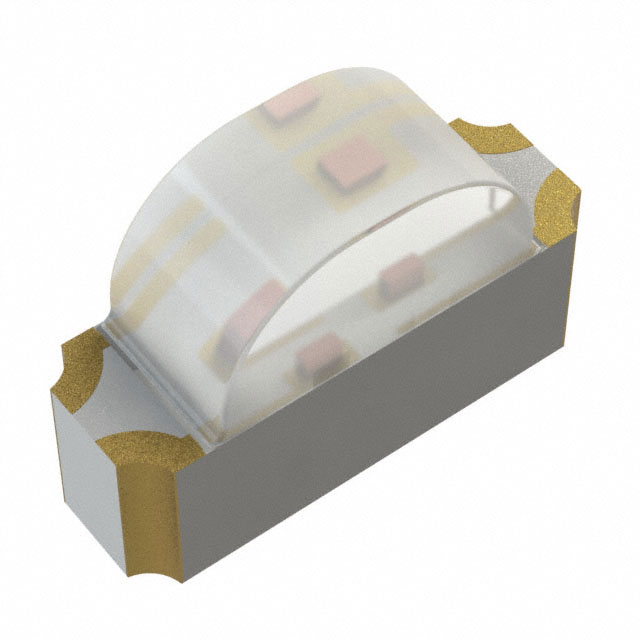

HSMF-C146 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED BLUE/RED CLEAR SMD R/A
| Part | Color | Lens Style | Supplier Device Package | Lens Transparency | Height (Max) [z] | Current - Test | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Package / Case | Millicandela Rating | Configuration | Wavelength - Peak | Mounting Type | Viewing Angle | Lens Size [y] | Lens Size [x] | Wavelength - Dominant | Lens Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Blue Red | Rectangle with Domed Top | SMD | Clear | 1.1 mm | 20mA Blue 20mA Red | 3 mm | 2 mm | 2.3 V 3.4 V | 4-SMD | 75 mcd 79 mcd | Common Anode | 459 nm 644 nm | Right Angle Surface Mount | 120 ° | 1 mm | 2 mm | 464nm Blue 632nm Red | Colorless |
