MEZS84801 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

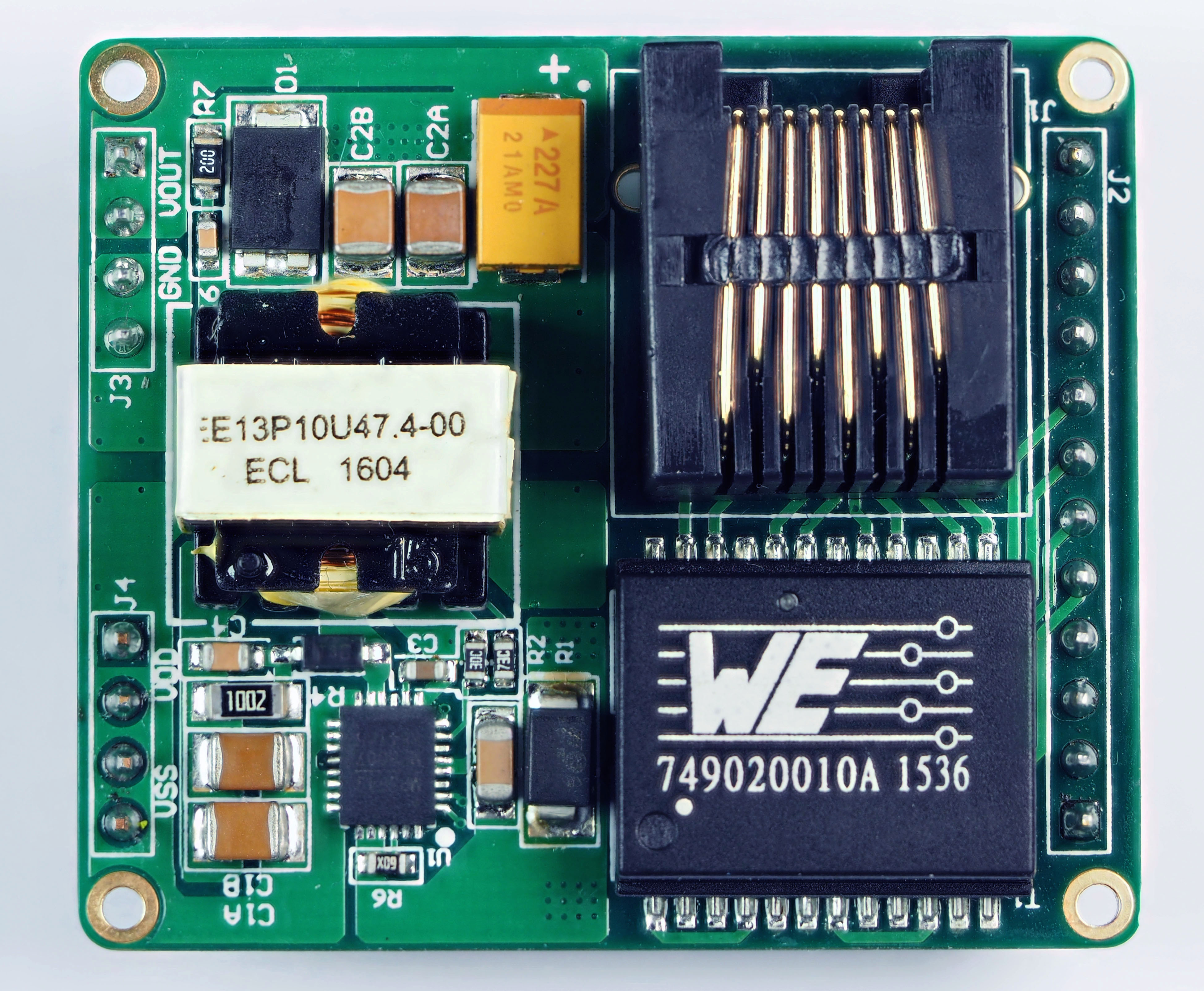

MEZ PLUG AND PLAY 48V, 12W, POE POWER SUPPLY, IEEE 802.3AF COMPLIANT
| Part | Type | Power (Watts) | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Voltage - Input (Min) [Min] | Package / Case | Applications | Efficiency | Current - Output (Max) [Max] | Mounting Type | Voltage - Output 1 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Isolated PoE (Power over Ethernet) Module Isolated PoE Module | 12 W | 57 V | 0 °C | 85 °C | 1.77 in | 45 mm | 39 mm | 0.68 in | 17.3 mm | 1.54 in | 1 | 37 V | 20-SMD Module | ITE (Commercial) | 84.5 % | 1 A | Surface Mount | 12 V | OCP OTP OVP |
