TRF372017 Series

300 MHz to 4.8GHz Quadrature Modulator with integrated wideband PLL/VCO

Catalog

300 MHz to 4.8GHz Quadrature Modulator with integrated wideband PLL/VCO

Part	LO Frequency [Min]	LO Frequency [Max]	P1dB	Test Frequency	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Output Power	Current - Supply	RF Frequency [Max]	RF Frequency [Min]	Mounting Type	Noise Floor	Type	For Use With/Related Products	Frequency [Min]	Frequency [Max]	Supplied Contents
Texas Instruments TRF372017IRGZR	300 MHz	4.8 GHz	12 dBm	2.7 GHz	48-VFQFN Exposed Pad	48-VQFN (7x7)	3.6 V 5.5 V	3 V 4.5 V	Upconverter	3 dBm	200 mA	4.8 GHz	300 MHz	Surface Mount	-153 dBm/Hz
Texas Instruments TRF372017IRGZT	300 MHz	4.8 GHz	12 dBm	2.7 GHz	48-VFQFN Exposed Pad	48-VQFN (7x7)	3.6 V 5.5 V	3 V 4.5 V	Upconverter	3 dBm	200 mA	4.8 GHz	300 MHz	Surface Mount	-153 dBm/Hz

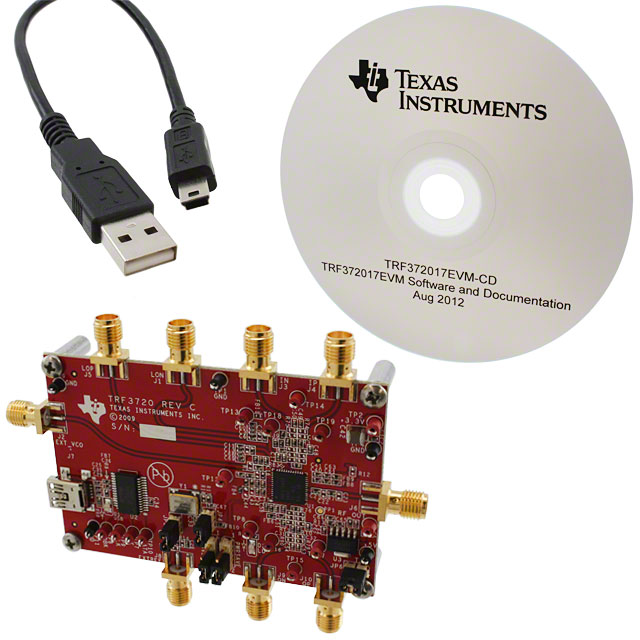

Texas Instruments TRF372017EVM																Modulator	TRF372017	300 MHz	4.8 GHz	Board(s)

Catalog

300 MHz to 4.8GHz Quadrature Modulator with integrated wideband PLL/VCO

Key Features

• Fully Integrated PLL/VCO and IQ ModulatorLO Frequency from 300 MHz to 4.8 GHz76-dBc Single-Carrier WCDMA ACPR at –8-dBmChannel PowerOIP3 of 26 dBmP1dB of 11.5 dBmInteger/Fractional PLLPhase Noise –132 dBc/Hz(at 1 MHz, fVCOof 2.3 GHz)Low Noise Floor: –160 dBm/HzInput Reference Frequency Range: Up to160 MHzVCO Frequency Divided by 1-2-4-8 OutputAPPLICATIONSWireless InfrastructureCDMA: IS95, UMTS, CDMA2000,TD-SCDMATDMA: GSM, IS-136, EDGE/UWC-136LTEWireless Local LoopPoint-to-Point Wireless AccessWireless MAN Wideband TransceiversAll other trademarks are the property of their respective ownersFully Integrated PLL/VCO and IQ ModulatorLO Frequency from 300 MHz to 4.8 GHz76-dBc Single-Carrier WCDMA ACPR at –8-dBmChannel PowerOIP3 of 26 dBmP1dB of 11.5 dBmInteger/Fractional PLLPhase Noise –132 dBc/Hz(at 1 MHz, fVCOof 2.3 GHz)Low Noise Floor: –160 dBm/HzInput Reference Frequency Range: Up to160 MHzVCO Frequency Divided by 1-2-4-8 OutputAPPLICATIONSWireless InfrastructureCDMA: IS95, UMTS, CDMA2000,TD-SCDMATDMA: GSM, IS-136, EDGE/UWC-136LTEWireless Local LoopPoint-to-Point Wireless AccessWireless MAN Wideband TransceiversAll other trademarks are the property of their respective owners

Description

TRF372017 is a high-performance, direct up-conversion device, integrating a high-linearity, low-noise IQ modulator and an integer-fractional PLL/VCO. The VCO uses integrated frequency dividers to achieve a wide, continuous tuning range of 300 MHz to 4800 MHz. The LO is available as an output with independent frequency dividers. The device also accepts input from an external LO or VCO. The modulator baseband inputs can be biased either internally or externally. Internal DC offset adjustment enables carrier cancellation. The device is controlled through a 3-wire serial programming interface (SPI). A control pin invokes power-save mode to reduce power consumption while keeping the VCO locked for fast start-up. TRF372017 is a high-performance, direct up-conversion device, integrating a high-linearity, low-noise IQ modulator and an integer-fractional PLL/VCO. The VCO uses integrated frequency dividers to achieve a wide, continuous tuning range of 300 MHz to 4800 MHz. The LO is available as an output with independent frequency dividers. The device also accepts input from an external LO or VCO. The modulator baseband inputs can be biased either internally or externally. Internal DC offset adjustment enables carrier cancellation. The device is controlled through a 3-wire serial programming interface (SPI). A control pin invokes power-save mode to reduce power consumption while keeping the VCO locked for fast start-up.
