9GV1512 Series

Catalog

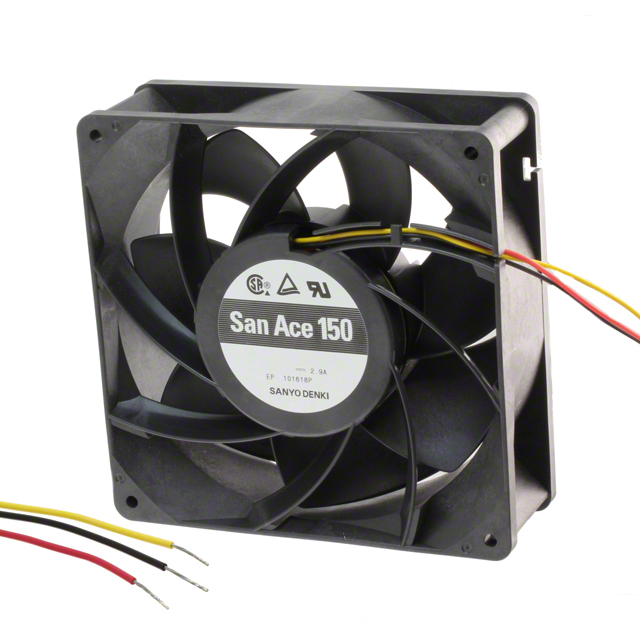

FAN AXIAL 150X50MM 12VDC WIRE

Part	Material - Blade	Air Flow	Air Flow	Lifetime @ Temp.	Current Rating (Amps)	Material - Frame	Width [y]	Bearing Type	Approval Agency	Termination	Power (Watts)	Voltage - Rated	RPM	Weight [custom]	Weight [custom]	Features	Noise	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Sanyo Denki America Inc. 9GV1512P5H03	Plastic	300 CFM	8.4 mł/min	40000 Hrs	2.9 A	Plastic	50 mm	Ball	CSA TUV UL	4 Wire Leads	34.8 W	12 VDC	3900 RPM	0.993 lb	450.42 g	PWM Control Speed Sensor (Tach)	61 dB(A)	150 mm	150 mm	Tubeaxial	209.2 Pa	0.84 in H2O
Sanyo Denki America Inc. 9GV1512H5021	Plastic	300 CFM	8.4 mł/min	40000 Hrs	2.9 A	Plastic	50 mm	Ball	CSA TUV UL	2 Wire Leads	34.8 W	12 VDC	3900 RPM	0.993 lb	450.42 g		61 dB(A)	150 mm	150 mm	Tubeaxial	209.2 Pa	0.84 in H2O	10.2 VDC	13.8 VDC	-20 ░C	70 °C
Sanyo Denki America Inc. 9GV1512H501	Plastic	300 CFM	8.4 mł/min	40000 Hrs	2.9 A	Plastic	50 mm	Ball	CSA TUV UL	3 Wire Leads	34.8 W	12 VDC	3900 RPM	0.993 lb	450.42 g	Speed Sensor (Tach)	61 dB(A)	150 mm	150 mm	Tubeaxial	209.2 Pa	0.84 in H2O	10.2 VDC	13.8 VDC	-20 ░C	70 °C
Sanyo Denki America Inc. 9GV1512M5011	Plastic	224 CFM	6.27 mł/min	40000 Hrs	1.2 A	Plastic	50 mm	Ball	CSA TUV UL	3 Wire Leads	14.4 W	12 VDC	3000 RPM	0.993 lb	450.42 g	Speed Sensor (Tach)	53 dB	150 mm	150 mm	Tubeaxial	132 Pa	0.53 in H2O	10.2 VDC	13.8 VDC	-20 ░C	70 °C
