DC10 Series
Manufacturer: Kingbright
Beta
⌘K
LED CBI 10-SEG RED THROUGH HOLE
| Part | Millicandela Rating | Voltage Rating | Mounting Type | Wavelength - Peak | Current | Color | Lens Type | Configuration | Lens Style | Lens Size [x] | Lens Size [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|

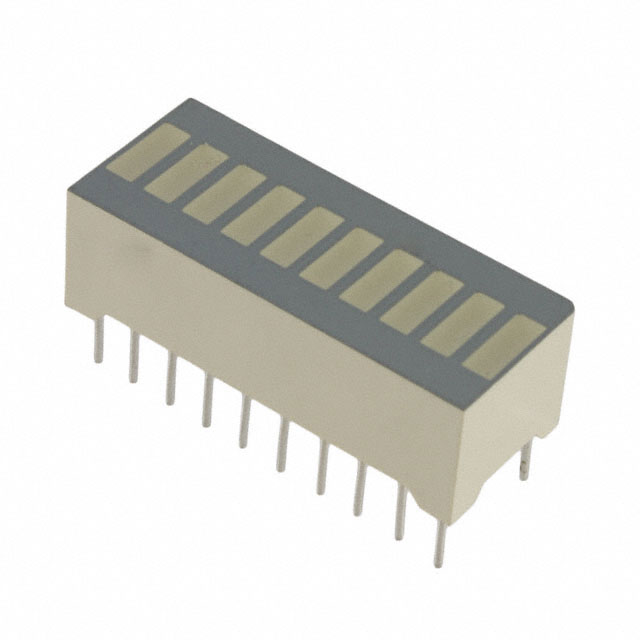

 Kingbright | 9 mcd | 2 V | Through Hole | 627 nm | 30 mA | Red (x 10) | Diffused White | Bar - 10 Wide DIP | |||

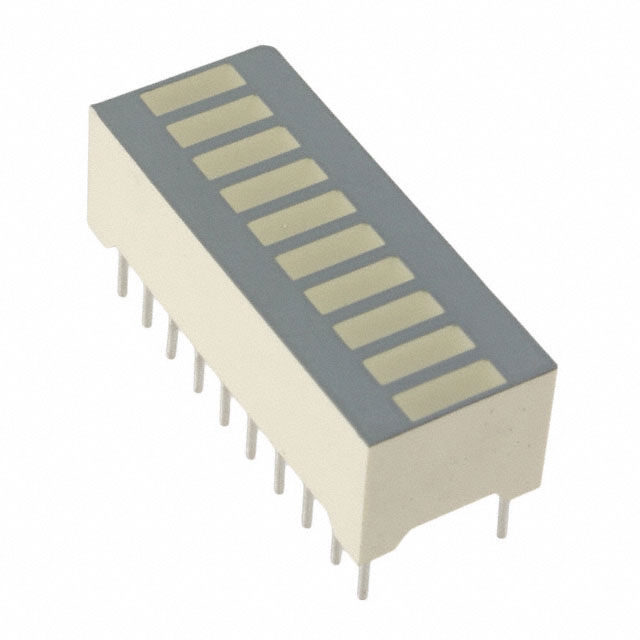

 Kingbright | 36 mcd | 2 V | Through Hole | 590 nm | 175 mA | Yellow | Diffused White | Bar - 10 Wide DIP | Rectangle with Flat Top | 5.08 mm | 1.78 mm |

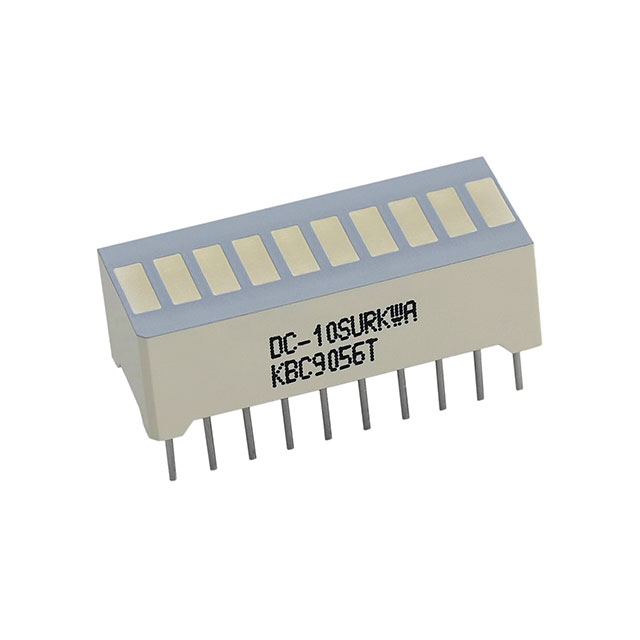

 Kingbright | 25 mcd | 1.95 V | Through Hole | 645 nm | 185 mA | Red (x 10) | Diffused White | Bar - 10 Wide DIP | Rectangle with Flat Top | 5.08 mm | 1.78 mm |

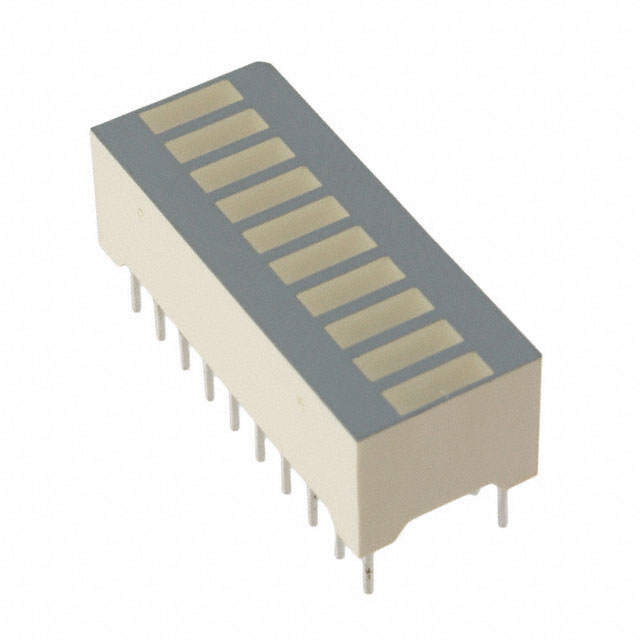

 Kingbright | 3.9 mcd | Through Hole | 565 nm | 25 mA | Green (x 10) | Diffused White | Bar - 10 Wide DIP | ||||
 Kingbright | 9 mcd | 2.1 V | Through Hole | 590 nm | 30 mA | Yellow | Diffused White | Bar - 10 Wide DIP | Rectangle with Flat Top | 5.08 mm | 1.78 mm |

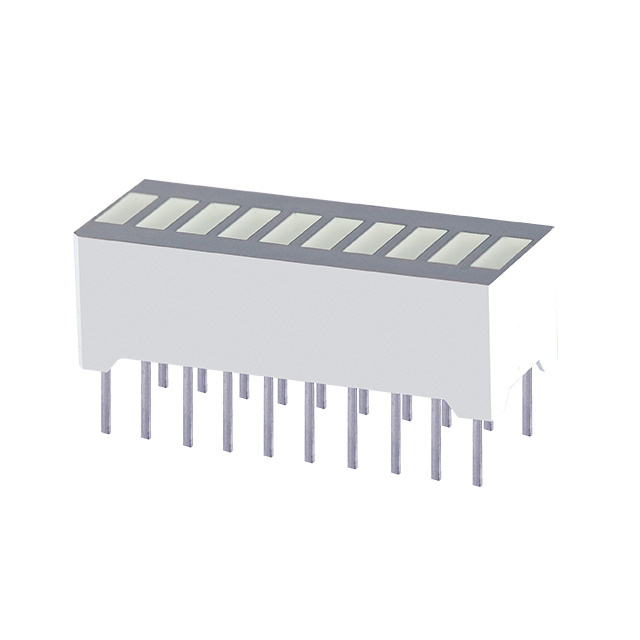

 Kingbright | 8 mcd | 2.1 V | Through Hole | 150 mA | Green (x 10) | Diffused White | Bar - 10 Wide DIP | Rectangle with Flat Top | 5.08 mm | 1.78 mm | |

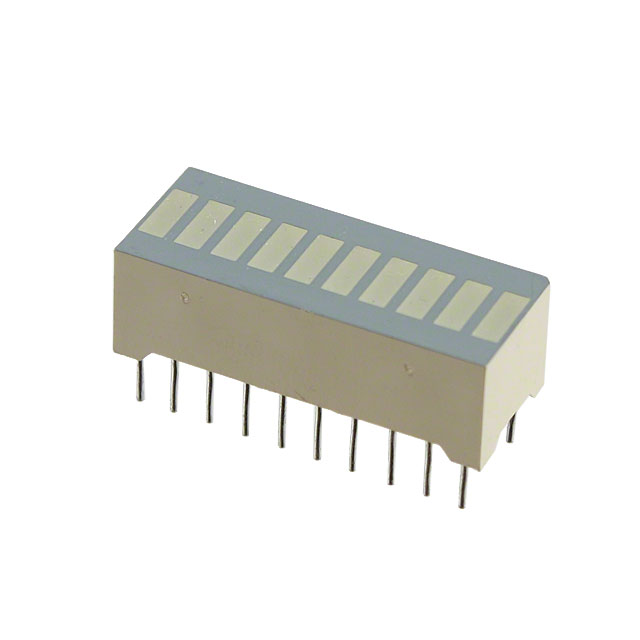

 Kingbright | 30 mcd | 1.85 V | Through Hole | 660 nm | 30 mA | Red (x 10) | Diffused White | Bar - 10 Wide DIP |
