1N4148 Series

Catalog

DIODE, 1V, 0.15A, SMT, SOD-123F ROHS COMPLIANT: YES

Part	Package / Case	Current - Reverse Leakage @ Vr	Speed	Speed	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Operating Temperature - Junction

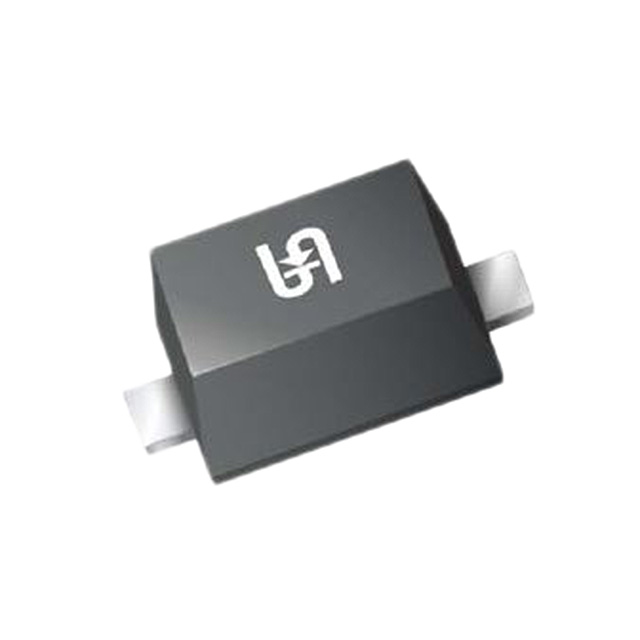

Taiwan Semiconductor Corporation 1N4148W RHG	SOD-123F	5 µA	200 mA	Any Speed	4 pF	4 ns	1 V	150 mA	100 V	Standard	Surface Mount	150 °C	-65 C	SOD-123F

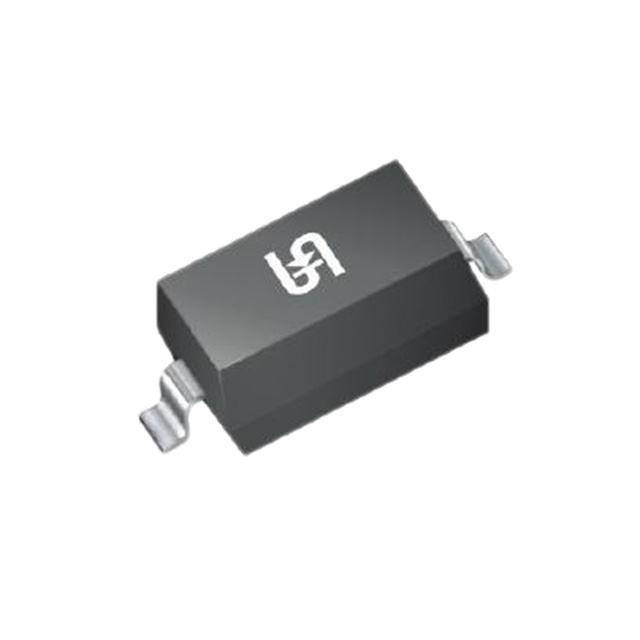

Taiwan Semiconductor Corporation 1N4148WS-G	SC-76 SOD-323	1 µA	200 mA	Any Speed	2 pF	4 ns	1.25 V	150 mA	75 V	Standard	Surface Mount			SOD-323	150 ¯C
Taiwan Semiconductor Corporation 1N4148W-G RHG	SOD-123	2.5 µA	200 mA	Any Speed	2 pF	4 ns	1.25 V	150 mA	100 V	Standard	Surface Mount	150 °C	-65 C	SOD-123
Taiwan Semiconductor Corporation 1N4148	Axial DO-204AH DO-35	5 µA	200 mA	Any Speed	4 pF	4 ns	1 V	150 mA	100 V	Standard	Through Hole	150 °C	-65 C	DO-35
