5175472 Series

Catalog

CONN BTB HD PLUG 80POS R/A SLDR

Part	Type	Number of Rows [custom]	Mounting Type	Number of Positions	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Termination	Features	Connector Type	Contact Finish
TE Connectivity AMP Connectors 5-5175472-9	Board to Board High Density	2	Right Angle Through Hole	80	Center Strip Contacts	30 Áin	0.76 Ám	Solder	Board Lock	Plug	Gold

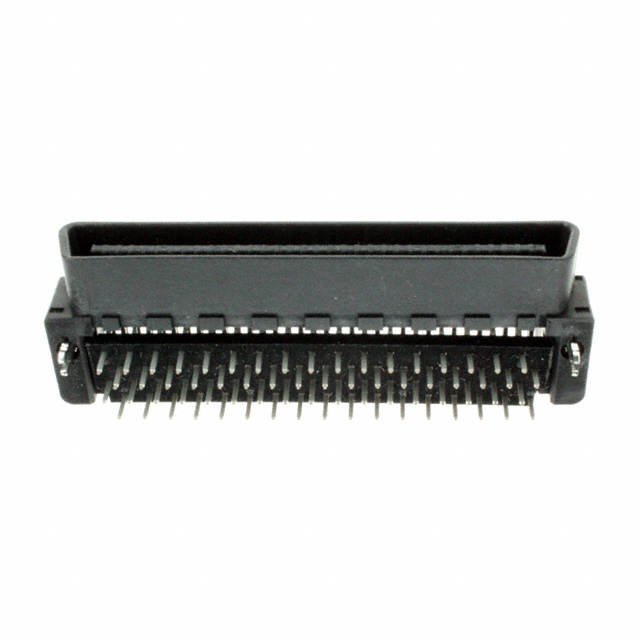

TE Connectivity AMP Connectors 5-5175472-8	Board to Board High Density	2	Right Angle Through Hole	68 positions	Center Strip Contacts	30 Áin	0.76 Ám	Solder	Board Lock	Plug	Gold
TE Connectivity AMP Connectors 6-5175472-0	Board to Board High Density	2	Right Angle Through Hole	100	Center Strip Contacts	30 Áin	0.76 Ám	Solder	Board Lock	Plug	Gold

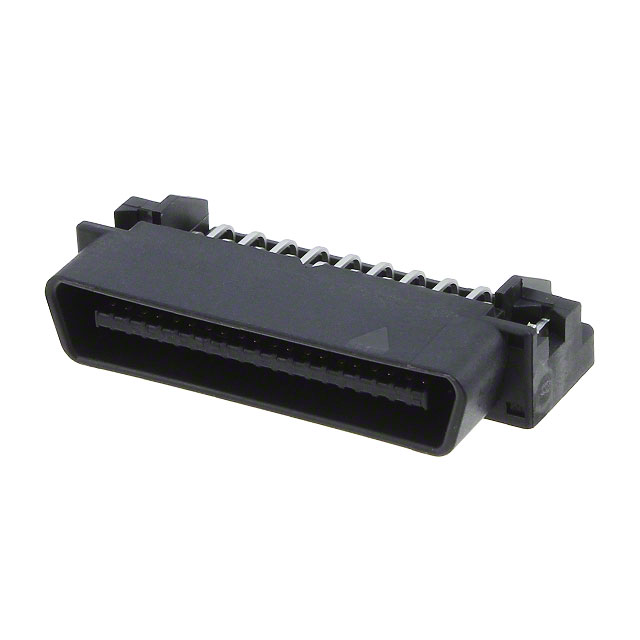

TE Connectivity AMP Connectors 5175472-5	Board to Board High Density	2	Right Angle Through Hole	40	Center Strip Contacts	8 µin	0.203 çm	Solder	Board Lock	Plug	Gold
TE Connectivity AMP Connectors 5175472-4	Board to Board High Density	2	Right Angle Through Hole	36	Center Strip Contacts	8 µin	0.203 çm	Solder	Board Lock	Plug	Gold
TE Connectivity AMP Connectors 5-5175472-5	Board to Board High Density	2	Right Angle Through Hole	40	Center Strip Contacts	30 Áin	0.76 Ám	Solder	Board Lock	Plug	Gold
TE Connectivity AMP Connectors 5-5175472-7	Board to Board High Density	2	Right Angle Through Hole	60	Center Strip Contacts	30 Áin	0.76 Ám	Solder	Board Lock	Plug	Gold
