OSTNR12 Series

Catalog

3.5MM TERM BLOCK HEADER W/ FLANG

Part	Contact Tail Length	Contact Tail Length	Housing Material	Insulation Height [z]	Insulation Height [z]	Contact Material	Material Flammability Rating	Contact Mating Finish	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Termination Style	Voltage - UL	Header Orientation	Mounting Type	Positions Per Level	Number of Levels	Current - UL	Type	Insulation Height	Insulation Height	Features

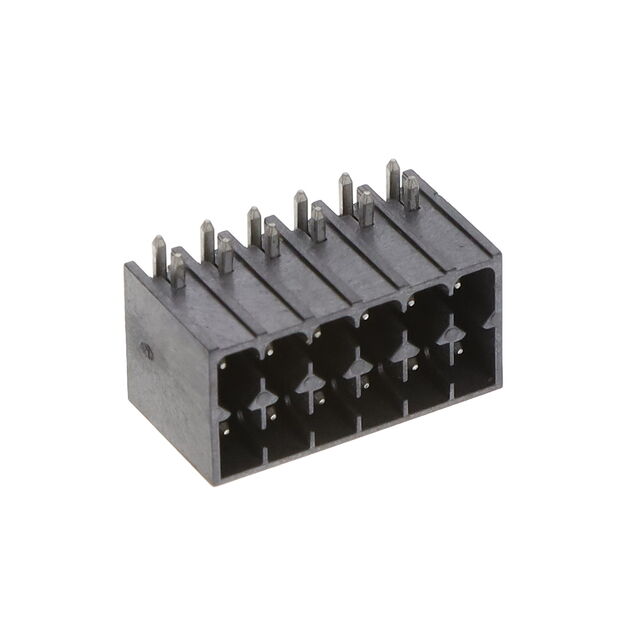

On Shore Technology Inc. OSTNR121101	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	10.8 mm	0.425 in	Copper	UL94 V-0	Tin	3.5 mm	0.138 "	115 °C	-40 C	12	Black	Solder	150 V	90° Right Angle	Through Hole	6	2	8 A	Header Male Pins Shrouded (4 Side)

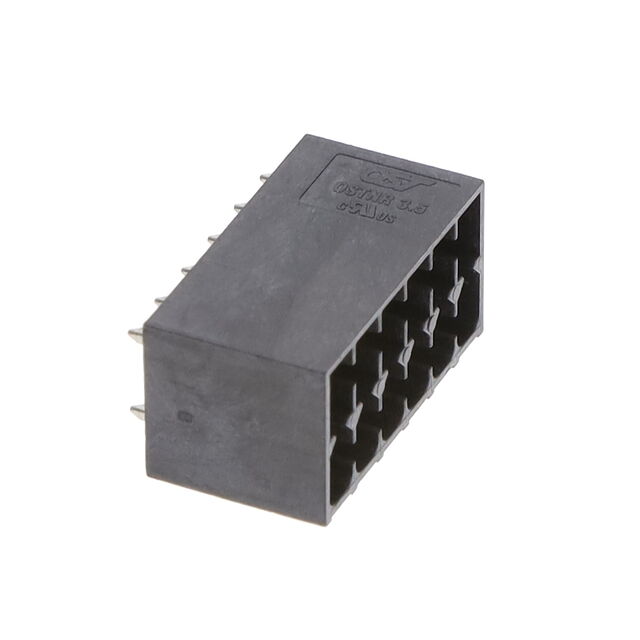

On Shore Technology Inc. OSTNR121100	2 mm	0.079 in	Liquid Crystal Polymer (LCP)			Copper	UL94 V-0	Tin	3.5 mm	0.138 "	115 °C	-40 C	12	Black	Solder	300 V	Vertical	Through Hole	6	2	8 A	Header Male Pins Shrouded (4 Side)	11.6 mm	0.457 in

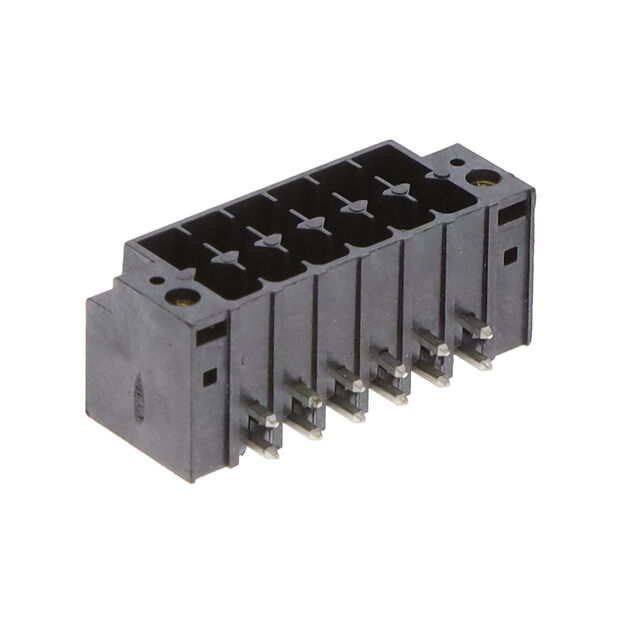

On Shore Technology Inc. OSTNR121201	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	10.8 mm	0.425 in	Copper	UL94 V-0	Tin	3.5 mm	0.138 "	115 °C	-40 C	12	Black	Solder	150 V	90° Right Angle	Through Hole	6	2	8 A	Header Male Pins Shrouded (4 Side)			Mating Flange
