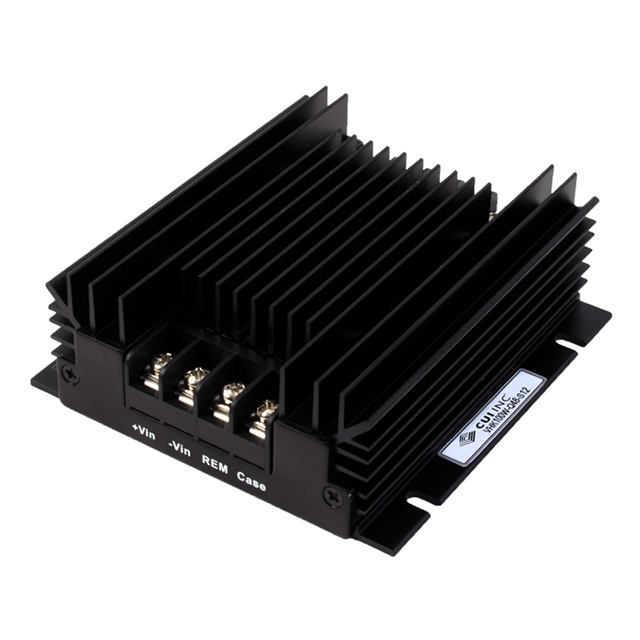

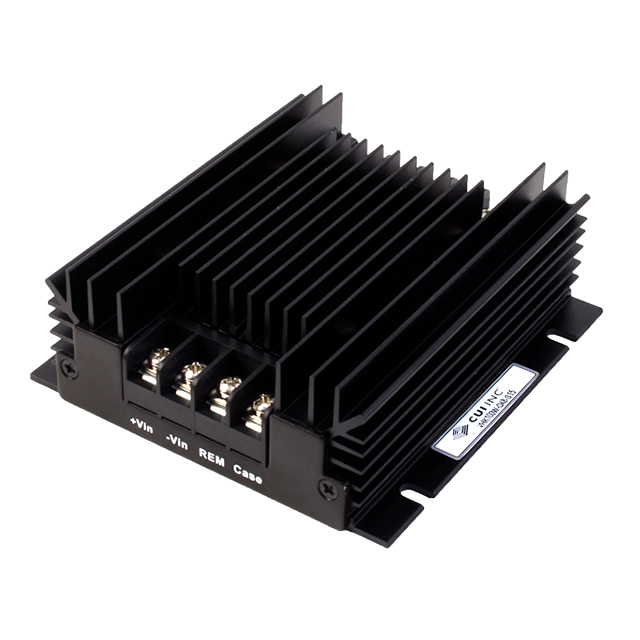

VHK100W Series

Manufacturer: CUI Inc.

Catalog

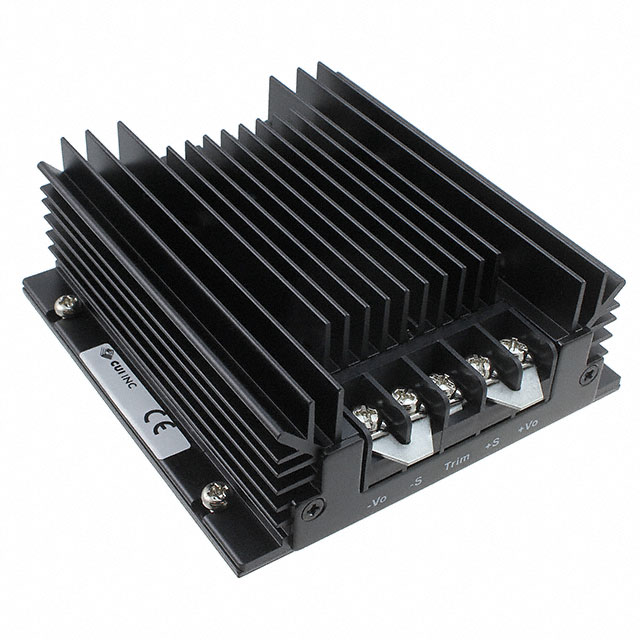

ISOLATED DC/DC CONVERTERS - DIN RAIL MOUNT DC-DC ISOLATED, 66 W, 9-36 VDC INPUT, 3.3 VDC, 20 A, SINGLE REGULATED OUTPUT, DIN-RAIL

Part	Input Type	Number of Outputs	DC Voltage - Input (Min) [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Mounting Type
CUI Inc. VHK100W-Q24-S3R3-DIN	DC	1	9 V	CE	85 °C	-40 C	100 W	20 A	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	36 V	80 %	3.3 V

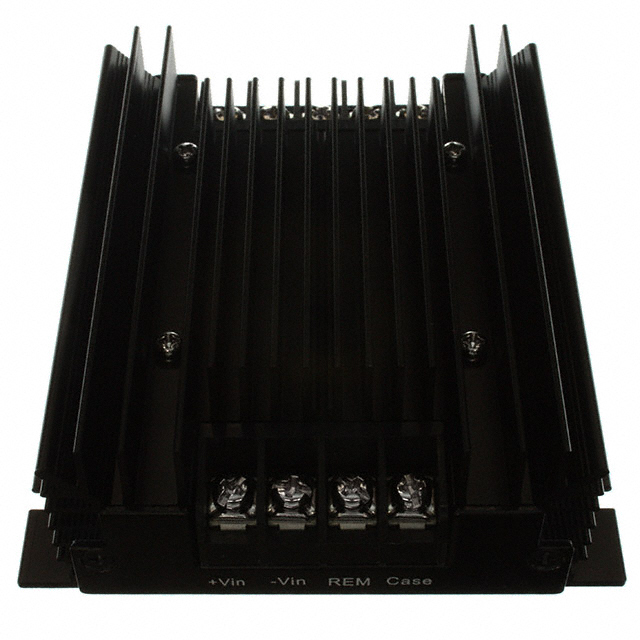

CUI Inc. VHK100W-Q24-S12		1			85 °C	-40 C	100 W	8.3 A	1.5 in	38 mm	107.5 mm	4.23 "	101.8 mm	4.01 in		84 %	12 V	36 V	Enclosed	9 V	Chassis Mount
CUI Inc. VHK100W-Q48-S12		1			85 °C	-40 C	100 W	8.3 A	1.5 in	38 mm	107.5 mm	4.23 "	101.8 mm	4.01 in		85.5 %	12 V	75 V	Enclosed	18 V	Chassis Mount
CUI Inc. VHK100W-Q24-S28		1			85 °C	-40 C	100 W	3.57 A	1.5 in	38.1 mm	107.4 mm	4.23 "	101.9 mm	4.01 in		86 %	28 V	36 V	Enclosed	9 V	Chassis Mount
CUI Inc. VHK100W-Q48-S12-DIN	DC	1	18 V	CE	85 °C	-40 C	100 W	8.3 A	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	75 V	85.5 %	12 V
CUI Inc. VHK100W-Q48-S15		1			85 °C	-40 C	100 W	6.7 A	1.5 in	38 mm	107.5 mm	4.23 "	101.8 mm	4.01 in		86.5 %	15 V	75 V	Enclosed	18 V	Chassis Mount
CUI Inc. VHK100W-Q48-S5-DIN	DC	1	18 V	CE	85 °C	-40 C	100 W	20 A	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	75 V	84.5 %	5 V

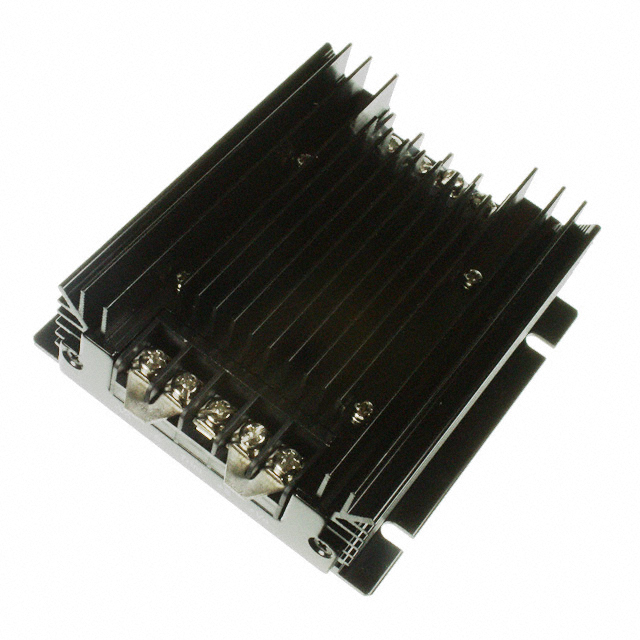

CUI Inc. VHK100W-Q48-S28		1			85 °C	-40 C	100 W	3.57 A	1.5 in	38.1 mm	107.4 mm	4.23 "	101.9 mm	4.01 in		86 %	28 V	75 V	Enclosed	18 V	Chassis Mount
CUI Inc. VHK100W-Q24-S24-DIN	DC	1	9 V	CE	85 °C	-40 C	100 W	4.17 A	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	36 V	85 %	24 V
CUI Inc. VHK100W-Q24-S15-DIN	DC	1	9 V	CE	85 °C	-40 C	100 W	6.7 A	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	36 V	85.5 %	15 V
