79220 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

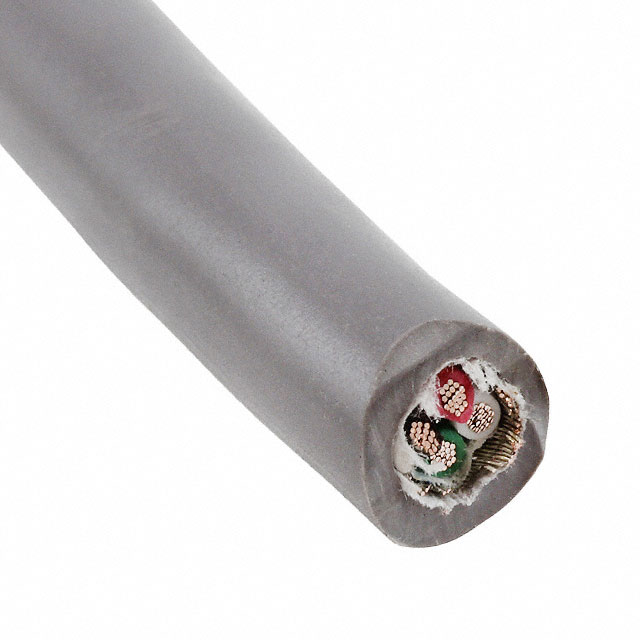

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, SHIELDED, 4 CONDUCTOR, 16 AWG, 1.32 MM², 100 FT, 30.5 M
| Part | Ratings | Shield Material | Jacket (Insulation) Material | Wire Gauge | Shield Type | Cable Type | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Shield Coverage | Number of Conductors | Features | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | ISO 10993 | Copper Tinned Suprashield® | Polyphenylene Ether Modified (mPPE) | 16 AWG | Braid Foil | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | Copper Tinned | 70 % 100 % | 4 | Biological Compatibility | 30.5 m | 100 ft | 0.889 mm | 0.035 in | 600 V | 0.302 in | 7.67 mm | 30 AWG | 26 | Slate | ||
ALPHA WIRE | ISO 10993 | Copper Tinned Suprashield® | Polyphenylene Ether Modified (mPPE) | 16 AWG | Braid Foil | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | Copper Tinned | 70 % 100 % | 4 | Biological Compatibility | 0.889 mm | 0.035 in | 600 V | 0.302 in | 7.67 mm | 30 AWG | 26 | Slate | ||||
ALPHA WIRE | ISO 10993 | Copper Tinned Suprashield® | Polyphenylene Ether Modified (mPPE) | 16 AWG | Braid Foil | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | Copper Tinned | 70 % 100 % | 4 | Biological Compatibility | 0.889 mm | 0.035 in | 600 V | 0.302 in | 7.67 mm | 30 AWG | 26 | Slate | 1000 ft | 304.8 m |
