282837 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLK 22P SIDE ENT 5.08MM PCB

Part	Current	Screw Thread	Clamp Material - Plating	Features	Number of Levels	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Wire Termination	Voltage	Color	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Screw Material - Plating	Mounting Type	Mating Orientation
TE Connectivity Raychem Cable Protection 2-282837-2	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side)	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	22	Brass - Nickel Plated	Through Hole	Horizontal with Board

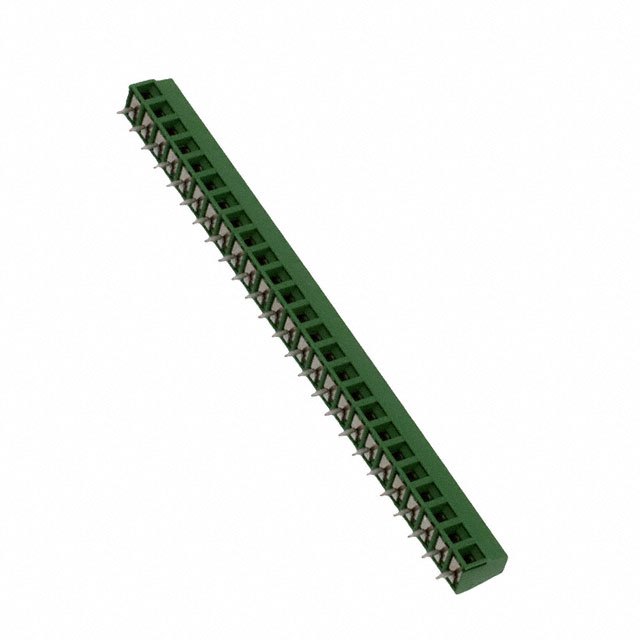

TE Connectivity Raychem Cable Protection 2-282837-5	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side)	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	25	Brass - Nickel Plated	Through Hole	Horizontal with Board

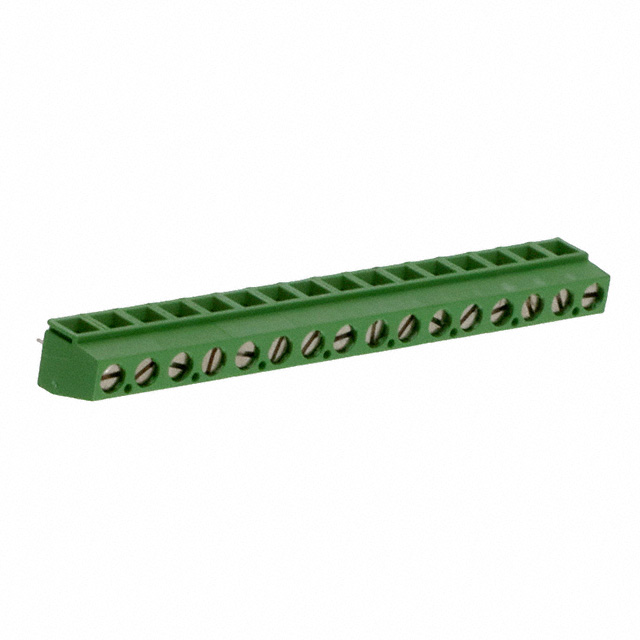

TE Connectivity Raychem Cable Protection 1-282837-6	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side)	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	16	Brass - Nickel Plated	Through Hole	Horizontal with Board

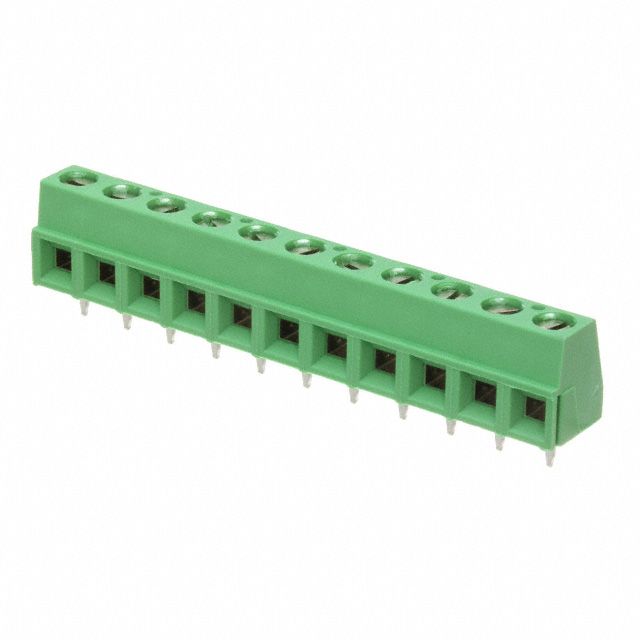

TE Connectivity Raychem Cable Protection 1-282837-1	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side)	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	11	Brass - Nickel Plated	Through Hole	Horizontal with Board

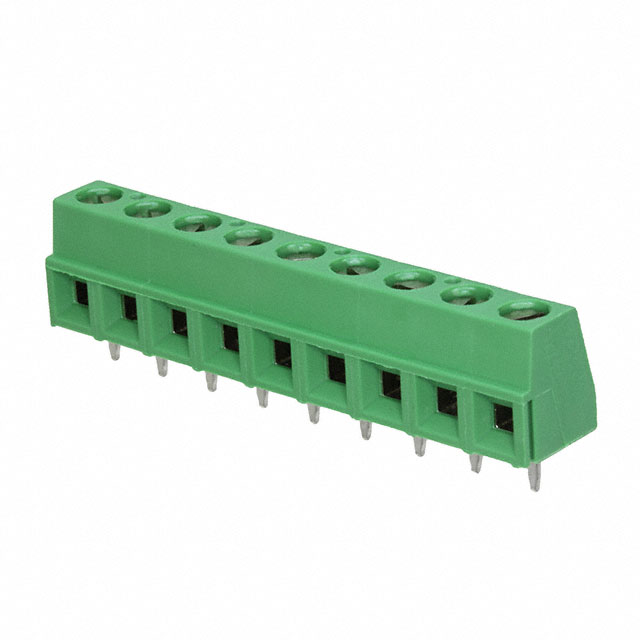

TE Connectivity Raychem Cable Protection 3-282837-3	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side) Positions Stamped	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	9	Brass - Nickel Plated	Through Hole	Horizontal with Board

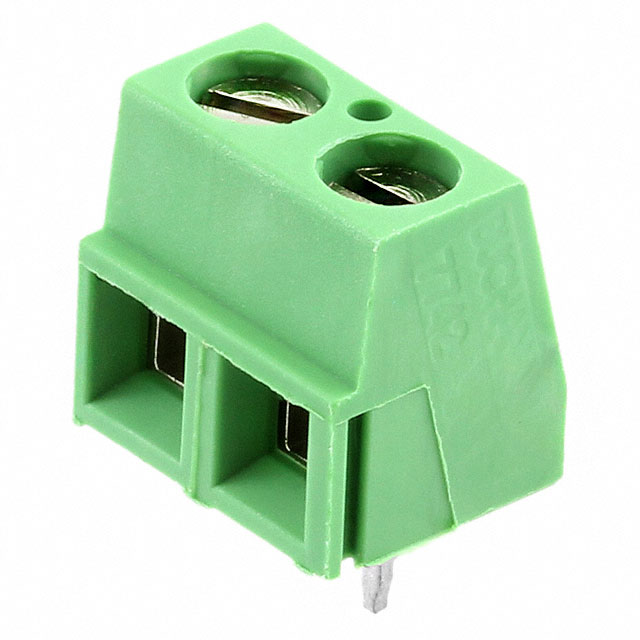

TE Connectivity Raychem Cable Protection 282837-2	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side)	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	2	Brass - Nickel Plated	Through Hole	Horizontal with Board

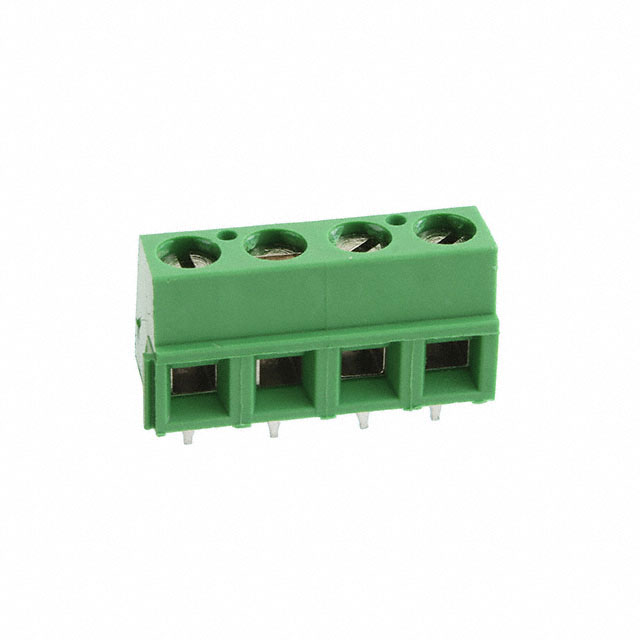

TE Connectivity Raychem Cable Protection 282837-4	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side)	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	4	Brass - Nickel Plated	Through Hole	Horizontal with Board

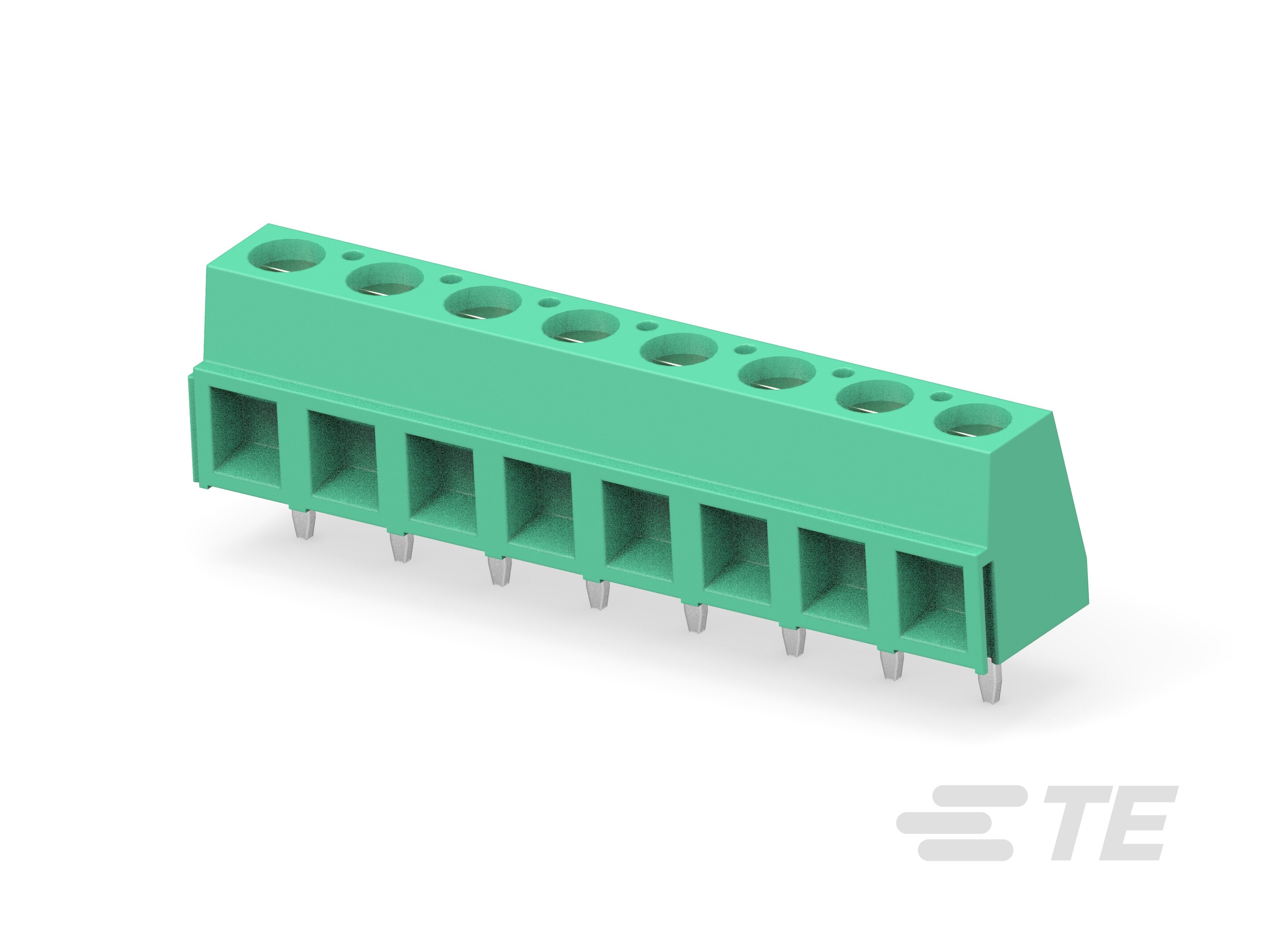

TE Connectivity Raychem Cable Protection 282837-8	13.5 A	M3	Brass - Nickel Plated	Interlocking (Side)	1	6 Lb-In	0.68 Nm	0.2 in	5.08 mm	Brass - Tin Plated	Screw - Rising Cage Clamp	300 V	Green	28 AWG	16 AWG	8	Brass - Nickel Plated	Through Hole	Horizontal with Board
