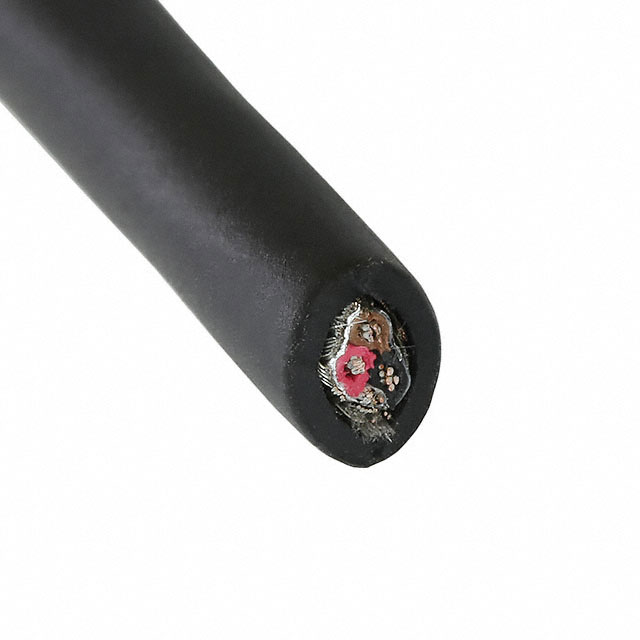

45103 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 3COND 22AWG SHLD 1000'
| Part | Wire Gauge | Voltage | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Number of Conductors | Length | Length | Jacket (Insulation) Material | Conductor Insulation | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket Color | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | 22 AWG | 300 V | ISO 10993 | 7 | 30 AWG | Biological Compatibility Drain Wire Rip Cord | 0.256 in | 6.5 mm | 1.143 mm | 0.045 in | Multi-Conductor | 3 | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | Braid Foil | -50 °C | 125 °C | Copper Tinned | Slate | 70 % 100 % | Copper Tinned Suprashield® |
 ALPHA WIRE | 22 AWG | 300 V | ISO 10993 | 7 | 30 AWG | Biological Compatibility Drain Wire Rip Cord | 0.256 in | 6.5 mm | 1.143 mm | 0.045 in | Multi-Conductor | 3 | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | Braid Foil | -50 °C | 125 °C | Copper Tinned | Black | 70 % 100 % | Copper Tinned Suprashield® |
