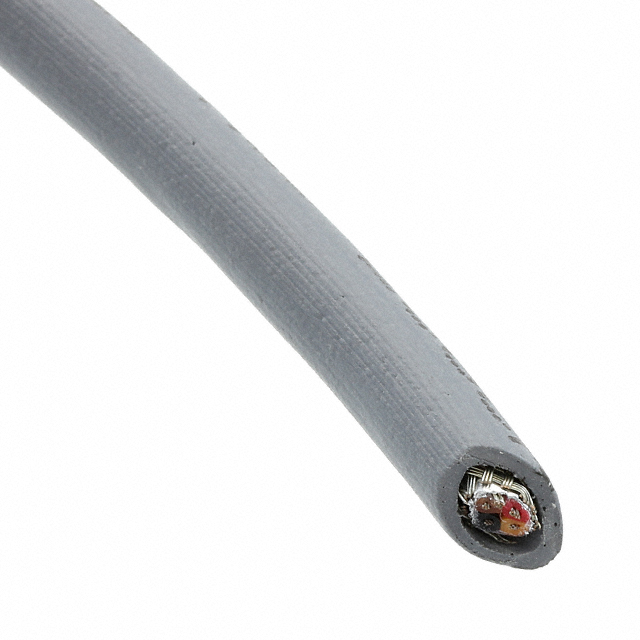

77254 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-CONDUCTOR CABLES 28 AWG 4 CONDUCTOR 600V SUPRASHIELD, MPPE, MPPE 1000 FT SPOOL SLATE
| Part | Shield Material | Shield Coverage | Ratings | Number of Conductors | Voltage | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Conductor Insulation | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | ISO 10993 UL Style 21915 | 4 | 600 V | 28 AWG | Copper Tinned | 0.813 mm | 0.032 in | -50 °C | 105 ░C | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Braid Foil | 0.181 in | 4.6 mm | Polyphenylene Ether Modified (mPPE) | 304.8 m | 1000 ft | 7 | 36 AWG | Biological Compatibility Drain Wire Rip Cord | Slate |
