NQB-468 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 468W

Part	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Voltage - Output 1	Voltage - Input (Max) [Max]	Features	Efficiency	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	Control Features

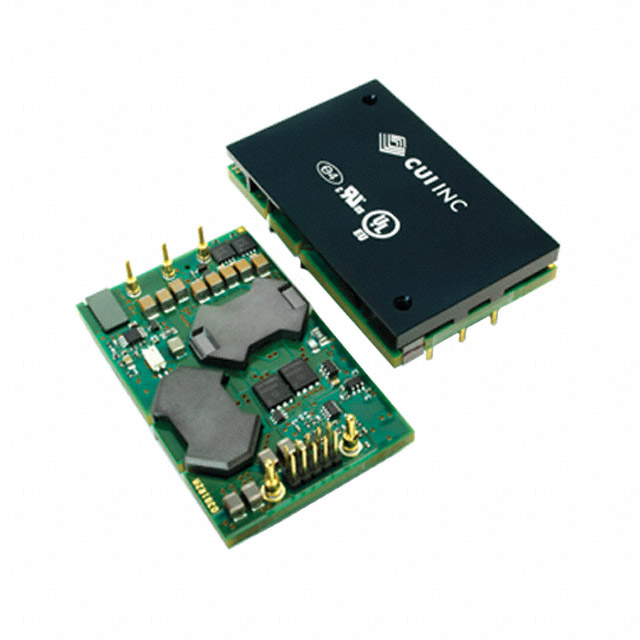

CUI Inc. NQB-468DMA-ANH	468 W	ITE (Commercial)	1.45 in	0.52 in	2.28 "	36.8 mm	57.9 mm	13.2 mm	125 °C	-40 C	Through Hole	Intermediate Bus Converter Digital	12 V	60 V	OCP OTP OVP Remote On/Off UVLO	96.4 %	1/4 Brick 15-DIP Module	39 A	40 V	1	2250 VDC	Active Low Enable

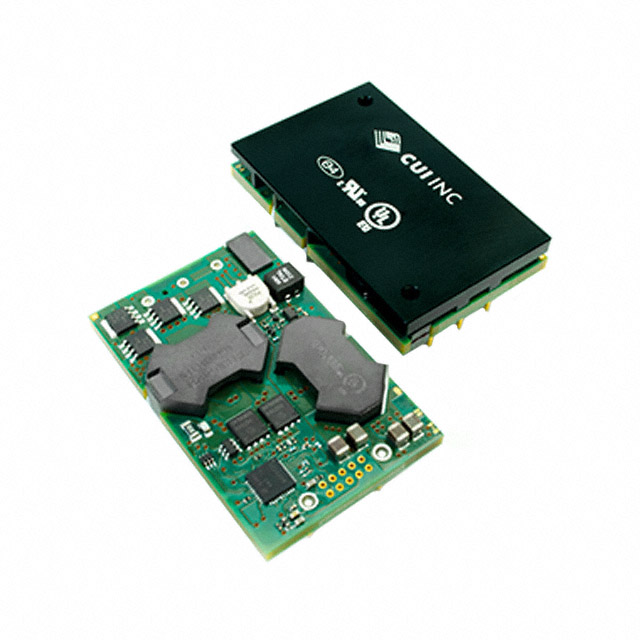

CUI Inc. NQB-468NMA-ANH	468 W	ITE (Commercial)	1.45 in	0.52 in	2.28 "	36.8 mm	57.9 mm	13.2 mm	125 °C	-40 C	Through Hole	Intermediate Bus Converter	12 V	60 V	OCP OTP OVP Remote On/Off UVLO	96.4 %	5-DIP Module 1/4 Brick	39 A	40 V	1	2250 VDC	Active Low Enable
